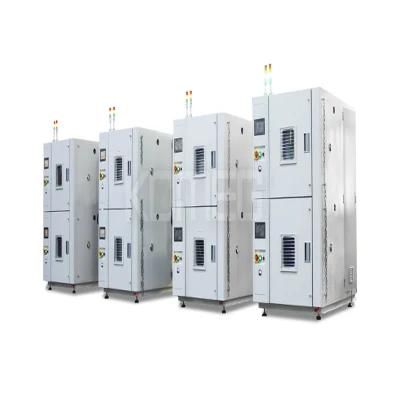

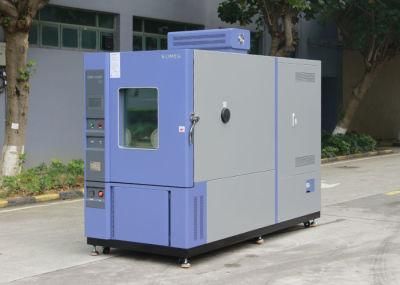

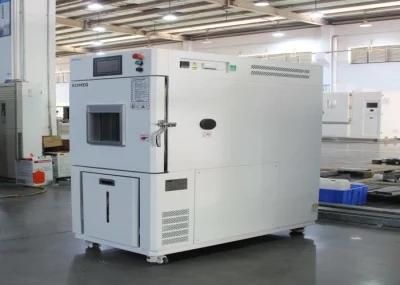

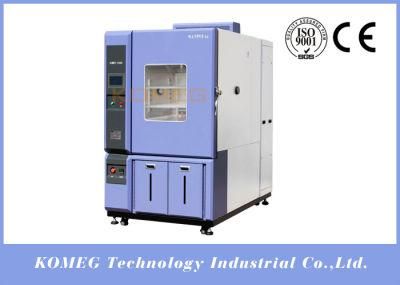

Experienced Staff Supply LED Special Temperature Humidity Test Chamber
Guangdong Komeg Industrial Co., Ltd.- After-sales Service：24 Hours on Line Services
- Warranty：12 Months
- Type：Material Testing Machine
- Weight：500-1000Kg
- Power Source：AC380V
- Application：LED Testing Equipment
Base Info
- Model NO.：KMH-1200L
- Temperature Accuracy：±0.5°c
- Mounting Format：Floor Standing with Universal Wheels
- Transport Package：Strong Plywood Case, Meet International Standards
- Specification：Standard and Customized
- Trademark：KOMEG
- Origin：Dongguan, China
- HS Code：90321000
- Production Capacity：1000 Sets,Year
Description
Main Technical Index1. Chamber body 1.1Workplace Volume IW 1500 × IH 1000 × ID 800 mm
Inner Volume:about 1.2m 3 1.2External Size According to the design 2. Temperature 2.1 Temp. Range -40ºC~ 150ºC 2.2 Temp. Deviation ±2.0ºC 2.3 Temp. Fluctuation ±0.5ºC 2.4 Tem. Uniformity ±2.0ºC 2.5Heating & Cooling Rate +20ºC ↓ -40ºC within60min (no load, ambient temperature is 20ºC)
+20ºC ↑ +100ºC within 45min (no load, ambient temperature is20ºC) 3. Humidity 3.1 Humidity Range 20%R.H.~98%R.H 3.2Temp. &Humidity Range 3.3Humidity Deviation ±3.0%RH(>75%RH)
±5.0%RH(≤75%RH) 3.4Humidity Uniformity ±3.0%RH 3.5 Humidity Fluctuation ±2.0%RH Body Structure Overall structure and chamber consists of three parts: Insulation box, separate refrigeration unit, and electric control cabinet. 1. Insulation Body Out Wall Material: high-quality carbon steel plate with static color spray
Internal Shell Material: SUS304# honed stainless steel plate
Insulation Material: glass wool + rigid polyurethane foam insulation layer 1. Door Double doors, with heating wires installed around the door frame to prevent door frame condensation when at low temperatures 2. Inspection Window Transparent electro thermal coated hollow toughened glass *2 (located on the door)
Visibility Scope: about W460mm×H560mm; including the lamp shadow scope
Multi-hollow electric insulation coated glass prevent condensation effectively 3. Portholes φ50mm *2, located on the left of the body with rubber stopper and plastic cover 4. Lighting Device 11W/AC220V 1 installed on inspection window 5. Condensate Outlet Holes Available for workplace box and refrigeration unit 6. Samples Holder Two layers of Stainless Steel Samples Holder
load bearing (uniform distribution) 50KG/ layer 7. Mobile Castors Mobile Castors*4 , equipped with feet cup 8. Switch Gear Total power supply circuit breaker, over-temperature protection 9. Water Supply System Water Pump automatically supplywater Air Conditioning System 1. Control Mode Forced ventilation loops design, Balanced Temperature & Humidity Control System (BTHC)
2. Air Conditioning Device Top-mounted air diffuser to ensure inside uniformity of temperature and humidity et
Long axis centrifugal fan, evaporators, heaters, humidifiers was installed on air conditioning box 3. Heating up Quality nickel-chromium alloy wire electric heaters,
Non-contact control mode(SRR) 4. Cooling down Sine wave pattern aluminum finned copper tube air heat exchange (air-cooled ) 5. Water Supply Inner water supply system(damp-heat type) 6. Humidifying (damp-heat type) Basin heated humidification
Stainless steel sheathed heater
Heater control: non-contact period, such as pulse width modulation, SSR(Solid State Relay)
Water level control devices, anti-dry unit heater 7. Compressor France Tecumseh Compressor 8. Throttling Device Thermal expansion valve & capillary 9. Refrigerant Environmental friendly high-temperature level refrigerant: R404a 10. Part Brand
11. Refrigerating technology Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable
water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber. Control System 1. Curve Recording Function Pt100Platinum Resistance 2. Controller KOMEG Programmable KM-3166LCD Touch Screen Controller with PID control parameters setting
3. Display Function Temperature and humidity settings (SV) Practical (PV) value can be displayed directly,
Execution of the program can display numbers, paragraphs, remaining time and cycles, running time display,
Program editing and graphic curve display,
Fixed or program operation status display,
7-inch TFT display screen. 4. Display Resolution Temperature: + 0.01ºC; Humidity: + 0.1%; time: 1min. 5. Setting Range Temperature can be adjusted based on the working temp. range of the equipment (the upper limit: +5ºC, the lower limit : -5ºC) 6. Operation Mode Programmable running, constant running and booking boot 7. Setting Mode Touch Mode Input 8. Communication Interface Data collection and curve display when connected to a computer
Can be used as monitoring and remote control system
Multiple machines synchronization control available 9. U Disk Memory Card 1G-8G available for downloading historical curve, data, pluggable 10. Data Collection RAM with battery protection, setting(SV), Practical(PV) and sampling time can be saved;
Maximum historical data memory storage is 90 days (when the sampling time is 1 min) 11. Power Off Memory Function Power recovery mode can be set as hot start, cold start and stop 12. Pre-set Function Boot time can be set freely and machine runs automatically when turning on power 13. Software Environment Windows 2000or Windows XP 14. Network Connection Can be connected to Ethernet via professional software, remote control & assistance function and data collection can be achieved through network, , multiple machine can be controlled simultaneously 15. Accessory (Standard configuration) Fault alarm and cause handling prompts, power failure protection, the temperature upper and lower limit protection, timer function (automatic start and automatic stop running)
Inner Volume:about 1.2m 3
+20ºC ↑ +100ºC within 45min (no load, ambient temperature is20ºC)
±5.0%RH(≤75%RH)
Internal Shell Material: SUS304# honed stainless steel plate
Insulation Material: glass wool + rigid polyurethane foam insulation layer
Visibility Scope: about W460mm×H560mm; including the lamp shadow scope
Multi-hollow electric insulation coated glass prevent condensation effectively
load bearing (uniform distribution) 50KG/ layer
Long axis centrifugal fan, evaporators, heaters, humidifiers was installed on air conditioning box
Non-contact control mode(SRR)
Stainless steel sheathed heater
Heater control: non-contact period, such as pulse width modulation, SSR(Solid State Relay)
Water level control devices, anti-dry unit heater
| Parts | Brand | Remarks |
| Compressor | Tecumseh | Hermetic piston compressor with low noise |
| Oil Separator | ALCO, AC&R, ESK | |
| Evaporator condenser (plate heat exchanger) | DANFOSS | |
| Pressure Relay | DANFOSS RANCO | |
| Condenser (Plate) | DANFOSS | |
| Condenser | Yongqiang | |
| Drying Screen Program | DANFOSS SPORLAN | |
| Capillary | KOMEG | |
| Expansion Valve | DANFOSS, SPORLAN | |
| Electromagnetic Valve | SAGINOMIYA& CASTEL | |
| Exhaust Gas Pressure Regulating valve | SAGINOMIYA | |
| Condensing Pressure Regulating Valve | SAGINOMIYA DANFOSS | |
| Note: Two options listed is for alternate choice and backup purpose | ||
water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber.
Execution of the program can display numbers, paragraphs, remaining time and cycles, running time display,
Program editing and graphic curve display,
Fixed or program operation status display,
7-inch TFT display screen.
Can be used as monitoring and remote control system
Multiple machines synchronization control available
Maximum historical data memory storage is 90 days (when the sampling time is 1 min)
