Consumer Battery Internal Short Circuit Testing Equipment
GUANGDONG BELL EXPERIMENT EQUIPMENT CO., LTD.- After-sales Service：12 Months
- Power Supply：AC220V
- Certification：CE, ISO
- Warranty：1 Year
- Usage：for Battery Safety Testing
- Customized：Yes
Base Info
- Model NO.：BE-6045W
- Testing Before Delivery：Yes
- Transport Package：Each Set Protected with Resin Fiber and PP Film, T
- Trademark：DGBELL
- Origin：Guangdong China
- HS Code：9031809090
- Production Capacity：100set ,Month
Description
Model
Temperature Range
-10ºC ~ +80ºC(Controllable)
Temperature Rising Rate
Ave.3ºC/min(-10ºC to 80ºC,Nonlinear No-load)
Temperature Cooling Rate
Ave.1ºC/min(80ºC to 10ºC,Nonlinear No-load)
Inner Chamber Dimension
W600 X H750 X D500 MM
External Chamber Dimension
W1170 X H1850 X D1020MM
Inner Chamber Material
Stainless steel with mirror-finish, bottom reinforcement
External Chamber Material
Cold-Rolled Steel with paint-baked coating
Observation Window
The single-opening door is accompanied by a 3-layer vacuum large glass observation window (W430mm x H 580mm); The door frame is equipped with electric heating (automatic adjustment) anti-frost, anti-condensation device; so that you can clearly observe the Test status of the test sample in the box through the observation window at any time.
Internal Short Circuit Technical Parameters:
Max. Loading
200KG
Resolution
1/10000
Force Accuracy
≤0.5%
Displacement resolution
1/1000
Accuracy of displacement
≤0.5%
Speed Range
0.01-5MM/S
Effective Range
0 ~ 200mm
Max. Test Area
300X300MM (Can be customized)
Voltage Range
0-60V
Voltage Resolution
5mV
Voltage Acquisition Frequency
100HZ
Control System
Safety Protection

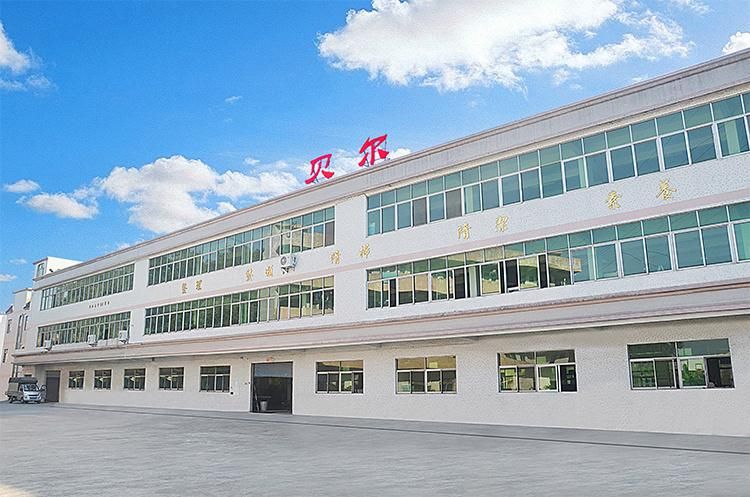

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
15+ years experience in test chambers manufacturing, High performance for your projects.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
FAQQ1 : Can you customize the product?
A: Yes, we can customize any products according to requirements. Hot selling lab electronic
temperature humidity cabinet/Environmental climate test chamber/Car Battery Safety Test Chamber also can be customized.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion, just be patiently to tell us the information
about the parameters you require.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping,
you just need link power in your lab, then you can start to operate.
Secondly, we had detailed operation manual with chamber , any problems you can find and solve in it.
Thirdly, some customized chambers we should install and teach your team to operate .
