• Model NO.：HME-1200
• DC Voltage Output：6X160V
• Binary Input：8 Channels
• Binary Output：4 Pairs
• Operation System：Inbuild Windows
• Remote Control：Win10, Win7, Win XP
• Transport Package：Standard Export Wooden Package
• Specification：420*360*210mm3
• Trademark：HME,OEM
• Origin：Hubei China
• HS Code：9030820000
• Production Capacity：500set,Year

Product Description

Setting Range

6-Phase AC(L-N)

6x0…40A

3-Phase AC(L-N)

3x0…80A

1-Phase AC(LL-LN)

1x0…240A

DC(L-N)

6x0…±20 A

Power

6-Phase AC(L-N)

6x300VA At 40A

3-Phase AC(L-N)

3x450VA At 80A

1-Phase AC(LL-LN)

1x1000VA At 240A

DC(L-N)

6x120VA At 20A

Accuracy

AC: ±1mA(≤0.2A), ≤0.1% (0.2~40A)

DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~20A)

Resolution

1mA

Setting Range

6-Phase AC(L-N)

6x0…150V

3-Phase AC(L-N)

3x0…300V

DC(L-N)

6x0…±175V

Power

6-Phase AC(L-N)

6x80VA At 150V

3-Phase AC(L-N)

3x100VA At 300V

DC(L-N)

6x80VA At 175V

Accuracy

AC: ±2mV(0.2~2V), ≤0.1% (2~150V)

DC: ±10mV (0.5~5V), ≤0.2% (5~175V)

Resolution

1mV

Auxiliary DCFrequency

Range: 0~1200Hz

Accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1200Hz)

Resolution: 0.001Hz

Phase

Range: -360° ~+360°

Accuracy: 0.1°

Resolution: 0.01°

Harmonic

Superposition Order: 2~24 Times

Distortion: ≤0.5%

Certifications

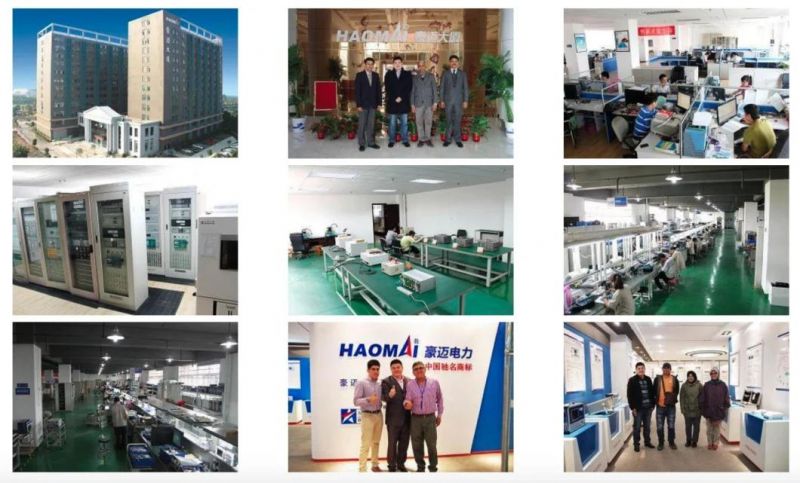

Company Profile

Our Advantages
