• Model NO.：GDJ-5S
• Accuracy：1%
• Repeatibility：0.5%
• Optional Parts：Spindle 0#; Adapter for Little Sample; Water Bath
• Transport Package：Wooden Case for Digital Rotational Viscometer
• Trademark：GOLD
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GDJ-5S Accuracy 1% Repeatibility 0.5% Optional Parts Spindle 0#; Adapter for Little Sample; Water Bath Transport Package Wooden Case for Digital Rotational Viscometer Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

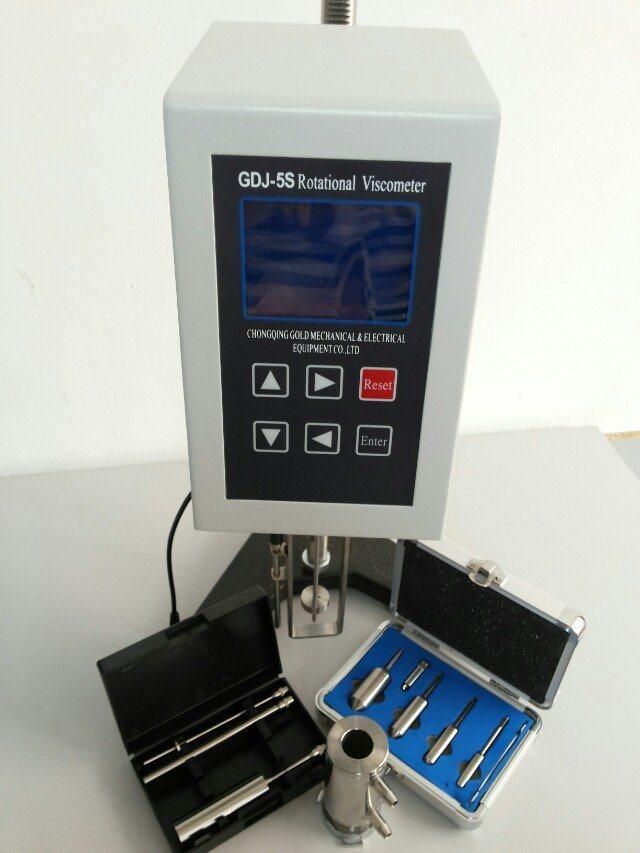

GDJ-5S Digital Viscosity Meter for Paint

Summary

  Adopting advanced mechanical design technology, manufacture technique and microcomputer controlling technology, it can collect data accurately. Using white background light and ultra-bright LCD, it can show test data clearly.

  Our digital viscosity meter has the characteristics of high sensitivity, reliability, convenience and good looking. It is used to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids.

digital viscosity meter can be widely used to determine the viscosity of liquids such as greases, oil paints, plastics, pharmaceutics, coatings, adhesives, detergents, and other fluids.



Main technical specifications

1. Measurement range: 10 mPa•s~100000 mPa•s

2. Spindle: No.1~No.4, total four spindles

3. Rotation speed: 6 RPM, 12 RPM, 30 RPM, and 60 RPM

4. Measuring accuracy: ±1% (F•S)

5. Power supply: AC 220 V±10%, 50 Hz±10%

6. Working environment: Ambient temp.: 5 ºC~35 ºC, Relative humidity: ≤ 80%



Optional accessories

1. HWY-10 Circulatory water bath

2. Double-layer sample cup

3. No.0 spindle

4.Small sample adaptor

Related products

Type	GDJ-1B	GDJ-5S	GDJ-8S	GDJ-1E
Range(mPa.s)	10~2,000,000	10~100,000	10~2,000,000	1~6,000,000
RPM	0.3/0.6/1.5/3/6/12/30/60	6/12/30/60	0.3/0.6/1.5/3/6/12/30/60	0.1~100, Stepless speed regulation
Spindle	1#,2#,3#,4#	1#,2#,3#,4#	1#,2#,3#,4#	0#,1#,2#,3#,4#
Accuracy	±1% Full Scale F.S.	±1% Full Scale F.S.	±1% Full Scale F.S.	±1% Full Scale F.S.
Repeatibility	±0.5%	±0.5%	±0.5%	±0.5%
Output	Microprinter, Application software	Optional printer	Optional printer	Microprinter, Application software
Optional parts	Spindle 0#(low viscosity adapter) Adapter for little sample HWY-10 HWY-501 Water bath Glassware constant temperature cup	Spindle 0#(low viscosity adapter) Adapter for little sample HWY-10 HWY-501 Water bath Glassware constant temperature cup	Spindle 0#(low viscosity adapter) Adapter for little sample HWY-10 HWY-501 Water bath Glassware constant temperature cup	Adapter for little sample HWY-10 HWY-501 Water bath
