350A Big Current Polymer Battery Pouch Cell Testing Clamp
XIAMEN TOB NEW ENERGY TECHNOLOGY CO., LTD.- After-sales Service：Life Time Support
- Warranty：1 Year
- Type：Battery Test Clamp
- Application：Lithium-ion Battery
- Transport Package：Standard Packing
- Trademark：TOB
Base Info
- Model NO.：TOB-10025-300
- Origin：China
Description
Basic Info.
Model NO. TOB-10025-300 Origin ChinaProduct Description

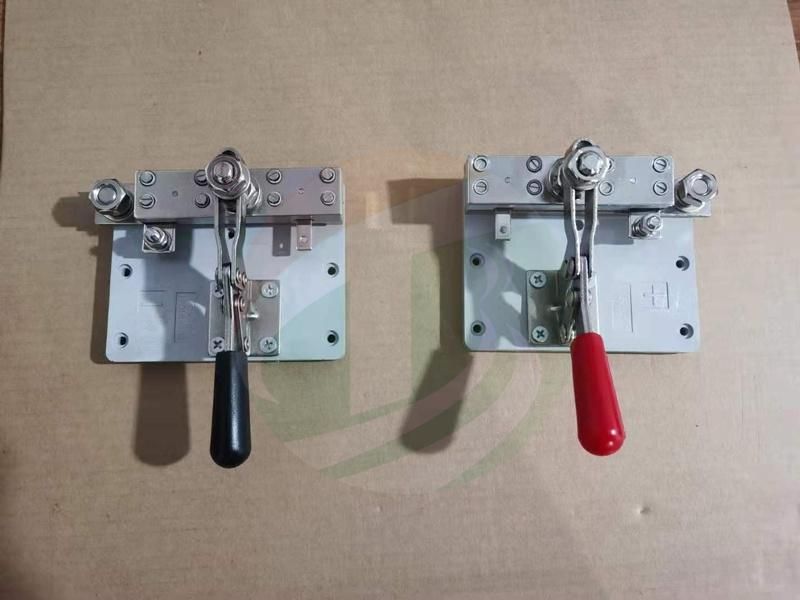

350A Big Current Polymer Battery Pouch Cell Testing Clamp
| Model | 10025-300 |
| Working temperature range | -55°C~155°C |
| Current and Voltage | ≤350A, ≤500V |
| Base material | Polysulfone, brass, stainless steel |
| Plating | Ni (3~5um) |
| Contact resistance | ≤5mΩ |
| Insulation resistance | 500VDC≥1X10^9Ω |
| Humidity | ≤90% |
| Working life | ≥30000 times, ≥10000 hours |
| Unit & Tolerance | mm, ±0.05mm |
