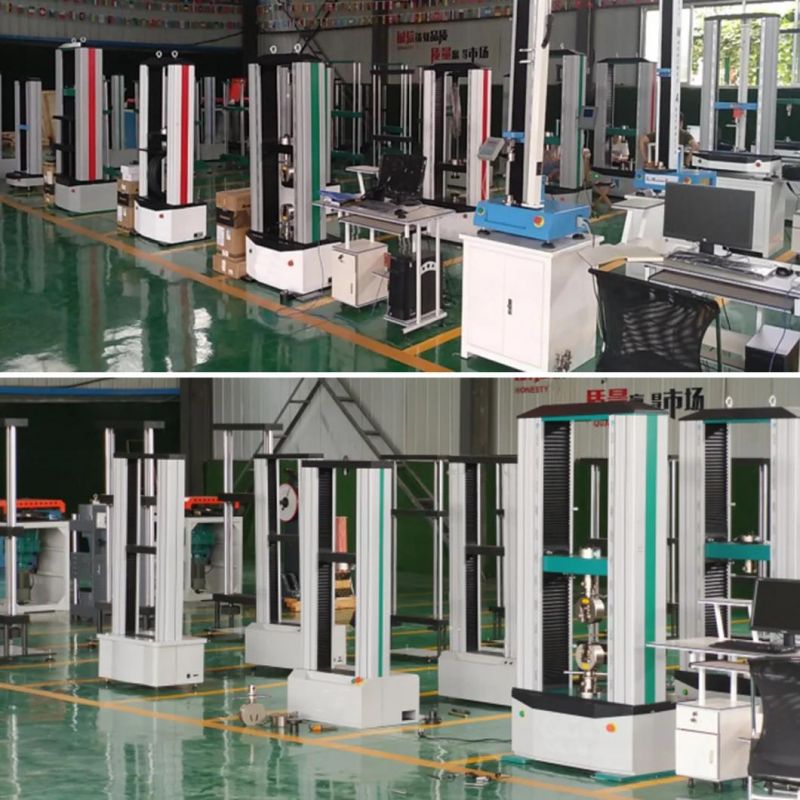

100kn Computer and Servo Control Tensile Bending Compression Testing Machine

EBPu Electromechanical Equipment (Zhejiang) Co., Ltd.
  • Max Diameter of Workpiece：Customized
  • Mass Scope of Workpiece：Customized
  • Type：Universal Testing Machine
  • Maxcapacity：100kn
  • Accuracy Grade：1 or 0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：UTM-100
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Servo Motor Control
  • Product Name：100kn Computer and Servo Control Tensile Bending
  • Function：Tensile , Compression , Bending , Yield Strength
  • Crosshead Travel：1000mm
  • Effective Tensile Space：750mm
  • Effective Test Width：500mm
  • Load Resolution：1,300000
  • Deformation Resolution：1,500000
  • Load Control Speed：0.01 - 50 Kn,S
  • Transport Package：Plywood Box
  • Specification：Tensile testing, compress testing, bending testing
  • Trademark：EBP
  • Origin：Zhejiang, China
  • HS Code：9024101000
  • Production Capacity：90 Sets Per Month

Description

3 point bending fixture (optional)1 set
6. Data Acquisition system
61. The data acquisition system of machine consists of two high precision A/D conversion channel and the maximum resolution should be 1/300000 (minimum)
6.2. USB powered data -logger with USB 2.0 and RS- 232 pc interface, 5-keys joystick, 2MB RAM, Automatic recognition facility, Internal signal generator and 12-bit conversion resolution

7. Software
7.1 Batch and report processing program facility in doc and exl format
7.2 The software is fully compliance with the corresponding international standards like ISO, ASTM and GB standards
