• Model NO.：MS2670FAN
• Weight：0-100Kg
• Power Source：AC220V
• Temperature：0-40ºC
• Humidity：<=75%
• Output Voltage：0-5kv<=+,-3%
• Leak Current Range：0-100mA, Customized
• Max Output Power：1W (1.0kv, 1.0mA)
• Interface：RS232
• Transport Package：Wooden Box with Foam Inside
• Trademark：HMDQ
• Origin：Hubei, China(Mainland)

Basic Info.

Model NO. MS2670FAN Weight 0-100Kg Power Source AC220V Temperature 0-40ºC Humidity <=75% Output Voltage 0-5kv<=+/-3% Leak Current Range 0-100mA, Customized Max Output Power 1W (1.0kv, 1.0mA) Interface RS232 Transport Package Wooden Box with Foam Inside Trademark HMDQ Origin Hubei, China(Mainland)

Product Description

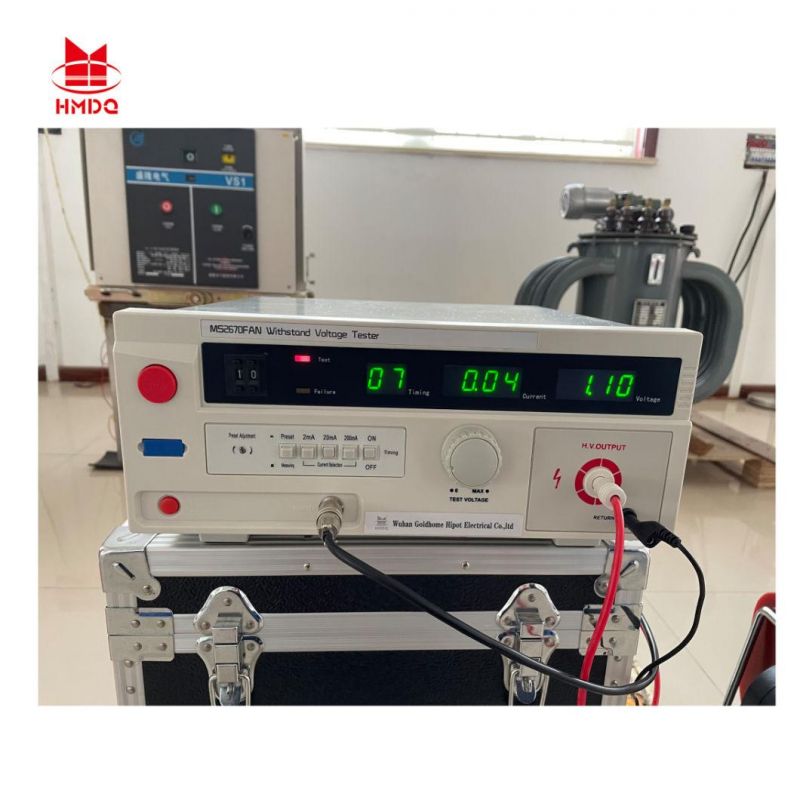

AC DC High voltage test equipment

1.AC DC withstanding voltage tester Introduction
Withstand voltage tester is an ac high voltage safety measurement instrument, widely used in electronic instruments, electronic equipment, electronic components, electrical equipment, bakelite appliances, rubber, high voltage cable and motor withstand voltage test, also applicable to household appliances withstand voltage test.

Hot tags:withstand voltage tester. Ac hipot tester, high voltage tester, ac high voltage test equipment,ac hipot instruments, ac dielectric test set supplier

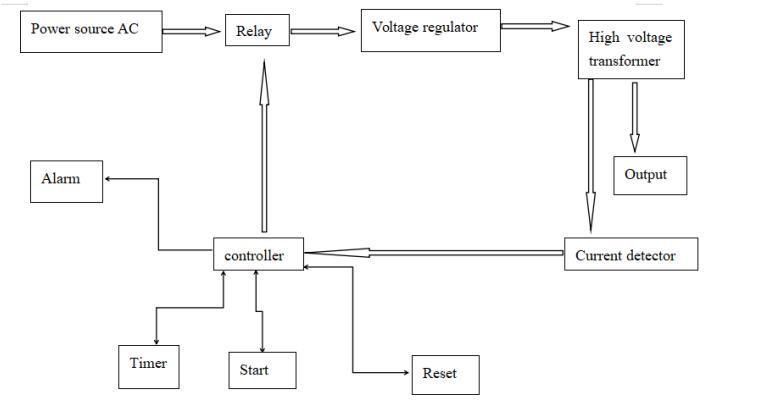

II. AC withstand voltage tester Working Principle





III.  AC hipot tester main technical parameter 1, Output Testing voltage:AC: 0.5 kV~5kV  ±3%
2,leakage current setting range :AC:0.2~200(mA)  can be setted adjustable.
3,Leakage current setting accuracy:± 3%
4,Output waveform:50Hz sine waveform.
5,Time setting:1~99(s)±5%  manual∞  can be setted .
6,Power supply:AC:220V±10%  50Hz±2Hz.
7,Environment requirement: Humidity ≤75%RH;Environment:0ºC~40ºC.
There is  no strong electromagnetic field interference source in surrounding, no lot of dust and corrosion gas, good ventilation.
8,Power dissipation :quiescent dissipation <30VA.
9, Dimension :352mm*161mm*380mm
