• Model NO.：WDW-50
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Computer
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：None
• Delivery Time：3 Days After Get Tt Payment
• Standard：ASTM, GB, ISO, DIN
• Certification：ISO Ce
• Transport Package：Standard Export Packing
• Specification：700*450*1775mm
• Trademark：HST
• Origin：China
• HS Code：9024101000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. WDW-50 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Computer Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position None Delivery Time 3 Days After Get Tt Payment Standard ASTM, GB, ISO, DIN Certification ISO Ce Transport Package Standard Export Packing Specification 700*450*1775mm Trademark HST Origin China HS Code 9024101000 Production Capacity 200 Sets Per Month

Product Description

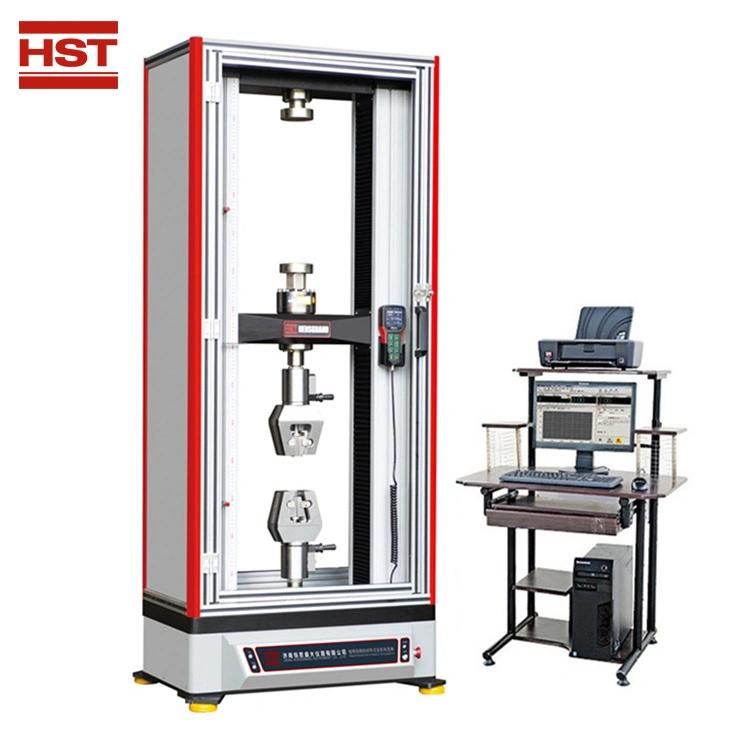

Computer Servo Control Universal Tensile Testing Machine with ASTM standard



1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:

Model	WDW-50
Max. Load	50KN
Structure	Four-column Floor Model (Upper Is Tensile And Lower Is Compression)
Control Method	Computer Control
Load Accuracy	1 Class
Load Range	2%~100% FS
Resolution	1/300000
Measuring Range Of  Deformation	2%~100%
Accuracy Indication  Of Deformation	≤±1%
Disp. Indicating Relative Error	≤±1%
Displacement  Resolution	0.04um
Adjusting Range Of  Control Rate Of Load	0.005~5%FS/S
Scope Of Consistent  Load Deformation And Displacement Control	0.5%~100%FS
Accuracy Of Consistent  Load Deformation And  Displacement Control	Preset value ≥ 10%FN, within the ±0.1% of preset value; Preset value < 10%FN, within the ±1% of preset value.
Tensile Space	700mm (Can be customized)
Compression Space	700mm (Can be customized)

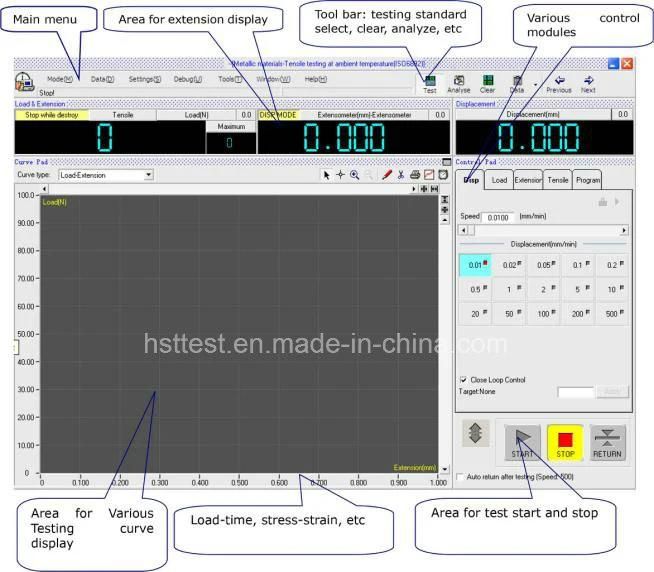

Software Interface:


Load-extension, Force - time, force - displacement ect. more curve to choose.

Packaging and deliverying:
Packaging Details:
1. inner package: dust-proof plastic bag
2. outer package: standard export wooden case with pallet
3. suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer's requirements.)
4. Packing size:
5. Gross weight:
Delivery Detail:  7-15 working days
