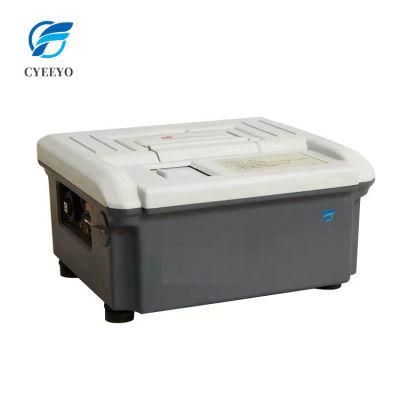

wireless insulator tester Insulator Voltage Distribution Tester
HV Hipot Electric Co., Ltd.- Warranty：1 year
- Type：insulator tester
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
Base Info
- Model NO.：GDJW-40B
- Control：Computer Control
- Weight：1kg
- Power Source：AC220V
- Oil Cylinder Position：no
- Working voltage：35 - 1000kV
- Voltage measurement range：0 - 40kV
- Measurement error：≤±1%
- Resolution：0.01kV
- Sampling rate：10 times,second
- Working temperature：-35ºC---+60ºC
- Transport Package：Standard Export Wooden Box
- Specification：400*315*135mm
- Trademark：HV Hipot
- Origin：Wuhan, China
- HS Code：9030899090
- Production Capacity：600 PCS
Description
Working voltage
35 - 1000kV (applicable for different voltage grades)
Voltage measurement range
0 - 40kV (can be customized)
Measurement error
≤±1%
Resolution
0.01kV
Sampling rate
10 times/second
Working current
≤ 120mA (for hand-held terminal), ≤ 40mA (for detector)
Power supply
2pcs 1.5V AA size dry battery (for hand-held terminal)
2pcs 1.5V AAA size dry battery (for detector)
Working time
More than 12 hours (continuously)
Detector and handheld terminal line-of-sight transmission distance
≤100m(full power)
Display
LCD display, legible in the sunlight.
Working temperature
-35ºC---+60ºC
Storage temperature
-40ºC---+65ºC
Relative humidity
≤ 90%RH (no condensing)
