• Model NO.：WRS-3A
• The Minimum Value：0.1ºC
• Repeatability of Indication：When The Heating Rate Is 1.0ºC,Min,0.3ºC
• Linear Heating Rate Error：±10%
• Processing Power：3
• Capillary Size：Outside Diameterφ1.4mm
• Inside Diameter：φ1.0mm
• The Sample Height：3mm
• Net Weight：6kg
• Transport Package：Standard Export Package
• Specification：Visual-Micro Processor
• Trademark：WEST TUNE
• Origin：China
• HS Code：9031809090
• Production Capacity：200

Basic Info.

Model NO. WRS-3A The Minimum Value 0.1ºC Repeatability of Indication When The Heating Rate Is 1.0ºC/Min,0.3ºC Linear Heating Rate Error ±10% Processing Power 3 Capillary Size Outside Diameterφ1.4mm Inside Diameter φ1.0mm The Sample Height 3mm Net Weight 6kg Transport Package Standard Export Package Specification Visual-Micro Processor Trademark WEST TUNE Origin China HS Code 9031809090 Production Capacity 200

Product Description

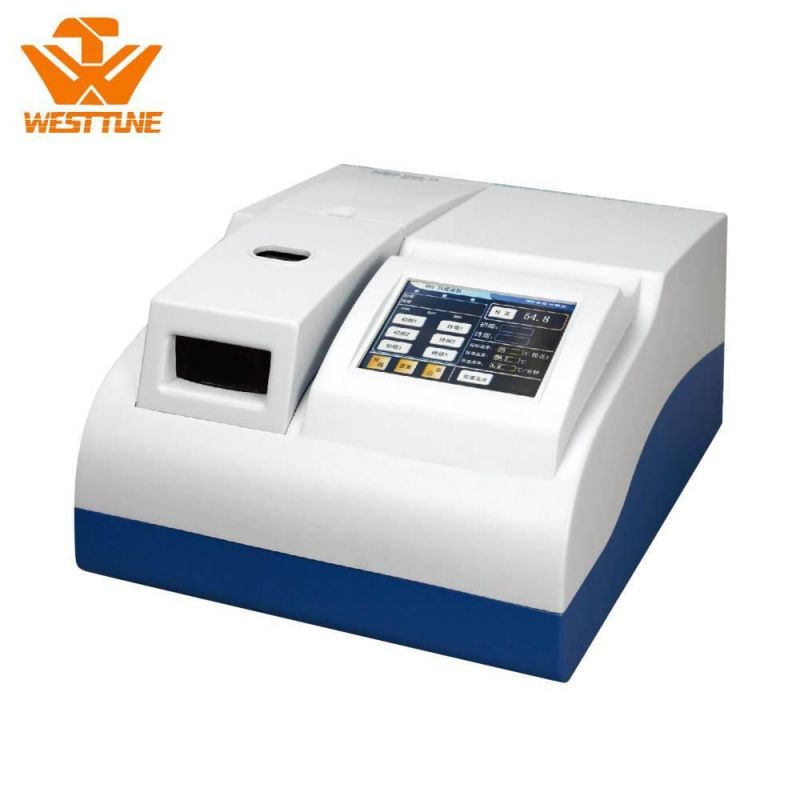

WRS-3A Visual-Micro Processor Melting Point Apparatu

In according with the definition of physical chemistry, the melting point of substance means the temperature at which the substance changes from solid state to liquid state. In the field of organic chemistry, the measurement of melting point is a basic means of organic chemistry, the measurement of melting point is a basic means of recognizing the nature of substance, and is also one of the important place in the chemical industry and medicine researches. Also, the melting-point meter is a kind of necessary instrument in the production of medicines, perfumes, dyestuff and other organic crystal substances.


Features1. Measurement of melting point is one of the important methods of measurement of purity.
2. To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.
3. Together with Visual window and Photoelectric test.
4. Use PID to control the temperature.
5. lt can measure three samples at the same time and calculate average value of initial and final melting points
    automatically.
6. Touch Screen
7. USB
 Specifications

Product model	WRS-3A
Measuring range	room temperature ~ 360 ºC
Method of measurement	Visual-Micro
The minimum value	0.1ºC
Heating rate	0.1ºC/min -10ºC/min
Error value	≤200ºC±0.5ºC,>200ºC±0.8ºC
Repeatability of indication	When the heating rate is 1.0°gmin, it is 0.3°c
Linear warming error	±10%
Processing power	3 root
Capillary size	outside diameterφ1.4mm,inside diameter φ1.0mm,length 90mm
The sample height	3mm
Display mode	5.6-inch color LCD screen
Calibration mode	Multi-points calibration
Communication interface	U Disk/USB
Printer Model	CK-NT24S needle printer (optional)
The power supply	220V±22V,50Hz±1HZ
Size of instrument	390mmx320mmx220mm
lnstrument net weight	6kg
