Explosion-Proof Safety Protection Industrial Temperature Humidity Environment Stability Climate Chamber Testing Environmental Battery Test Chamber
GUANGDONG BELL EXPERIMENT EQUIPMENT CO., LTD.- After-sales Service：Support
- Power Supply：AC380V
- Certification：CE, ISO
- Warranty：1 Year
- Primary Keyword：Climatic Test Cabinet
- Lab Volume：80L-1000L
Base Info
- Model NO.：BTH-SERIES
- Temperature Range：a:-0~150ºC B:-20~150ºC
- Humidity Range：20%Rh-98%Rh
- Temperature Fluctuation：±0.5ºC
- Humidity Fluctuation：±2%Rh
- Heating Rate：Approx 3ºC,Mins,Average Non-Linear ,No Load
- Cooling Rate：Approx 1ºC, Mins,Average Non-Linear ,No Load
- Temperature Overshoot：≤±2ºC
- Internal Material：1.2mm Thick SUS#304 High &Low Temperature Resistan
- Transport Package：Each Set Protected with Resin Fiber and PP Film, T
- Specification：Test Space 400x500x400(customizable)
- Trademark：DGBELL
- Origin：Guangdong China
- HS Code：8514109000
- Production Capacity：100set ,Month
Description
Model
BTH-80
BTH-150
BTH-225
BTH-408
BTH-800
BTH-1000
Test Space
W x H x D (mm)
400x500x400
500x600x500
500x750x600
600x850x800
1000x1000x800
1000x1000x1000
External Dimension
W x H x D (mm)
650x1650x1270
700x1700x1370
700x1750x1420
650x1650x1270
1200x1900x1620
1200x1900x1820
Cooling Method
Air-cooling
Air-cooling
Air-cooling
Air-cooling
Air-cooling
Air-cooling
Temperature Range
A:-0~150ºC B:-20~150ºC C:-40~150ºC D:-70~150ºC
Humidity Range
20%RH-98%RH (details see temperature humidity control diagram).
Temperature Fluctuation
±0.5ºC
Humidity Fluctuation
±2%RH
Temperature Deviation
≤2.0ºC
Humidity Deviation
A)>75%RH:≤+2,-3%RH,B)<75%RH:≤±5%RH.
Temperature Uniformity
≤±2.0ºC
Humidity Uniformity
+2,-3%RH
Heating Rate
Approx 3ºC/mins,average non-linear ,no load
Cooling Rate
Approx 1ºC/ mins,average non-linear ,no load
Temperature Overshoot
≤±2ºC
Internal Material
1.2mm thick SUS#304 high &low temperature resistance stainless steel.
External Material
Adopt flame retardant high strength PU Polyurethane foam insulation material.

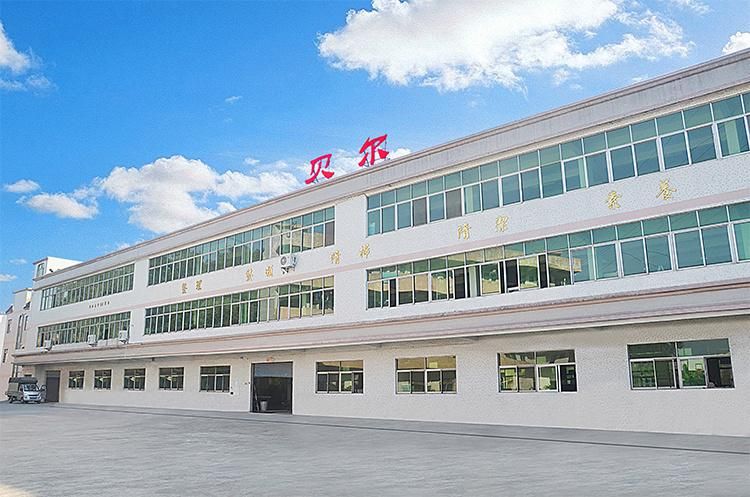

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
15+ years experience in test chambers manufacturing, High performance for your projects.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
Complete QC inspection process,Guarantee high quality of each machine.1.IQC Incoming Quslity Control2.IPQC InPut Process Quality Control
3.FQC Final Quality Control
4.OQC Outgong Quality Control
Our service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment Free technical training for visiting factories 24-hour Online contact Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1.Social media 24 hours online communication;
2.Email contact;
3.Video Conferencing;
