• Model NO.：HST-5A
• Control：Manul
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Transport Package：Standard Exporting Plywood Case with Free Fumigati
• Specification：1000*800*1600MM
• Trademark：HST or OEM
• Origin：China or OEM
• HS Code：9031809090
• Production Capacity：300 Set,Month

Basic Info.

Model NO. HST-5A Control Manul Weight 100-500Kg Power Source AC220V Oil Cylinder Position No Transport Package Standard Exporting Plywood Case with Free Fumigati Specification 1000*800*1600MM Trademark HST or OEM Origin China or OEM HS Code 9031809090 Production Capacity 300 Set/Month

Product Description

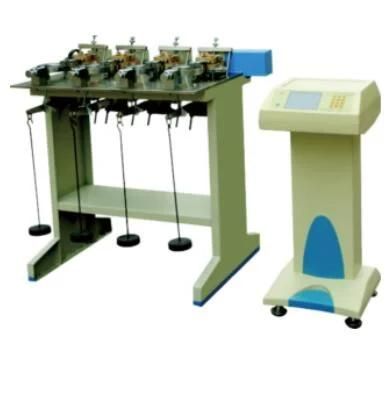

HST-5A Soil Digital Shear Apparatus


Application:
This apparatus is used to test resisting shear strength of soil specimen. It usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed.

Specification:
1. Area of soil sample:30cm2
2. Lever ratio:1:12
3. Vertical Loading: 50,100,200,300,400(Kpa)
4. Max. horizontal loading: 1.2KN
5. Shear rate: 5, 2.4, 1.5, 1, 0.8, 0.02, 0.01mm/min
6. 4 specimens in the same test
7. Working voltage: AC220V
8. Measurement: 1160x900x1160mm(main frame),
500x500x1020mm(controller), weight: 240kg

Features:
Stainless steel working table,
stepping motor as pushing mechanism,
high precision, low noise, MCU control,
Variable speed displayed by the controller,
easy to operate, ABS vertical type controller,
LCD display.
