• Model NO.：GD-4110-I
• Heating Power：700W Tube Heater
• Display：LCD Display
• Power Supply：220V, 50Hz
• Warranty Period：1 Year
• Transport Package：Packed in Veneer Case
• Specification：Refer to the specifications
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：10000 Sets,Month

Basic Info.

Model NO. GD-4110-I Heating Power 700W Tube Heater Display LCD Display Power Supply 220V, 50Hz Warranty Period 1 Year Transport Package Packed in Veneer Case Specification Refer to the specifications Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 10000 Sets/Month

Product Description

GD-4110-I Wide Range Lubricating Grease Dropping Point Tester



Introduction:

1. GD-4410I ASTM D2265 0-400C Lubricating Grease Dropping Point Tester, in terms of GB/T3498-83(91) "test method for dropping point of lubricating grease over wide temperature range", is used to test the dropping point of lubricating grease over wide temperature range that means a numerical value assigned to a grease composition representing the corrected temperature at which the first drop of material falls from the test cup and teaches the bottom of the test tube.
2. GD-4410I ASTM D2265 0-400C Lubricating Grease Dropping Point Tester is also suitable to specification ASTMD2265-94a "test method for dropping point of lubricating grease over wide temperature range".

Working condition:

1. Environmental temperature 0~35ºC,relative humidity≤85%.
2. The apparatus should be put on the horizontal worktable with sufficient illumination
3. Rating voltage: AC220V±10%,frequency:50Hz±1.
4. Grounding condition must be good.

Specifications:

Item Name	GD-4410I ASTM D2265 0-400C Lubricating Grease Dropping Point Tester
Aluminum block oven Material	Alloy aluminum
Heating power	700W tube heater
Grease cup	made of chrome plated brass, size according with GB/T3498-83
Test tube	thin wall glass tube, size according with GB/T3498-83
Cup support	made of heat-resistant and hard glass
Thermometer	according with GB/T514-83,scale: -5~400ºC,minimum scale mark 1ºC


Features:

1. 6 groups of samples can be tested at the same time in 6 test tube wells.
2. Heated by aluminum block oven,same temperatures in test tube wells.
3. Intelligent temperature control device,temperature can be set discretionarily and displayed by number.
4. Repeatability of test result is good.

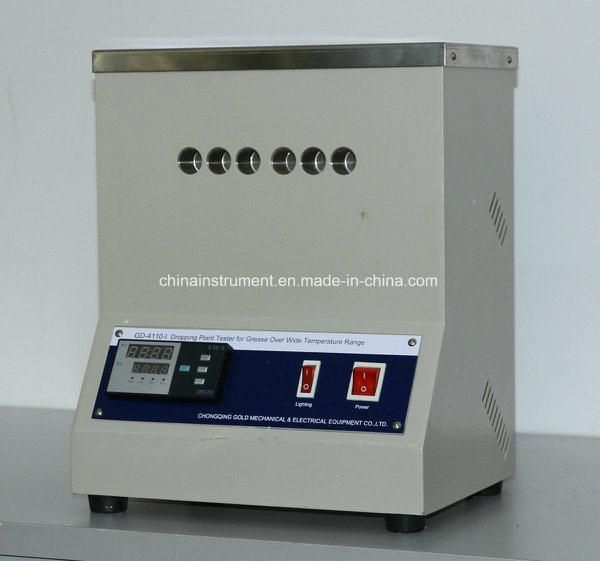

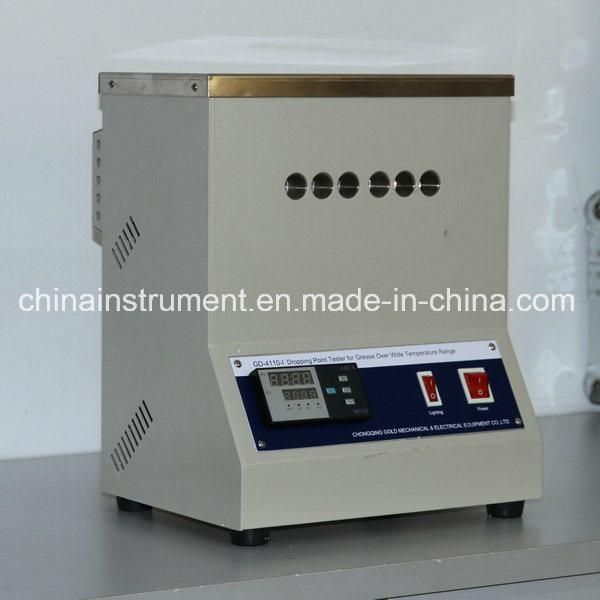

Real Pictures:
