• Model NO.：HD-E710
• Weight：100-500Kg
• Power Source：AC220V
• Certificate：ISO9001: 2008, SGS...
• Warranty Period：One Year
• Delivery Time：20 Days After Receive The Deposit
• Model：HD-710
• Spray Rain Radius：375 and 500mm
• Water Pipe Diameter：16mm
• Spray Orifice Diameter：0.4mm
• Aperture Spacing：500mm
• Water Pressure Control：Flow Gauge
• Obeservation Plane：Large Area of Toughened Glass Door Visualization
• Transport Package：Export Wooden Case
• Specification：ISO9001: 2008, CE, SGS...
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：902480
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-E710 Weight 100-500Kg Power Source AC220V Certificate ISO9001: 2008, SGS... Warranty Period One Year Delivery Time 20 Days After Receive The Deposit Model HD-710 Spray Rain Radius 375 and 500mm Water Pipe Diameter 16mm Spray Orifice Diameter 0.4mm Aperture Spacing 500mm Water Pressure Control Flow Gauge Obeservation Plane Large Area of Toughened Glass Door Visualization Transport Package Export Wooden Case Specification ISO9001: 2008, CE, SGS... Trademark Haida Origin Dongguan, China HS Code 902480 Production Capacity 150 Sets Per Month

Product Description

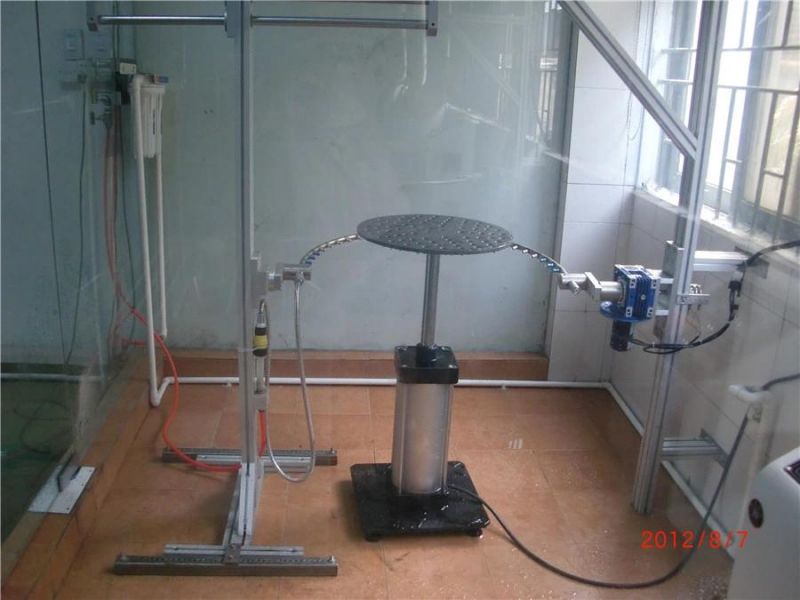

                                                           IP Code Water Resistance Test Equipment

Description:
Water Resistance Test Equipment is suitable for testing the adaptability and reliability of electrical and electronic products, materials, spare parts, etc, in the condition of rain and temperature, which can also be used to external lighting and signal device and vehicle lamps shell protection.

Water Resistance Test Equipment structure:
1, The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.
2, Large area of visible glass door, easy to observe the test specimens in the testing chamber
3, The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.
4, With 270 degree swing pipe and 360 degrees whorl pole water jet device.
5, Adjustable speed samples stage.

Water Resistance Test Equipment Control system:

(Germany) admiralty.

Per stig moller programmable controller to complete the contrl of the whole system of time and sequence. Adopt imported frequency converter speed effectively guarantee the test according to the standard operation. Equipped with water filter.

Water Resistance Test Equipment Feature:

1. Studio equipped with lighting equipment
2. Rain time, interval time, rainfall intensity, regulate and control apart.


Model	HD-E710 Water Resistance Test Equipment
Spray rain radius	375 and 500mm
Water pipe diameter	16mm
Spray orifice diameter	0.4mm
Aperture spacing	500mm
Swing pipe	±45°, ±60°, ±90°, ±180° (theory number)
Test stands rotating speed	1r/min(can be no quarter speed adjustment)
Controller	Import FM type inverter
Time controller	Import programmable computer integrated time controller (Jin Zhong Mo le)
Water pressure control	Flow gauge
Obeservation plane	Large area of toughened glass door visualization
Water supply system	Booster pump, water storage
Safty protection	Leakage, Short circuit, Motor overheating
Design Criteria	GB10485-89
