• Model NO.：GD-2806H
• PC Port：Yes
• Pringting：Yes
• Dimension：400*300*490mm
• Delivery Time：10 Working Days
• Transport Package：Wooden Case for Gd-2806h
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

Product nameAutomatic Ring and Ball Softening Point Apparatus of Bitumen 4 samplesPower supplyAC 220V (-5%~+10%), 50 HzMeasurement range32 ºC~160 ºC.
(1) Heating medium: distilled water (softening point under 80 ºC)
(2) Heating medium: glycerin (softening point over 80 ºC)Temperature resolution0.01 ºCCubage of beaker1000 mlStirrerthe stirring speed can be adjusted continuouslyHeating rateit will be adjusted to 5.0±0.5 ºC/ min automatically after three minutesHeating power600 WTest resultLCD screen shows results and printer to print.Ambient temperatureThe temperature shall be lower than 35 ºC and keep stable. There shall not be any airflowRelative humidity≤85%Maximum power consumption700 WTest samples4 samples

Related Products:

Model	GD-2806G (Two samples and automatic)	GD-2806H (Four samples and automatic)
Standards	GB/T4507,T0608, ASTM D36	GB/T4507,T0608, ASTM D36
Measurement Range	32 ºC~160 ºC	32 ºC~160 ºC
Temperature Resolution	0.01 ºC	0.01 ºC
Heating rate	5.0±0.5 ºC/min after 3 minutes	5.0±0.5 ºC/min after 3 minutes
Sample quantity	2	4
Detection mode	Automatic	Automatic
Printing	yes	yes
Remark 1	LCD display, light touch panel, double samples	LCD display, light touch panel, four samples
Remark 2	Can communicate with PC	Can communicate with PC, can determine resin



Product Packing:

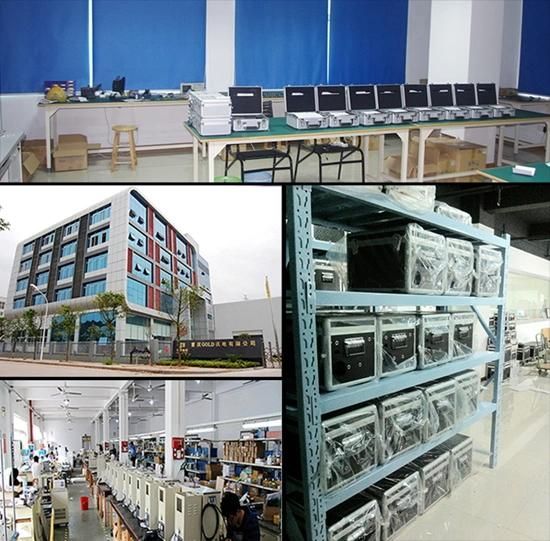

Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
