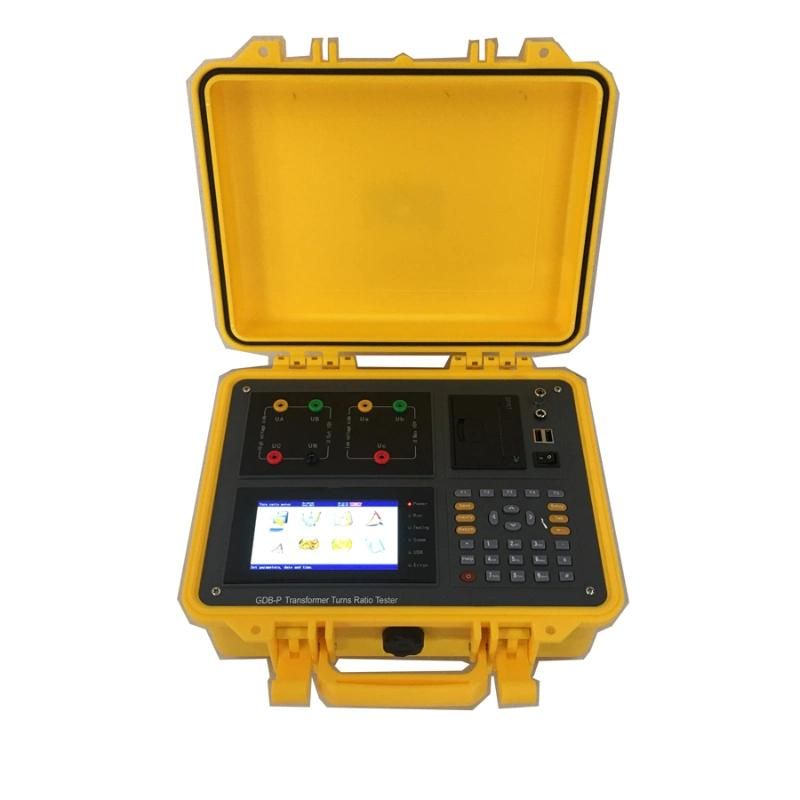

GDB-P Auto Transformer Turns Ratio Tester/Turns Ratio Test Set

HV Hipot Electric Co., Ltd.
  • Type：Strength Testing Machine
  • Accuracy Grade：0.2
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control

Base Info

  • Model NO.：GDB-P
  • Weight：0-100Kg
  • Power Source：AC220V
  • Turns ratio range：0.8~10000
  • Turns ratio accuracy：0.1% ,0.2%
  • Size：32cm*24cm*13cm
  • Transport Package：Standard Export Wooden Box
  • Specification：32cm*24cm*13cm
  • Trademark：HVHIPOT
  • Origin：China

Description

TTR measurement range0.8~10000.High measurement speedthree-phase test can be completed within 60 seconds.Measurement accuracyVoltage measurement accuracy on HV side: 0.05%
Voltage measurement accuracy on LV side: 0.1%
Phase angle measurement accuracy: 0.1°
TTR measurement accuracy: 0.1%(0.8-3000)
                                               0.2%(3000-10000)Volume320mm*240mm*130mmWeight3KgGDB-P Auto Transformer Turns Ratio Tester/Turns Ratio Test Set
