• Model NO.：PHW-10000H
• Maxcapacity：<1000KN
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC380V
• Oil Cylinder Position：Top
• Length：4200 mm
• Width：1200 mm
• Height：2300 mm
• Gross Weight：5000 Kg
• Transport Package：Fumigated Wood Box
• Specification：ISO9001: 2008
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：100sets,Month

Basic Info.

Model NO. PHW-10000H Maxcapacity <1000KN Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 500-1000Kg Power Source AC380V Oil Cylinder Position Top Length 4200 mm Width 1200 mm Height 2300 mm Gross Weight 5000 Kg Transport Package Fumigated Wood Box Specification ISO9001: 2008 Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 100sets/Month

Product Description

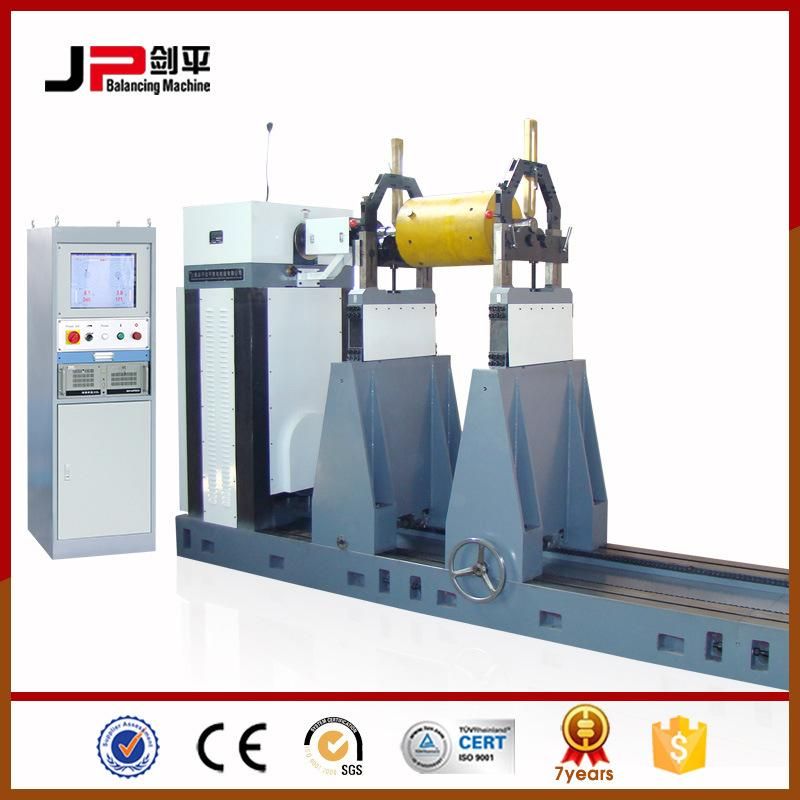

Big Fan Balancing Machine (PHW-10000)

Production Description

Special designed brackets can effectively transmit mechanical force
The durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy
Driven by universal coupling, transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power
Advanced electrical measuring system and friendly man-machine interface

Range of Application

This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized motors, spindles of machine tools, blower, centrifuges, generator rotor, clinopodiums, pump impeller. Drying cylinder. Ceramic machinery, rollers, rubber sticks, etc...Driven by gear box universal coupling, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. With wide speed range, large driving power, high precision and easy operation etc

Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Production Parameters

Technical data at a glance	PHW-10000	PHW-20000
Mass Scope of Workpiece (kg)	10000	20000
Max Diameter of Workpiece (mm)	2800	2800
Distance Between Two Support Bearings (mm)	Min:450	Min:450
Journal Diameter Scope of Workpiece (mm)	60~400	60~400
Max Distance between Driving Flange and Right Bearing Support (mm)	3600	3600
Rotation Speed of the Main Axis (r/min)	195,336,561,916,1374 +Stepless speed regulation	195,336,561,916,1374 +Stepless speed regulation
Motor Power (kw)	30 Frequency conversion	55 Frequency conversion
Torque of Universal Joint Shaft (N@m)	2250	5000
Min Achievable Residual Unbalance Amount (emar)	1g. mm/kg	1g. mm/kg
