• Model NO.：GDOT
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Transport Package：Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan China
• HS Code：9030899090
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. GDOT Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Top Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9030899090 Production Capacity 1000PCS/Year

Product Description

I.General Information

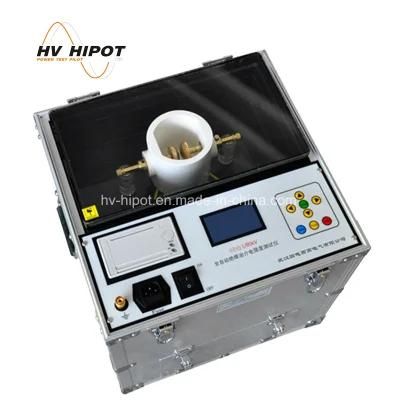

GDOT Automatic Insulating Oil Breakdown Tester adopt micro-computer controller in the whole process of testing, with good anti-jamming performance, high efficiency, safe, reliable and accurate.

II. Features

1. LCD screen;
2. Automatic stirring, ensure personnel safety;
3. Run times, mixing and standing time can be changed at any time;
4. Voltage regulator system with variable speed mode, slow boost, fast return to zero;
5. Diverse run method;
6. Calendar display time;
7. The measure data can be saved for a long time;
8. Suitable for testing a variety of insulating oil dielectric strength;
9. Automatic detection function, such as automatically reset voltage regulator back to zero;
10. with a micro TPU-A panel printer to get results automatically.
11. Fully automatic magnon stirring, which eliminate the uneven of oil samples and bubbles.


Power  supply	AC220V± 10%,   50Hz
Output  voltage	0-100kV
Capacity	2.0kVA
Speed  of  voltage  increase	about  2kV/s
Voltage  inspection  accuracy	1%
Breakdown  sensitivity	< 0.1kV
Waveform  distortion	≤ 3%
Breakdown  response  time	≤ 10ms
Storage  environment	Temperature:   0-40degree
	Humidity:   Max.   relative  humidity  85%
Storage  environment	Temperature:   -20degree-60degree
	Humidity: Max.   relative  humidity  75%
Altitude	< 1500m  (if  over  1500m,   it  can  be  customized)
