• Model NO.：XHDD402
• Specification：set
• Trademark：XZH TEST
• Origin：China Xi′an
• HS Code：854320100
• Production Capacity：100 Pieces ,Year
• Package size per unit product：35.00cm * 25.00cm * 18.00cm
• Gross weight per unit product：5.000kg

Basic Info.

Model NO. XHDD402 Specification set Trademark XZH TEST Origin China Xi′an HS Code 854320100 Production Capacity 100 Pieces /Year

Packaging & Delivery

Package size per unit product 35.00cm * 25.00cm * 18.00cm Gross weight per unit product 5.000kg

Product Description





Product description

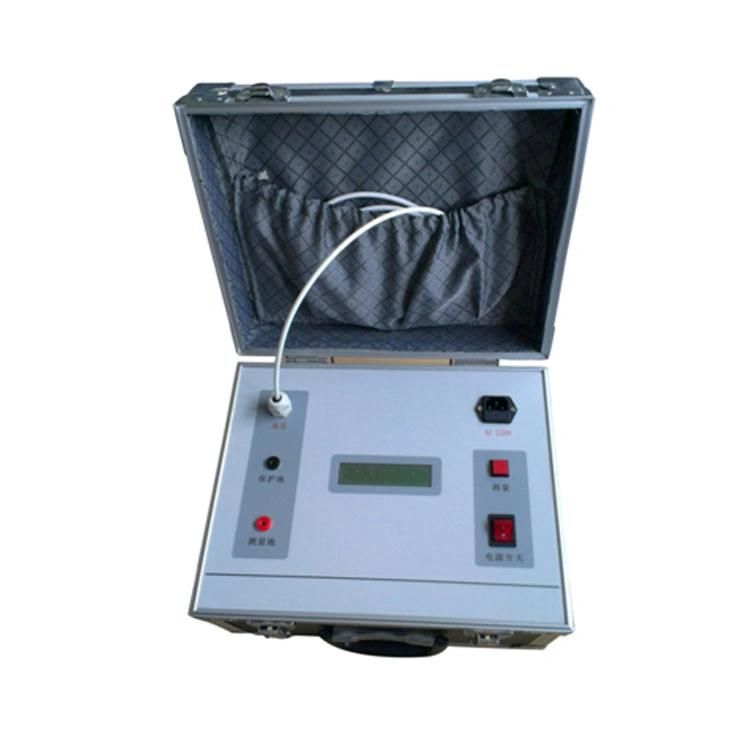

The XHTX402 zinc oxide lightning arrester characteristic tester is specially used to detect the internal defects of the MOA valve of the non-gap zinc oxide surge arrester for power systems of 10kV and below. According to the "Procedure Test Procedures for Power Equipment", 14.2 of DL/T596-1996 It is stipulated that the power plant and substation should test the leakage current of DC 1mA (U1mA) and 0.75 U1mA for the metal oxide lightning arrester before and during the annual thunderstorm season.



Main features

1. The ambient temperature is automatically sensed and recorded in the test results.

2. Remotecontrol test via remote control makes testing more secure, convenient and fast.

3. Chinese/English menu operation, LCD display, micro printer output.

4. Full digital processing, built-in precision mathematical model, high measurement accuracy and stability.

5. Can store 50 sets of test data, no loss even power down, and can view the print at any time.



Main Technical Parameters

Measuring range: Voltage: 0 ~ 30kV ;  Ripple coefficient: ≤ 1.5% ;  Current: 0 ~ 1000μA

Resolution: Current: 0.5μA  ;   Voltage: 0.1 kV

Charging time: 2-3 hours  ;    Battery life: ≥ 4 hours

Remote control distance: 100m

Ambient temperature: -10°C ~ 50°C Relative humidity: ≤ 85% at 25°C

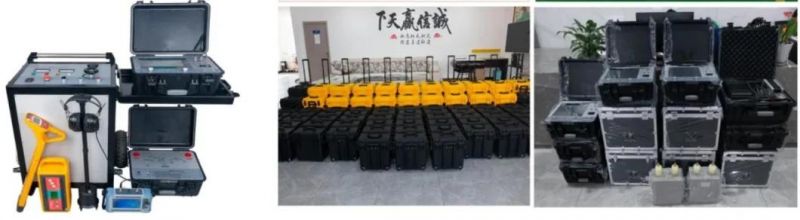

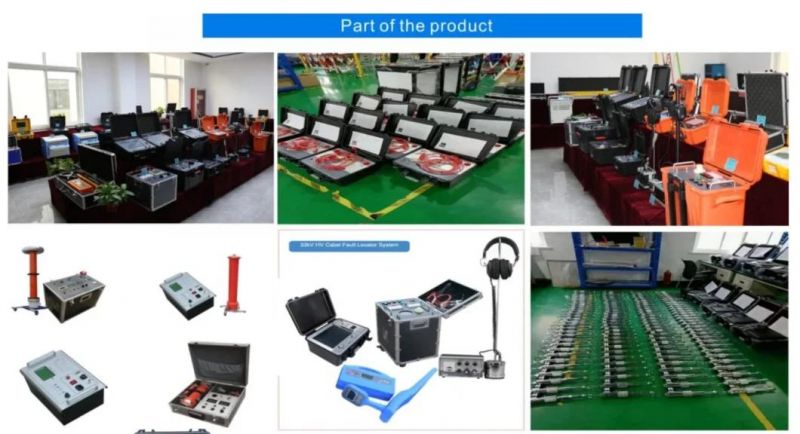

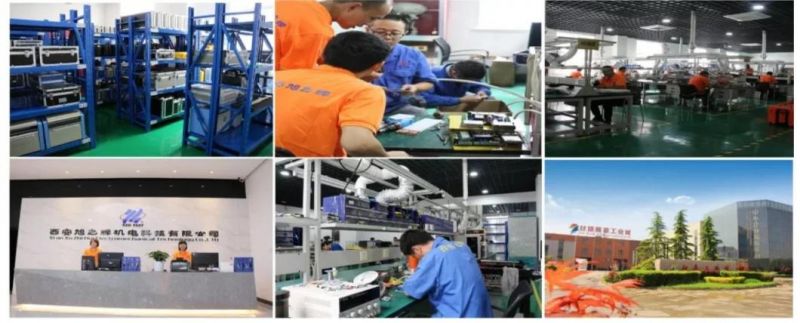

XI'an Xu&Hui Electromechanical Technology Co., Ltd. (XZH TEST) has found 2013, located in Xi'an China. which is a highly experienced team dedicated to developing electrical measurement instrument, the product line covers a wide range of devices for testing various electrical area. such as underground cable fault locating system, power transformer test set, DC Hipot tester, Insulation resistance tester and so on. Over 15 years measurement experiences of innovation combining with advanced technology to provide the most advanced and reliable electrical measurement and analysis systems available.

Our goal is to provide our customers with reliable test and measurement equipment that more safe and easy to use, we make measurement easier!

The design development production and Inspection is performed at the ISO 9001 and CE which grantee a consistency of high quality products. XZH TEST masters a variety of technologies as well as extended service and support to deliver the highest value to our customers.
