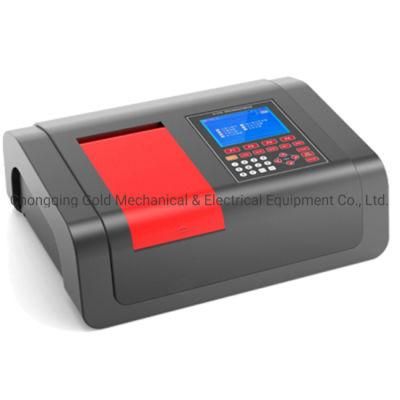

190~1100nm Dual-Beam UV-Vis Spectrophotometer

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Optical System：Double Beam
  • Wavelength Range：190~1100nm
  • Wavelength Accuracy：±0.3nm
  • Wavelength Repeatability：≤0.1nm
  • Stability：0.0005A,H@500nm
  • Noise：± 0.0002A @500nm

Base Info

  • Model NO.：UV-1800
  • Baseline Flatness：± 0.001A
  • Photometric Mode：T,a,C,E
  • Wavelength Setting：Automatic
  • Photometric Display Range：-4~4A
  • Product Name：190~1100nm Dual-Beam UV-Vis Spectrophotometer
  • Transport Package：Wooden Case
  • Trademark：GOLD
  • Origin：Chongqing, China
  • HS Code：903180900
  • Production Capacity：10 Sets , Month

Description

Optical SystemDouble beamWavelength Range190~1100nmBand Width2nm (0.5nm, 1nm, 4nm, 5nm optional or 0.5 , 1, 2, 4nm adjustable)Wavelength Accuracy±0.3nmWavelength Repeatability≤0.1nmPhotometric Accuracy±0.3% τ(0-100%τ) ±0.002A(0~0.5A) ±0.003A(0.5A~1A)Photometric Repeatability0.15% τ(0-100%τ) ±0.001A(0~0.5A) ±0.0015A(0.5A~1A)Stray Light≤0.03% τ (220nm NaI,340nm NaNO2)Stability0.0005A/h@500nmNoise± 0.0002A @500nmBaseline Flatness± 0.001APhotometric ModeT,A,C,EWavelength SettingAutomaticPhotometric Display Range-4~4ADisplay Mode6 inches high brightness blue LCDDetectorImport Silicon PhotodiodeLight SourceImport Deuterium Lamp & Tungsten Halogen LampPower RequirementAC 220V/50Hz 110V/60HzPower120WDimensions(W*D*H)560×450×230mmWeight28Kg
