Ista 3A Standards Simulate Car Shipping Carton Transport Simulation Vibration Test Equipment

Ai Si Li (China) Test Equipment Co., Limited
  • Max Diameter of Workpiece：2000mm
  • Mass Scope of Workpiece：<900kg
  • Type：Vibration Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Mechanical Load

Base Info

  • Model NO.：AS-200
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Digital
  • Weight：500-1000Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Effective Area：W1200*D1000mm
  • Max. Load：200kg
  • Rotating Speed：150~300rpm
  • Application：Carton, Package Box, LED Light
  • Transport Package：Wooden Case
  • Specification：W1200*D1000mm
  • Trademark：ASLi
  • Origin：Guangdong, China
  • HS Code：9031809090
  • Production Capacity：100 Sets,Month

Description

 carton and package vibrating table technical parameters:ModelAS-100AS-200AS-300AS-600 AS-1000Load (Kg)1002003006001000

Effective Area WxD

 (mm)

1200×10001200×10001200×13001300×14001500×1500Weight (Kg)200250350450600

External Dimension

 WxHxD (mm)

1300×650×1300

1300×650×1300

1300×650×1400

1400×750×1500

1600×850×

1600

Rotating Speed (RPM) 150~300Amplitude 25.4mm(1inch), (Accord ASTM.IEC transport standard)Time Setting (Approx.) 0~999hoursMode of Vibration Reciprocating typePower AC220V or according to the equipment specification

Ista 3A Standards Simulate Car Shipping Carton Transport Simulation Vibration Test Equipment
Ista 3A Standards Simulate Car Shipping Carton Transport Simulation Vibration Test Equipment
Ista 3A Standards Simulate Car Shipping Carton Transport Simulation Vibration Test Equipment
Application:

Vibration Tester AS series Transport Simulation Vibration Testing Machine  is applied to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics,equipment,etc., under simulated transport conditions, according to American and EU transport standard (ASTM,IEC).

transport simulation vibration testing machine features:
1. Unique design, easy to use.
2. Low noise, with buffering function.

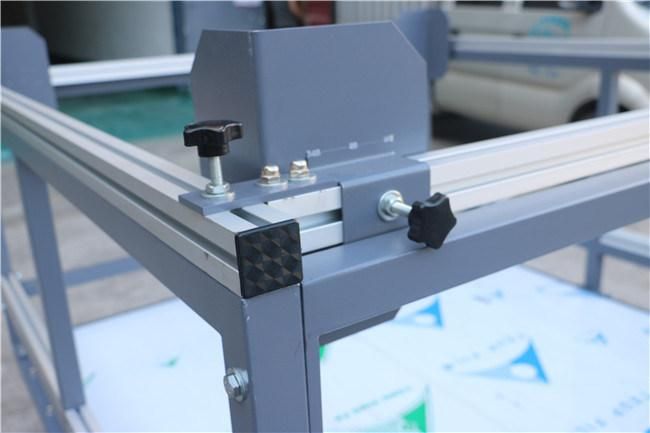

3. Frame is powder coating, working table is stainless steel with aluminium alloyrail track.

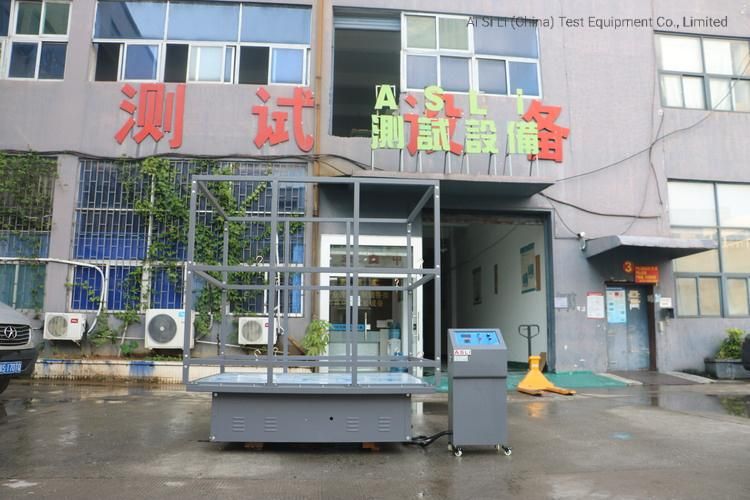

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 27 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.Simulated Transport Vibration Tester is our star products , and we had obtained the CE certification for this machine.

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
After-sale service:
Feedback within 2 hours, and offer solution in 4 hours and help to solve the problems.
