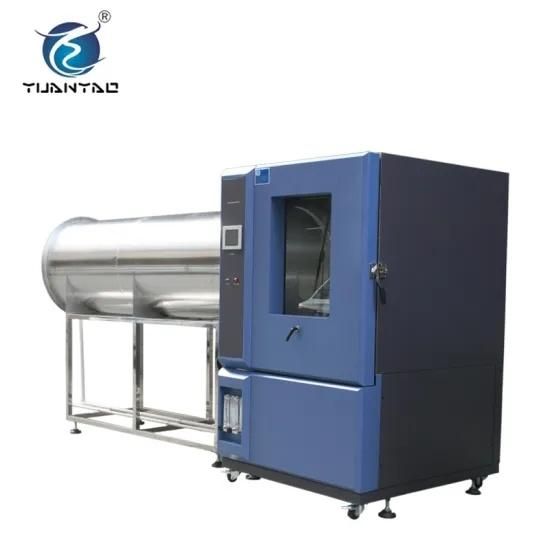

Ipx5ipx6 Water Flush Resistance Test Chamber for Outdoor Lighting

Guangdong Yuanyao Test Equipment Co., Ltd.
  • After-sales Service：Available
  • Power Supply：3 Phase 380V 50 Hz
  • Certification：CE
  • Warranty：1 Year
  • Inner Chamber Size：1000wx1000hx1000d mm
  • External Chamber Size：1450wx2000hx3600d mm

Base Info

  • Model NO.：YSRT-1000
  • Test Level：Ipx1,Ipx2,Ipx3,Ipx4,Ipx5,Ipx6
  • Test Standard：IEC60529
  • Inner Chamber Material：SUS#304 Stainless Steel Plate
  • External Chamber Material：Cold Rolled Sheet with Powder Coating
  • Rain Drip Area：600X600mm or 800X800mm
  • Swing Pipe Radius：40cm
  • Rotary Table Diameter：60cm
  • Rotary Table Load：50kg
  • Spray Nozzle Diameter for Ipx5：6.3mm
  • Spray Nozzle Diameter for Ipx6：12.5mm
  • Jet Distance for Ipx5 Ipx6：2.5m to 3m
  • Water Drip Water Flow for Ipx1：1~1.5mm,Min
  • Water Drip Water Flow for Ipx2：3~3.5mm,Min
  • Transport Package：Plywood Case Package
  • Specification：Standard type
  • Trademark：Yuanyao
  • Origin：China
  • HS Code：9032100000
  • Production Capacity：5 Sets,Month

Description

Non-standard or special requirements are all welcome
IP level sheet
Not protected__
Dripping waterDripping water (vertically falling drops) shall have no harmful effect.Test duration: 10  minutes

Water equivalent to 1  mm rainfall per minute
Dripping water when tilted up to 15°Vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle up to 15° from its normal position.Test duration: 10  minutes

Water equivalent to 3  mm rainfall per minute
Spraying waterWater falling as a spray at any angle up to 60° from the vertical shall have no harmful effect.Test duration: 5  minutes

Water volume: 0.7  litres per minute
Pressure: 80- 100  kPa
Splashing waterWater splashing against the enclosure from any direction shall have no harmful effect.Test duration: 5  minutes

Water volume: 10  litres per minute
Pressure: 80- 100  kPa
Water jetsWater projected by a nozzle (6.3  mm) against enclosure from any direction shall have no harmful effects.Test duration: at least 3  minutes

Water volume: 12.5  litres per minute
Pressure: 30  kPa at distance of 3  m
Powerful water jetsWater projected in powerful jets (12.5  mm nozzle) against the enclosure from any direction shall have no harmful effects.Test duration: at least 3  minutes

Water volume: 100  litres per minute
Pressure: 100  kPa at distance of 3  m
Immersion up to 1  mIngress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1  m of submersion).Test duration: 30  minutes

Immersion at depth of at least 1  m measured at bottom of device, and at least 15  cm measured at top of device
Immersion beyond 1  mThe equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer. Normally, this will mean that the equipment is hermetically sealed. However, with certain types of equipment, it can mean that water can enter but only in such a manner that it produces no harmful effects.Test duration: continuous immersion in water

Depth specified by manufacturer

Ipx5ipx6 Water Flush Resistance Test Chamber for Outdoor Lighting

Except IPX5IPX6 water flush resistance test chamber for outdoor lighting, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Welcome to enquire and purchase!
