• Model NO.：HD-B609B-S
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Test Speed：0.1-500mm,Min(Convertible)
• Motor：Panasonic Servo Motor
• Panasonic Servo Motor：0.001mm
• 0.001mm：Approx.75kg
• Stroke：1000mm
• Load Resolution：1,250, 000
• Accuracy：0.5%
• Sensor：Celtron Load Cell
• Operate and Display：Computer
• Power：One Phase, AC 220V
• Transport Package：Strong Wooden Case
• Specification：Atsm
• Trademark：HaiDa
• Origin：Guangdong China
• HS Code：9024109000
• Production Capacity：60sets,Month

ItemsSpecificationSensorCeltron load cellCapacity5, 10, 20, 25, 50, 100, 200kgUnit SwitchoverG, KG, N, LBDisplay DeviceLCD or PCResolution1/250,000Accuracy±0.5%Max. Stroke1000mm (including fixture)Test Speed0.1-500mm/min (adjustable )MotorPanasonic Servo MotorScrewHigh Precise Ball ScrewElongation Accuracy0.001mmPower1ø, AC220V, 50HZWeightApprox.75kgAccessoriesOne set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual

Product Features
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

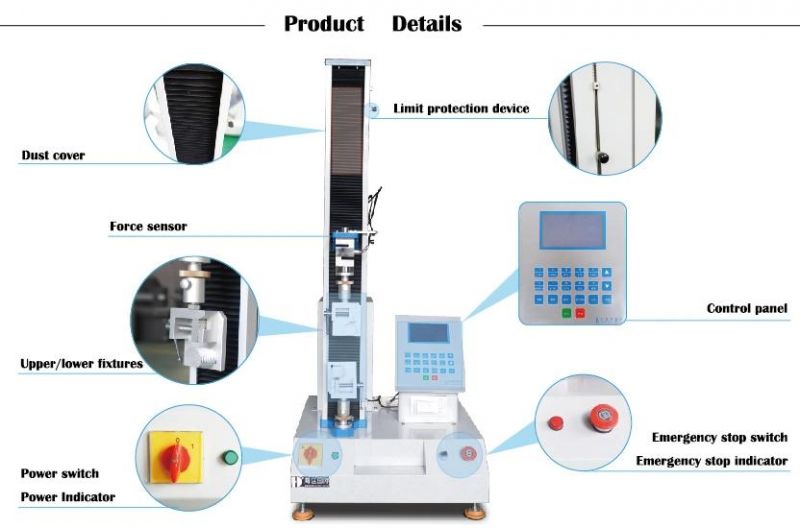

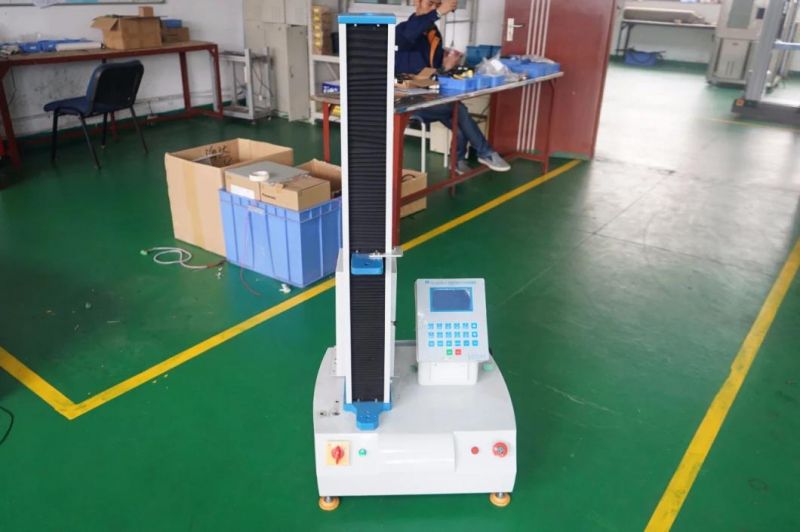

Product images:






The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.





If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    24 Hours online service for your consult.
    Help choose right model,and a series  of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging:  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
