• Model NO.：BE-6045D-SERIES
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC220V
• Structure：Vertical
• Extrusion Accuracy：<±0.5%
• Transport Package：Each Set Protected with Resin Fiber and PP Film, T
• Specification：Dimension 1200x1100x1800(customizable)
• Trademark：DGBELL
• Origin：Guangdong China
• HS Code：9031809090
• Production Capacity：100set ,Month

The crush speed is adjustable. The speed of the first contact point during extrusion can be set to 1.5cm/s; the speed range of the test process is 0.01~900mm/min / 0.01~1.5cm/sec (Adjustable)Driving MethodElectric Servo DriveUnit ConversionKg/N/LbCrush Range0~300MMExtrusion Accuracy±0.5%Extrusion Remaining Time0~99 hours 99 mins 99 secsControlling ModeSplit type, computer controlMain Voltage1 channel (control via software interface)Test Space≥ W300*D300*H300mmOverall DimensionW1200 X D1100 X H1800 mmObservation windowLaminated 300*300mm explosion-proof glass with explosion-proof membranePower SupplyAC 220V 50HZ The main control software can simultaneously collect the force, displacement and voltage changes in the extrusion process and make corresponding program control according to the test standard requirements.Testing Conditions CommunicationUsing R232, 485 communication interface, ensure the stability and real-time of remote collection, with explosion-proof functionVoltage Acquisition System (Optional)Resolution: 5mv Acquisition range: 0-60V Acquisition channels: 2 (multiple channels can be customized as required)Temperature Acquisition System (Optional)Resolution: 0.1°C Acquisition range: 0-1200°C Acquisition channels: 2 (multiple channels can be customized as required)Safety Protection DeviceAutomatic explosion-proof pressure relief device, smoke exhaust device, fire extinguishing device, video monitoring system, electronic door lock system, safety stop switch

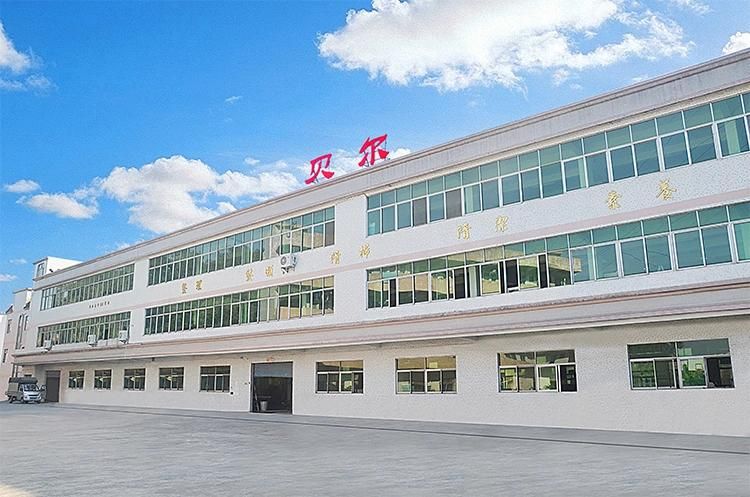

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

15+ years experience in test chambers manufacturing, High performance for your projects.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.

FAQ

Q1 : Can you customize the product?
   A:  Yes, we can customize any products according to requirements. Hot selling lab electronic
        temperature humidity cabinet/Environmental climate test chamber/Car Battery Safety Test Chamber also can            be customized.

Q2 : How to choose the most suitable products?
  A:   Our professional team will give you the best suggestion, just be patiently to tell us the information
       about the parameters you require.

Q3 : Can you arrange installations and commissioning in our lab?
   A:  Firstly, for standard chamber we had 3-5 days commissioning before shipping,
         you just need link power in your lab, then you can start to operate.
         Secondly, we had detailed operation manual with chamber , any problems you can find and solve in it.
         Thirdly, some customized chambers we should install and teach your team to operate .

How to Contact Us?

Please send your inquiry details below or send them to my mail below. We promise to reply to your inquiry on time.
