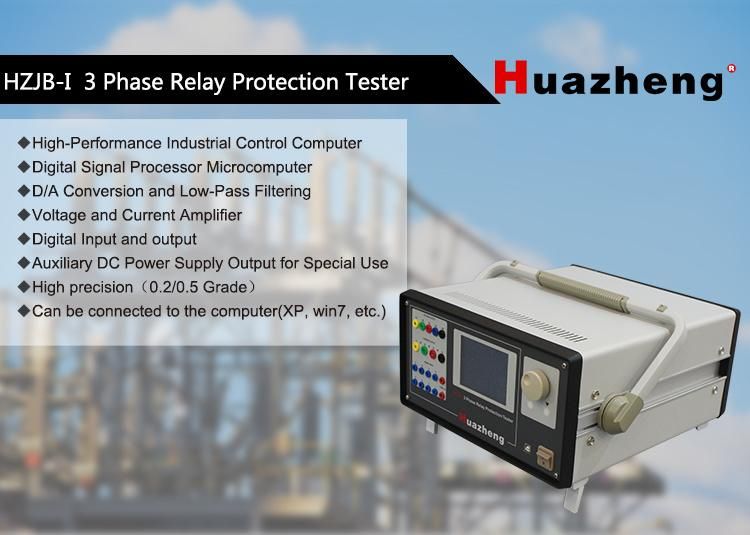

Microcomputer Secondary Current Injection Three Phase Protection Relay Test Device
Huazheng Electric Manufacturing (Baoding) Co., Ltd.- After-sales Service：Yes
- Warranty：1 Years
- Type：Universal Testing Machine
- Maxcapacity：3 Phase
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：HZJB-I
- Loading Method：Static Load
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：No
- Usage：3 Phase Relay Protection Tester
- Work Power：110V-400V Adjustable
- Power Frequency：50±1Hz
- Phase：0--360 °
- Power Capacity：300va , Phase
- Line Voltage Range：0--250V
- Power：AC220V ± 10% 50Hz 10A
- Environment Humidity：≤90%Rh
- Work Temperature：-10°c~ 50°c
- Certificate Standard：ISO Ce
- Transport Package：Standard Carton, Box
- Specification：CE,ISO,IEC
- Trademark：HuaZheng
- Origin：Baoding, Hebei
- HS Code：9030820000
- Production Capacity：500set ,Year
Description
Switch parameters input - 7 ways
Empty contact: 1~20mA, 24v
Power contact access:"0": 0~+6V;"1": +11V~+250V
Switch parameters output - 2 couples
DC: 220V/0.2A;AC: 220V/0.5A
Measuring range
0.1ms ~ 9999s
measuring accuracy
0.1ms
Volume and weight
Appearance and size
400×300×180 (mm)
Weight of a single machine
22kg
Supply power
AC 220V±10%,50/60Hz
Environmental temperature
-10ºC~ +50ºC
IV.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

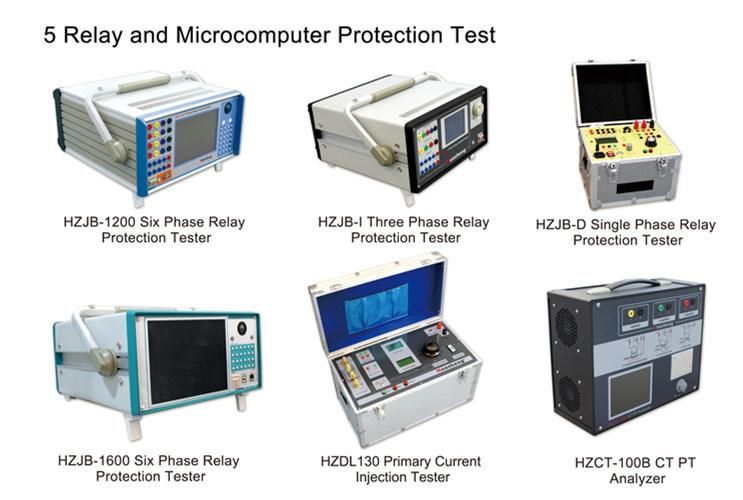

Our main products are Safety Products, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
V. Our Services
1. Good after sales service: Any small problem happening will be solved at the most prompt time;
2. We have many years of experience, we have specializing in fastener;
3. Specifications list is available upon your request
4. Welcome to send enquiry,we will reply soon.If you want to know more,pls feel free to contact us.
5. Prompt shipment with professional documents
6. Packing as your request, with photo before shipment
7. High quality and competitive price
8. All the product quality are under strict controll and offer good service.
9. Our produts now are known by lots of our domestic customers and oversea clients.
