Labortory Equipment Universal Tensile Testing Machine

Sailham Equipment (Dongguan) Co., Ltd.
  • Certification：Ce, RoHS, FCC, ISO, SGS Certificates
  • Standard：ASTM D903, GB,T2790,2791,2792, Cns11888, JIS K6854
  • Motor Types：Servo Motor
  • Service：OEM , ODM , Non-Standard Available
  • Applications：Leather, Textile, Rubber, Tooth Mode
  • Accuracy：0.5%

Base Info

  • Model NO.：ZH-TB-1000
  • Weight：70kgs
  • Fixture：Customization Available
  • Accessories：with One Standard Fixture for Tensile Strength
  • Warranty：12 Months
  • Transport Package：Wooden Case for Export
  • Specification：Customization available
  • Trademark：Sailham
  • Origin：Guangdong, China
  • HS Code：8479899990
  • Production Capacity：5000sets,Year

Description

 Capacity  500N, 1KN, 2KN, 5KN, 10KN, 20KN (optional) Units  gf, kgf, N, LBf, W, kN, T Load Resolution  1/250, 000 Load Accuracy  within ± 0.5% Maximum trip  1000mm (excluding fixture) Test   speed  (0.1-500)mm/min Outside Dimension(L× W× H)  985× 510× 1600mm  Weight 70~150kg  Power 1 phase, 220V/50HZ  Motor Servo Motor, frequency conversion motor Driver High presice ball screw AccessoryOne set of standard fixture for tension fixture, one computerFixtures typeDifferent fixture can be customized

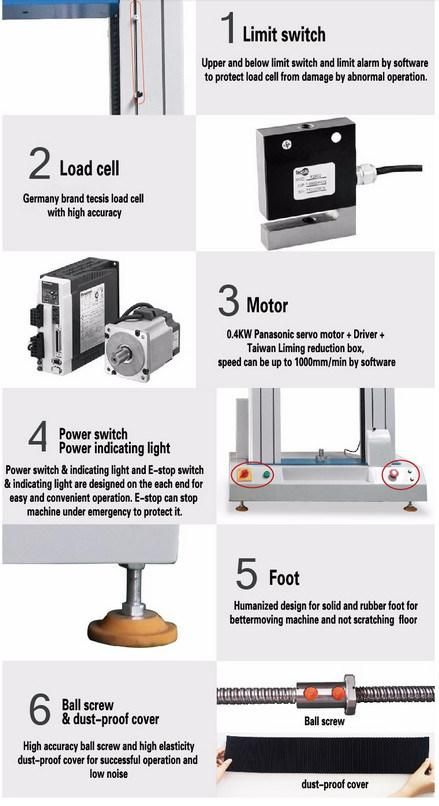

CORE PARTS:
 Labortory Equipment Universal Tensile Testing Machine

Labortory Equipment Universal Tensile Testing Machine
Labortory Equipment Universal Tensile Testing Machine

Labortory Equipment Universal Tensile Testing Machine
