Evd Hand-Held Lightweight Falling Weight Deflectometer (LWD)
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Transport Package：Aluminum Carrying Case
- Trademark：C-TECH
- Origin：China Mainland
Base Info
- Model NO.：EVD
- HS Code：90248000
- Production Capacity：200 Sets,Month
Description
Test range
Applicable soil types
Diameter of a quarter of all kinds of soil particle size is not greater than the load board and earth-rock mixture packing
Test range
10Mpa≤Evd≤225Mpa
Test impact depth
0~500mm
Work environment
temperature -10ºC~40ºC Humidity <90%HR
Data acquisition device
Loading device
Weight:15kg,Drop weight:10kg,Hammer drop height:700±20mm
Maximum impact force:7.07kN
Impact duration:18±1ms
Loading plate
Weight:15kg
Diameter:300mm
Thickness:20mm
Handheld main engine
Subsidence test range
0.10mm~2.00mm
Storage capacity
2000 groups of test data
Specifications
Screen size:3 inch
Volume:100×205×40mm
Weight:0.8kg
Power supply mode
The large capacity lithium battery, working time is more than 18 hours
Display support
Chinese/English
Printer
Connection method
Wireless bluetooth print
Packing specification
Main box
Material: Engineering plastics
Volume:385x300x175mm
Weight:4.5Kg

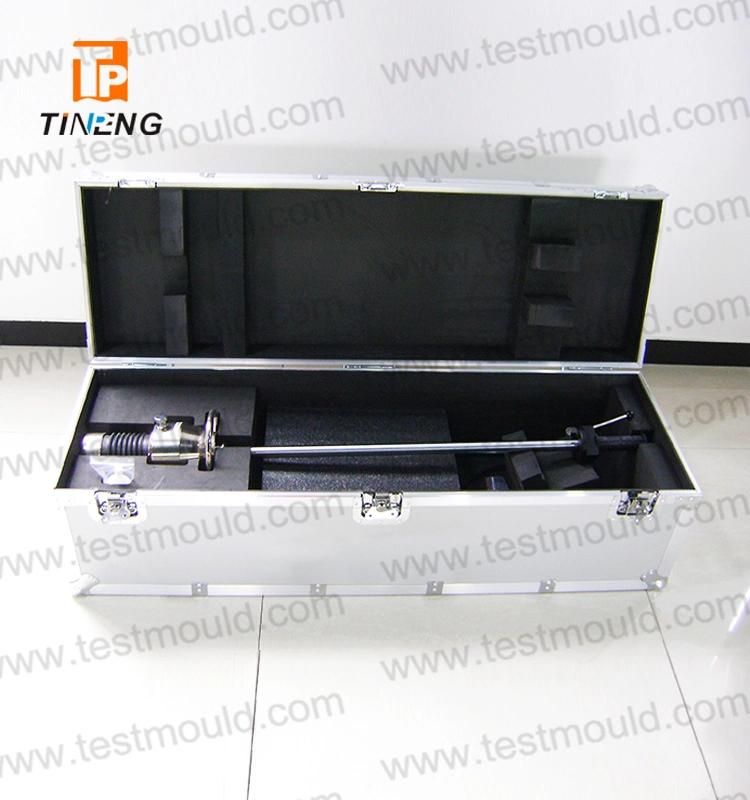

Outer packing
Material: Aluminum alloy
Volume:1220x395x380mm
Weight:56Kg
