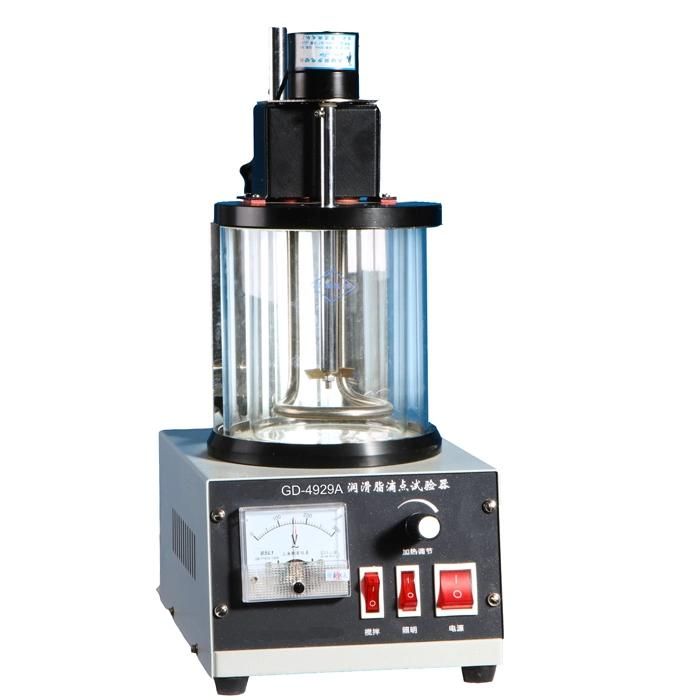

• Model NO.：GD-4929A
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1. Power supply: AC 220 V±10%, 50 Hz;Oil bath:  600 ml beaker. Grease cup: Made of chrome plated brass. Its inner diameter is about 9.92 mm and the diameter of orifice for dropping oil is 2.8 mm. The height of the cup is about 12 mm. Test tube:   A tube made of heat-resistant glass with rim. Its inner diameter is 11.1 mm to 12.7 mm. There are three indentations at about 19 mm from the bottom, equally spaced on the circumstance. These indentations are used for supporting the grease cup. Thermometer: -5ºC~300 ºC,scale value is 1 ºC. Its total length is 390 mm and the depth immersed is about 76 mm. Heater:  Tubular. Power 800 W. Stirring motor:  Rotating speed 60 RPMAmbient temperature:   -10ºC~+40 ºC Relative humidity:   ≤85% Maximum power consumption:   900 WDimension:   350mm×180mm×410mm







• Workshop

• Exhibition

We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India,

Germany, Belgium, USA, Mexico, Kenya,

Nigeria, South Africa and other countries worldwide. And we have gained strong advantage and high reputation in international market.

After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument.





Brazil ANALITICA LATIN AMERICA 2017 Photos Show



• Packing

Goods are packed in veneer case, which is firm and safe for oversea shipment.
