• Model NO.：GD-0623
• Origin：China
• HS Code：9031809090
• Production Capacity：200 Units,Month

Basic Info.

Model NO. GD-0623 Origin China HS Code 9031809090 Production Capacity 200 Units/Month

Product Description

GD-0623 Saybolt Two-Tube Digital Viscometer Bath for Bitumen and Bituminous Binders

 Introduction:
The Bitumen Saybolt Viscometer Bath is designed and made as per T 0623 and ASTM D88 Bitumen Saybolt Viscosity Test (Saybolt Viscometer Method) in the JTJ052 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering.
The Bitumen Saybolt Viscometer Bath is suitable to determine the Saybolt viscosity of bitumen and bituminous mixtures under a constant temperature as per T0623.


Features:
1. The Bitumen Saybolt Viscometer Bath is composed of bath, temperature controller, parameters display and calculation(calibration coefficient, time, viscosity and so on).
2. The Bitumen Saybolt Viscometer Bath adopts micro computer technology.It equips double lines to detect.It can determine two samples at the same time. It can display the parameters and calculate the arithmetic mean value automatically.
3. The Bitumen Saybolt Viscometer Bath can convert the Saybolt viscosity to Engler viscosity and kinematic viscosity automatically. Operator can get three viscosity data from one test. The work efficiency is high.


Specifications:
1. Power supply:     AC(220±10%)V  50Hz
2. Instrument structure:    Desk type
3. Working mode:    Double lines,parallel test
4. Receiving flask:   (60±0.0)5ml
5. Heating power of bath:    1000W
6. Working temperature of bath:  Room temp.∼240.0ºC
7. Temperature control accuracy:   ±0.1ºC
8. Timing range:   0.0s∼999.9s
9. Timing accuracy:   ±0.1s
10. Ambient temperature:   ≤35ºC
11. Relative humidity:    ≤85%
12. Overall dimension:   360mm×360mm×790mm

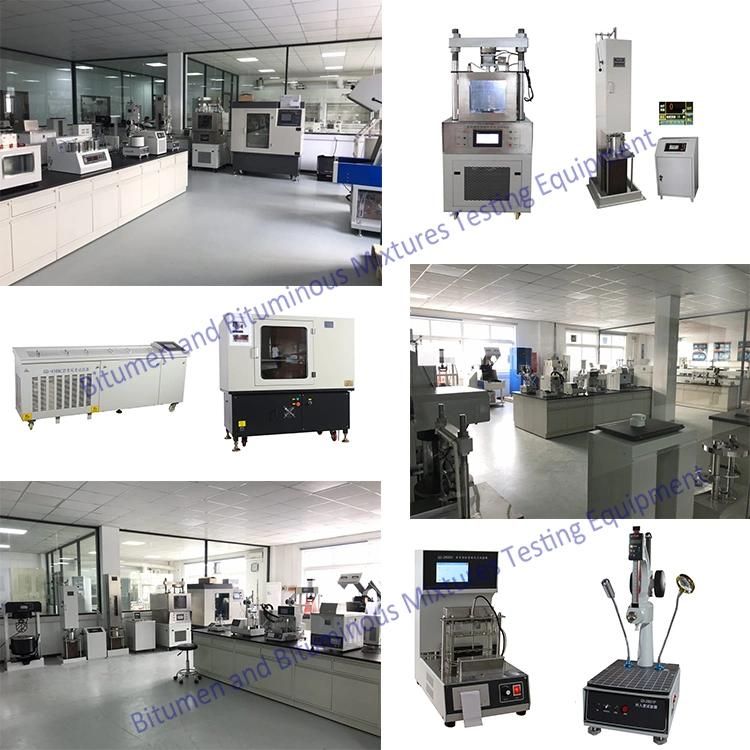

Our Bitumen Testing Laboratory:
