Automatic Asphalt Softening Point Meter (Ring and ball apparatus)

Zhejiang Tugong Instrument Co., Ltd.
  • Display：Digital
  • Power Source：AC220V
  • Measurment Temperature Accuracy：±0.1ºC
  • Automatically Increase of Temperature PE：5ºC
  • Timer Accuracy：1s
  • Tempurature Display：0.02ºC

Base Info

  • Model NO.：STLL-3, STLL-4, STLL-5, STLL-7
  • Transport Package：Standard Export Wooden Packing
  • Trademark：YF
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：5000set,Year

Description

1.Measurment temperature accuracy: ±0.1ºC2.Automatically increase of temperature per minute: 5ºC3.Timer accuracy: 1S4.Steel ball weight: 3.50±0.05g, diameter: 9.50mm5.Tempurature display: 0.02ºC6.Water in the beaker is agitated by magnetic stirrer 7. The test is performed in duplicate under closely controlled conditions8. Temperature control: Water is used as the bath medium for binders with softening points below 80oC.
Above this temperature glycerol is used in place of water.STLL-4 Full Automatic Asphalt Softening Point Meter (Ring and ball apparatus)
Automatic Asphalt Softening Point Meter (Ring and ball apparatus)
Application: The softening point is a fundamental property of asphalt.
Parameters:1.Measurment temperature accuracy: ±0.1ºC2.Automatically increase of temperature per minute: 5ºC3.Timer accuracy: 1S4.Steel ball weight: 3.50±0.05g, diameter: 9.50mm5.Tempurature display: 0.02ºC6.Water in the beaker is agitated by magnetic stirrer 7. The test is performed in duplicate under closely controlled conditions8. Temperature control: Water is used as the bath medium for binders with softening points below 80oC. Above this temperature glycerol is used in place of water.

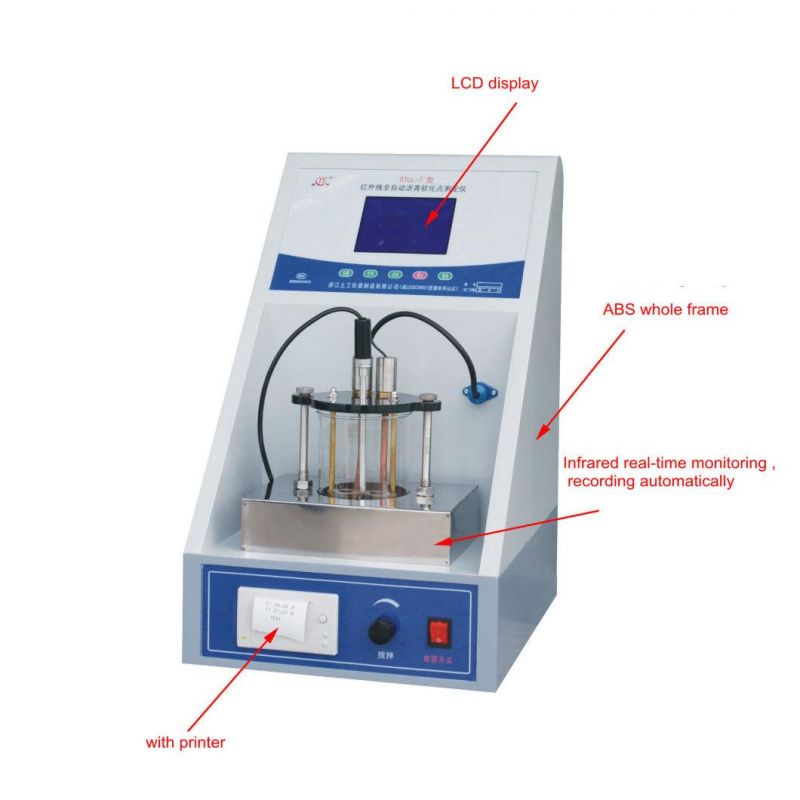

Features: ABS plastic frame, with infrared real-time monitor, automatically recording softening point temperature

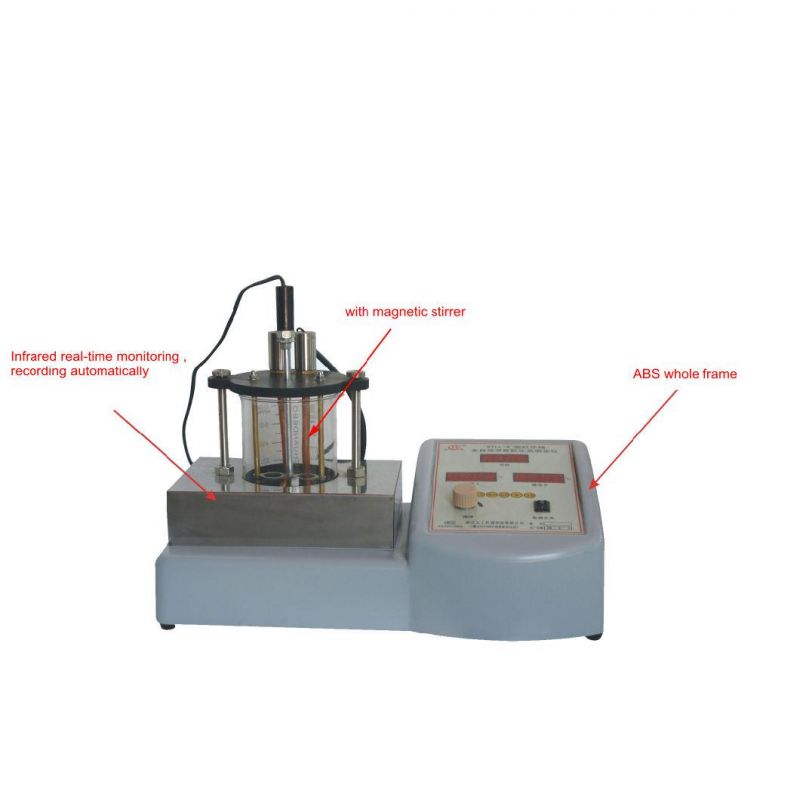

STLL-5 Infrared Ray Full Automatic Asphalt Softening Point Meter (Ring and ball apparatus)

Application: The softening point is a fundamental property of asphalt.
 Parameters:1. Suitable for testing 4 samples simutaneously2.Rea time monitor by infrared ray; record softening temperature and print data automatically;  3.Temperature measurement precision: ±0.1ºC4.Temperature rise: 5ºC/min;5.Temperature display resolution: 0.02ºC6. Temperature control: Water is used as the bath medium for binders with softening points below 80oC. Above this temperature glycerol is used in place of water.
Feature: ABS plastic overall casing.
STLL-7 Full Automatic Asphalt Softening Point Meter (Ring and ball apparatus)
Automatic Asphalt Softening Point Meter (Ring and ball apparatus)
Application: The softening point is a fundamental property of asphalt.
Parameters:
1. Power Supply Voltage: AC 220V (permissible error of -5% ~ +10%)
2. Temperature Range: 5ºC-- 90ºC(for those specimens whose softening points below 80oC, make distilled water as medium)
3. Resolution: 0.01 ºC
4. Blender: continuous stirring, speed adjustable
5. Heating rate: 3 minutes later, heating rate automatically adjusted to 5.0 ± 0.5ºC/min
6. Test results is LCD displayed and printable;
7. Heating power: 600W
8. Effective beaker volume: 800ml
9. Room temperature is required to be less than 35ºC, non-air-convection
10.Relative humidity: ≤85%
11.Power consumption: less than 700W
Company Information

Zhejiang Tugong Instrument Co., Ltd. is professional manufacturer of computerized, digitized and intelligent testing equipments. Our company has great-leap-forward development in the past thirty years since established in 1981. Company cover an area of 26,680 square meters, have 14 modernized standard workshops, be equipped with complete vehicle, gear, milling, grinding, and boring machine, have high independent research and development ability.
 Why choose us:

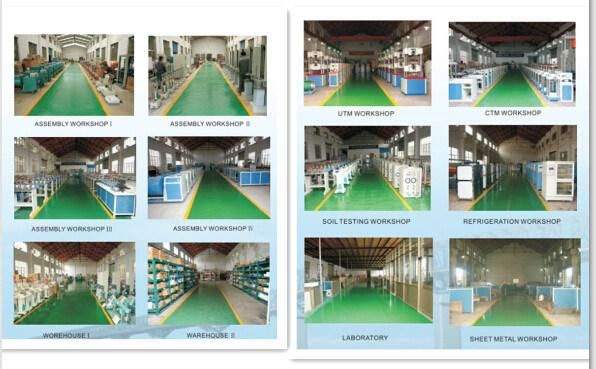

a.Neat and clean workshop
Automatic Asphalt Softening Point Meter (Ring and ball apparatus)
b. Good quality control
Automatic Asphalt Softening Point Meter (Ring and ball apparatus)
c.Competitive price, save your money.
d.Full range products, offer you one-stop purchase, save your time, save your delivery cost.
Automatic Asphalt Softening Point Meter (Ring and ball apparatus)


FAQ

What's the  delivery time?

10-20 working days after receiving full payment.Large machine need 20working days,small machine need 5-10 working days.

What's your payment terms?

T/T in advance,L/C,Western Union.

What's your trade terms?

We accept FOB,CIF,EXW,CNF and LC ect.

What's your services(warranty)?

We will send the user manual together with products,and warranty is 12 months.

Send us an inquiry and we will contact you soon!
