• Model NO.：GD-11132
• Air Supply：Nitrogen Cylinder
• Dimension：350*400*1770mm
• Maximum Power Consumption：600W
• Transport Package：Wooden Case for Fluorescent Indicator Adsorption H
• Trademark：GOLD
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-11132 Air Supply Nitrogen Cylinder Dimension 350*400*1770mm Maximum Power Consumption 600W Transport Package Wooden Case for Fluorescent Indicator Adsorption H Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

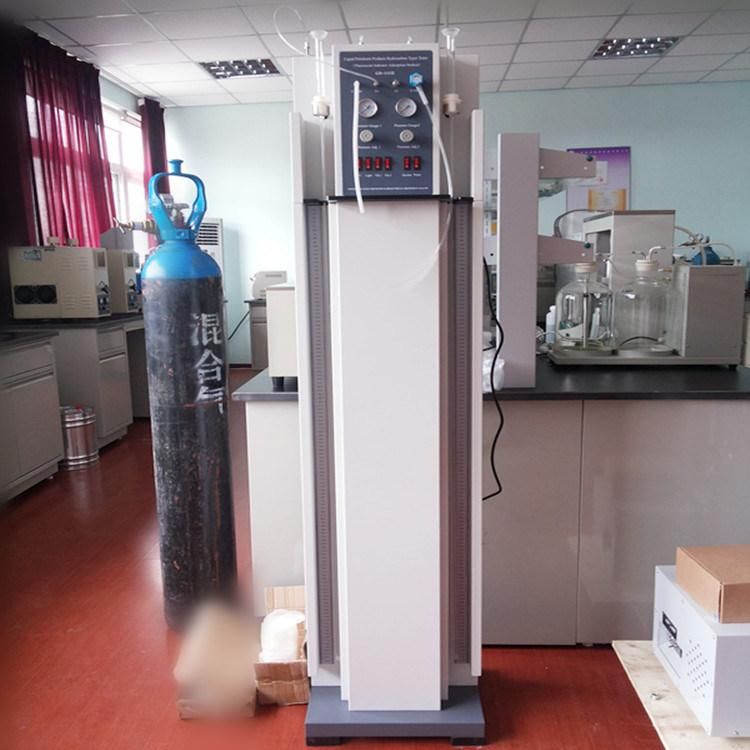

Petroleum Products Fluorescent Indicator Adsorption Hydrocarbon Tester ASTM D1319

ASTM D1319 determines saturates, olefins, and aromatics in petroleum samples, including those in the gasoline-range, by fluorescent indicator adsorption (FIA).  In FIA, a petroleum sample is placed on a silica gel column containing a mixture of fluorescent dyes, followed by solvent elution to separate the saturates, olefins, and aromatics, as well as the dyes.  Dye boundaries on the silica column, noted by ultraviolet light, are used to mark the appropriate fractions.  The length of each fraction is representative of its volume percent in the original sample.


I.Summary
Liquid petroleum products hydrocarbon tester is designed and made as per ASTM D1319 standard test method for hydrocarbon types in liquid petroleum products.
It is a kind of professional instrument determining percentage of aromatic hydrocarbon, olefin and saturated hydrocarbon in petroleum fraction.
The test sample can be: engine fuel, aviation fuel, and other fuel oils.


II. Main technical features
1. Vertical type and uni-body design. No need to install.
2. This Liquid petroleum products hydrocarbon tester is composed of air circuit system, vibration unit, scale indicator, illumination and UV-light detecting component.
3. Two pieces of imported precise glass tube adsorption column. Convenient for operation.
4. Equipped with a adsorption column cleaning unit. Solve the problem for cleaning the adsorption column.


III. Main technical specifications

1	Power supply	AC220V±5%,50Hz
2	Pressure regulating range of reducing valve	(0~400)kPa
3	Electric agitator	independently controlled for each way
4	Ultraviolet light source pipe	1220mm in length,wavelength is 365mm±5nm
5	Illuminating lamp	1220mm in length,power is 40W
6	Air supply	Nitrogen cylinder (or air compressor,compressed air bottle)
7	Ambient temperature	(5~35)ºC
8	Dimension	350mm×400mm×1770mm

IV: Petroleum & Oil Analyzer Petroleum Testing Instruments
Open Cup Flash Point Tester
Flash & Fire Point Tester for Petroleum Products
Closed Cup Flash Point Tester
Engler Viscometer
Water Content Tester
Rotational Viscometer
Kinematics Viscometer
Distillation Tester
Density Tester
Rust and Corrosion Tester
Sulphur Content Tester
Acid and Alkali Tester
Dropping Point Tester
Demulsibility Characteristics Tester
Ash Content Tester
Aniline Point Tester
Low Temperature Tester(Including solidifying point, cold filter plugging point, pour point, cloud point, and freezing point)
Residue Carbon Tester
Existent Gum Tester
Vapor Pressure Tester
Bomb Calorimeter
OCTANE & CETANE ANALYZER
Lubricating Oils Foaming Characteristics Tester
Petroleum Products Color Tester
Petroleum Wax Oil Content Tester
Automatic Interfacial Tension Tester
Liquid Petroleum Products Hydrocarbon Tester
Lubricating Oil Air Release Value Tester
Petroleum Products and additives Mechanical impurities tester
