• Model NO.：STLLJ-1
• Transport Package：Plywood Case
• Specification：116X77X155
• Trademark：YF
• Origin：China
• HS Code：9031809090

Basic Info.

Model NO. STLLJ-1 Transport Package Plywood Case Specification 116X77X155 Trademark YF Origin China HS Code 9031809090

Product Description

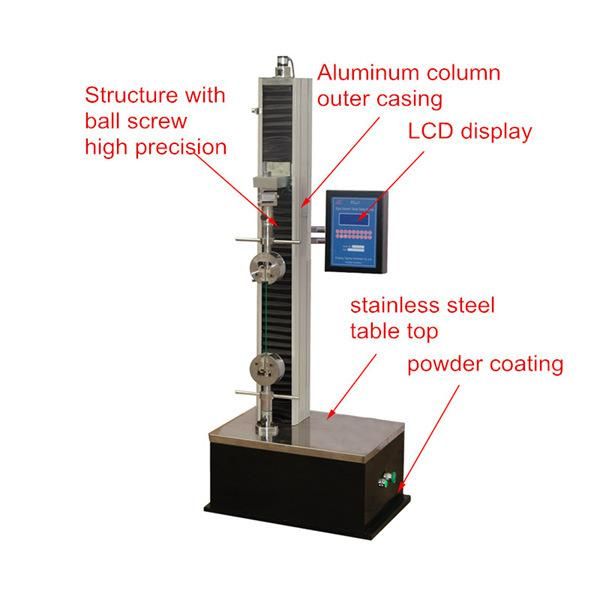

STLLJ-1 Digital Electronic Tensile Testing Machine

Function and Usages:

This machine is mainly used various nonmetal and composite material for conventional mechanical performance index test. Professional design of automatic control and data acquisition system, realized the data acquisition and control process of all digital adjustment. It can do tensile, compression, and bending machine to materials.                 Using alternating current servo motor as a power source, this testing machine adopts the single chip displaying the test data and test condition real-timely, which through the single chip realized the automatically control to test procedure. The machine can be of various metals, non-metallic and composite mechanical properties of materials testing and analysis, widely used in aerospace, petrochemical, machinery manufacturing, electric wires, cables, textiles, fibers, plastics, rubber, ceramics, food, medicine packaging, plastic pipes, plastic doors and windows, geotextile fabric, film, wood, paper, metal materials and manufacturing, and it also applies to colleges and universities teaching demonstration work.


Max. Tension power	1000N
Resolution of beam displacement	0.01mm
Supply power	0.4KW, 220V, 50Hz
Beam speed	adjustable from 0.1 to 500mm/min
Valid testing space	500mm
Working environment	temperature 10-30ºC, humidity less than 80%
Feature	upright column housed by aluminium section
