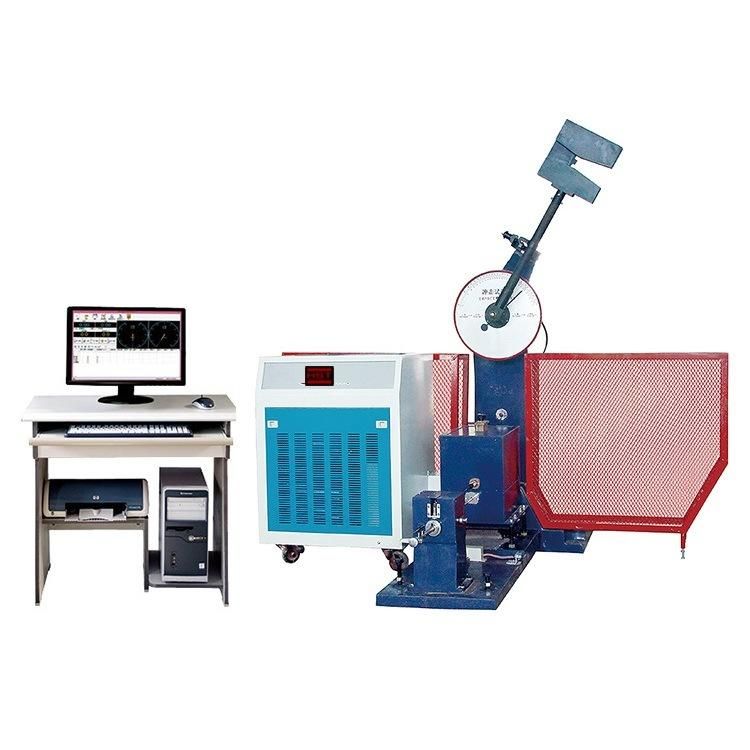

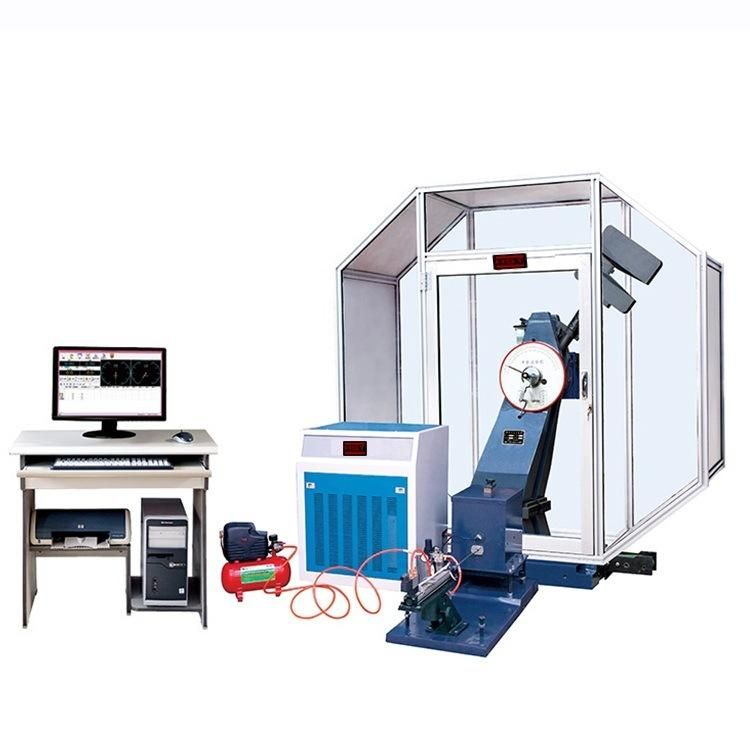

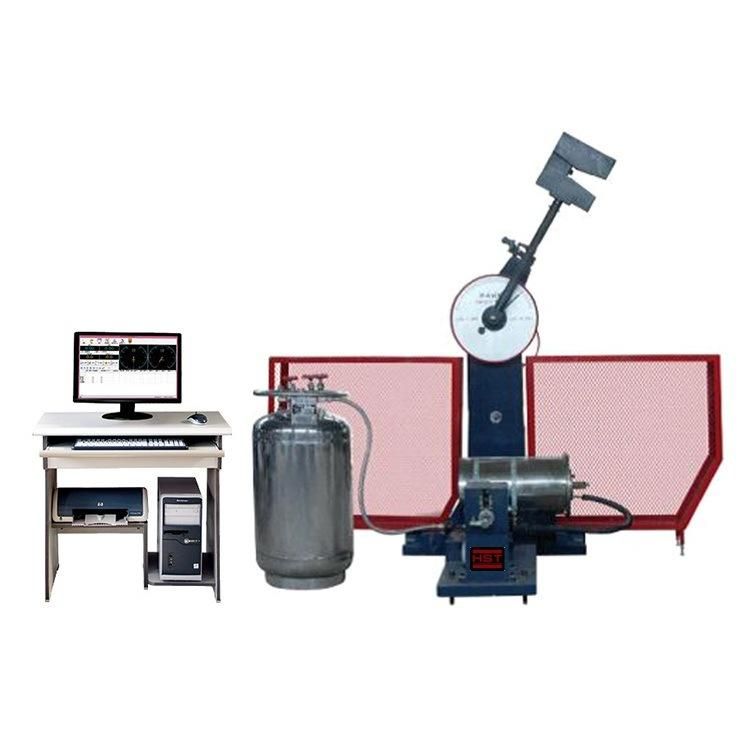

Liquid Nitrogen Cooling Low Temperature Automatic Impact Tester with -196 Degree

Jinan Kason Testing Equipment Co., Ltd.
  • Type：Impact Testing Machine
  • Maxcapacity：300j
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Computer Display

Base Info

  • Model NO.：JBDW-300C
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC380V
  • Transport Package：Plywood Exporting Package
  • Specification：350kg, 1.35CBM
  • Trademark：HST
  • Origin：Jinan, Shandong, China
  • HS Code：9024109000
  • Production Capacity：800 Set,Month

Description

JBDW-300CJBDW-500Cimpact energy150J300J250J500JValue of every grid2J1J5J2.5JMoment of pendulum(N.m)
 160.7695
 80.3848
 267.9492
 133.9746
 The distance between the
pendulum shaft and impact  point750mm850mmImpact speed5.2m/s5.4 m/sPre-rising angle of the pendulum150°Specimen bearer span40+0.2mmRound angle of the jawR1-1.5mmRound angle of impact edgeR2-2.5mm,R8±0.05(special order)mmAngle accuracy0.1°Standard specimen dimension10mm×10(7.5/5)mm×55mmThickness of impact knife16mmDip angle of supporting surface of supports11°
 Cooling wayliquid nitrogen refrigerationCapacity of sample box10Range of low temperatureroom tempeature-196°CPrecision of controlling temperaturefluctuation ±1.5°C grades 2°C
 Speed of sending specimen≤2SPower supply3phs, 380V, 50Hz Or 220V,60HzDimensions (mm)2200 ×1500×19002200 ×1500×1900Net Weight (kg)850950Liquid Nitrogen Cooling Low Temperature Automatic Impact Tester with -196 DegreeLiquid Nitrogen Cooling Low Temperature Automatic Impact Tester with -196 DegreeLiquid Nitrogen Cooling Low Temperature Automatic Impact Tester with -196 DegreeLiquid Nitrogen Cooling Low Temperature Automatic Impact Tester with -196 DegreeLiquid Nitrogen Cooling Low Temperature Automatic Impact Tester with -196 DegreeLiquid Nitrogen Cooling Low Temperature Automatic Impact Tester with -196 DegreeLiquid Nitrogen Cooling Low Temperature Automatic Impact Tester with -196 DegreeLiquid Nitrogen Cooling Low Temperature Automatic Impact Tester with -196 DegreeLiquid Nitrogen Cooling Low Temperature Automatic Impact Tester with -196 DegreeLiquid Nitrogen Cooling Low Temperature Automatic Impact Tester with -196 Degree
