1000kn Ctm Construction Material Compression Testing Machine

Shanghai Civil & Road Instrument Co., Ltd.
  • After-sales Service：24 Hours Online Services
  • Warranty：1 Year
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：650kgs
  • Type：Compression Testing Machine
  • Maxcapacity：1000kn

Base Info

  • Accuracy Grade：1
  • Load Way：Hydraulic
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：650kgs
  • Power Source：AC220V or AC380V
  • Oil Cylinder Position：Under
  • Model：Stye-1000
  • Outside Size：900*400*1090mm
  • Max. Piston Stroke：90mm
  • Diameter of The Pistoner Pr：Dia 310mm
  • Max. Piston Lift Speed：50mm,Min
  • Piston Free Back Speed：20mm,Min
  • Net Weight：650kgs
  • Noise：Below 80dB
  • Transport Package：Wooden Case
  • Specification：950X400X1160mm
  • Trademark：SHTG
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：100PCS,Month

Description

1000kn Ctm Construction Material Compression Testing MachineFeatures:
Efficient hydraulic power packs
Economic machines ideal for site use
Designed to meet the need for a simple, economic  and reliable means of testing concrete.The dimensions of the frame allow the testing of cylinders up to320 mm long x 160 mm diameter, and cubes 200mm,150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any arbitrary size.
Digital readout is a microprocessor controlled instrument which is fitted as standard to all digital machines in the range.
Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.


Specification:

ModelSTYE-1000Max. testing power1000KNMeasuring range0-1000kNRelative indication error±1%Size of the bearing plate300×250mmMax. distance between the up and down bearing plate310mmMax. piston stroke90 mmRated pressure of the hydraulic pump40MPaPowerAC220V±10% or AC380±10%Outside size900×400×1090mmMax. piston lift speed50mm/minPiston free back speed20mm/minNet weight650KGSNoise≤80Db1000kn Ctm Construction Material Compression Testing Machine

Packing & Shipping
Packing Material: Out packing:Standard export wooden case; Inner packing:With careful stretch film+ hard cardboard.

Packing Method: Horizontal Packing to saving more shipping cost.
You can specify other shipping methods such as Airfreight, FEDEX or DHL.
We shall let you know about the shipping cost after receiving on your order.
Or tell us your own FEDEX/DHL account number, so the delivery cost can be charged directly from your account.

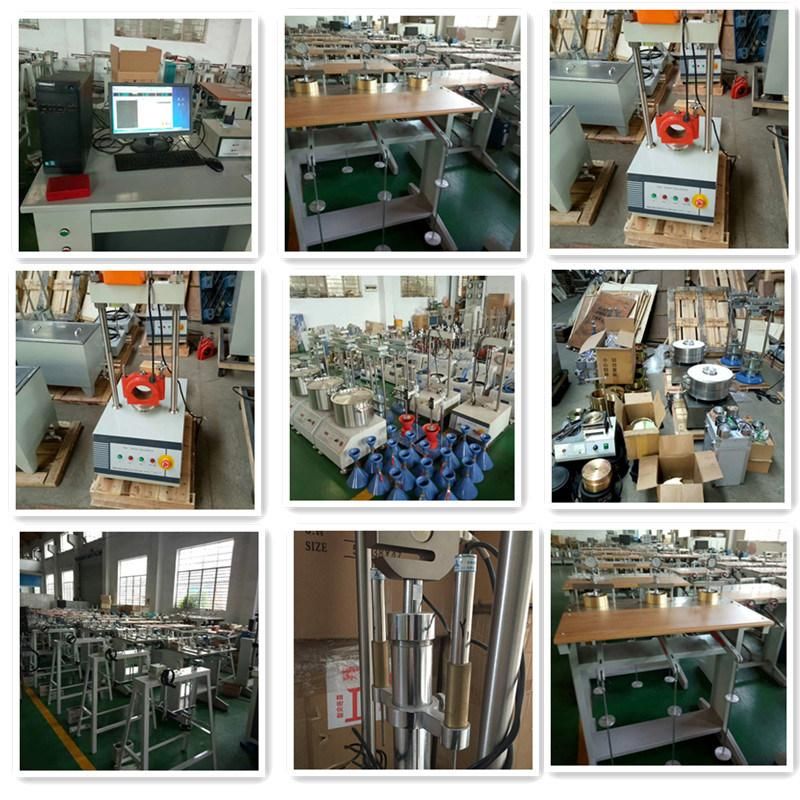

Company Information

1000kn Ctm Construction Material Compression Testing MachineOur Services
We will make a reply within 24 hours
Apart from standard product portfolio, we also have expertise in building customized machines for its customer's individual requirements.
we have the resources, skills, and knowledge to support your business, providing the expertise you need for accurate, reliable and consistent sample testing. pre-sales advice and post-sales technical support is always close at hand.
We supply training for free, with comprehensive technical and applications support.
