• Model NO.：WEW
• Accuracy Grade：0.5
• Load Way：Mechanical Load
• Loading Method：Dynamic Load
• Display：Computer
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Trademark：CHENGYU
• Origin：China
• HS Code：9024101000
• Production Capacity：5000

Serial number

Project name

Parameter

1

Maximum test force kN

1000

2

Test force relative error

±1% of the indicated value

3

Test force measurement range

4% to 100% of the maximum test force

4

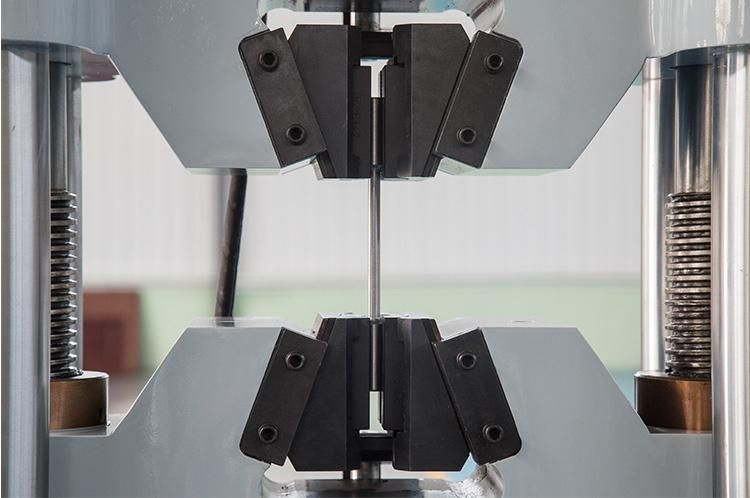

Clamping method

Manual clamping or hydraulic clamping

5

Round specimen clamping diameter range mm

Φ13~Φ60

6

Flat specimen clamping thickness range mm

0~40

7

Flat specimen clamping width mm

110

8

Maximum tensile test space mm

620

9

Maximum compression test space mm

550

10

Control cabinet dimensions mm

560×550×1200

11

Mainframe dimensions mm

900×740×2400

12

Motor power kW

2.5

13

Host quality kg

3500

14

Column clearance (mm)

580

15

Upper and lower platen size mm

202*202

16

Curved stick spacing mm

30-400

17

Bending rod width mm

140

18

Allowable bending mm

100

19

Maximum piston stroke mm

200

20

Maximum moving speed of the piston mm/min

About 80

21

Test space adjustment speed mm/min

About 150



6

Flat specimen jaw

0 -20 mm , 20-40mm



7

Compression attachment



1 set



8

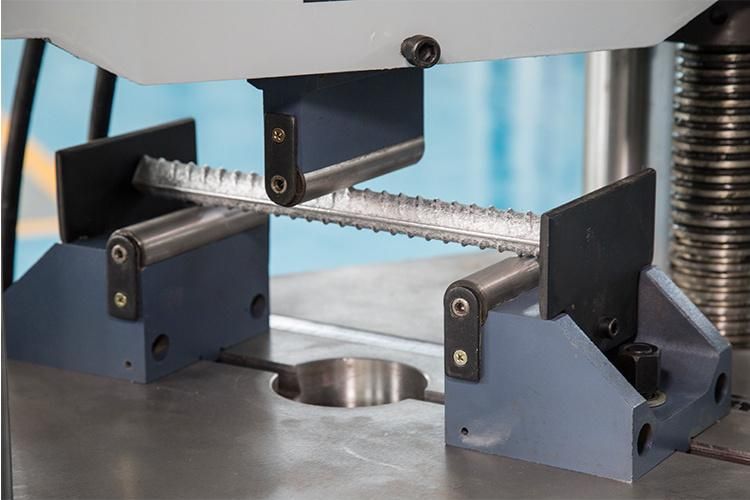

Bending attachment



1 set



9

random document



1 set



IV. Images show



















FAQ

1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C
