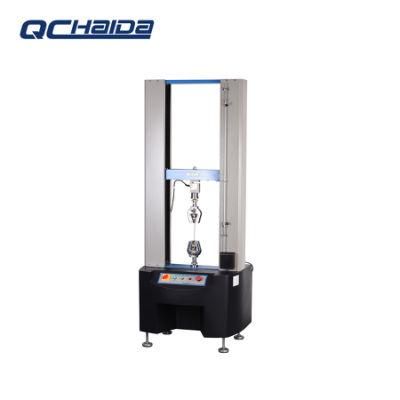

Customize Universal Tensile Creep Lab Test Instrument

Dongguan Haida Equipment Co., Ltd.
  • Warranty：One Year
  • Type：Tensile Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load

Base Info

  • Model NO.：HD-B615-S
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Test Speed：0.1 to 500 mm,Min
  • Stroke：1000mm
  • Elongation Accuracy：0.001mm
  • Screw：High Precise Ball Screw
  • Delivery Time：15 Days After Receive The Deposit
  • Load Resolution：1,250, 000
  • Load Cell：Celtron Sensor
  • Motor：Panasonic Servo Motor
  • Control and Display：Computer
  • Transport Package：Strong Wooden Case
  • Specification：ASTM D903 GB,T16491 GB,T1040 GB,T8808 GB13022 GB,T
  • Trademark：HAIDA
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：1000sets,Year

Description

ItemDescriptionMax. Force5000 kg (50KN)Load cellGermany brand load cell for high accuracyControl systemPC with windows 7 systemMotorPanasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rodForce readingkgf, Ibf, N, KN, T etcStoke1100mm including fixtureLoad cell Resolution1/250,000Load Precisionwithin ±0.5%Test speed0.01~300mm/min (adjustable)SoftwareTM 2101Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…Safety featuresE-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
 APPLICATIONS

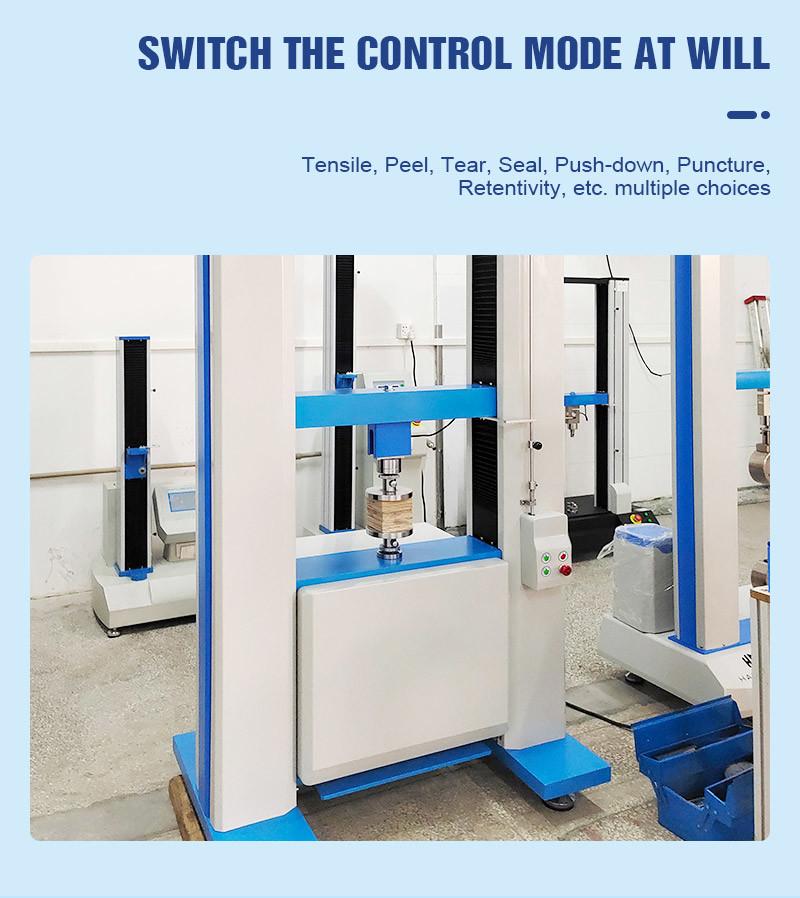

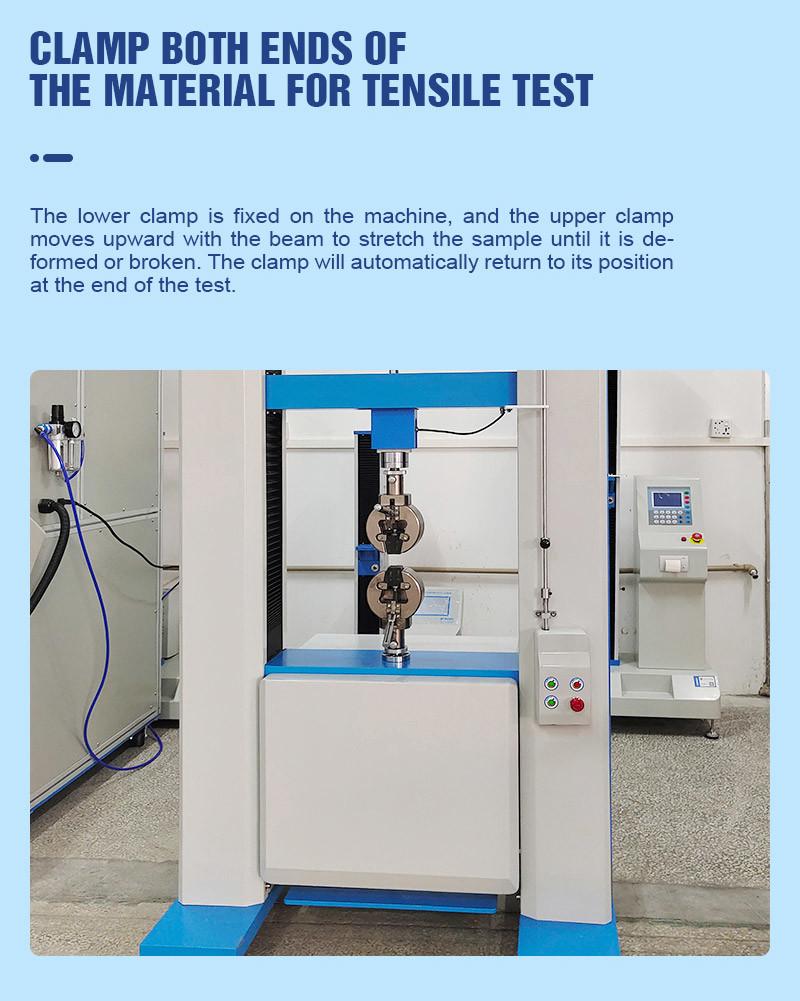

  1. Deformation under defined load: Test deformation under defined load of tested sampleLoad under defined deformation: Test load under defined deformation of tested sampleSoftware can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps



Customize Universal Tensile Creep Lab Test Instrument
Customize Universal Tensile Creep Lab Test Instrument

Company Information:

Customize Universal Tensile Creep Lab Test Instrument

Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

Customize Universal Tensile Creep Lab Test Instrument

Customer Feedback
Customize Universal Tensile Creep Lab Test InstrumentCustomize Universal Tensile Creep Lab Test Instrument

FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
