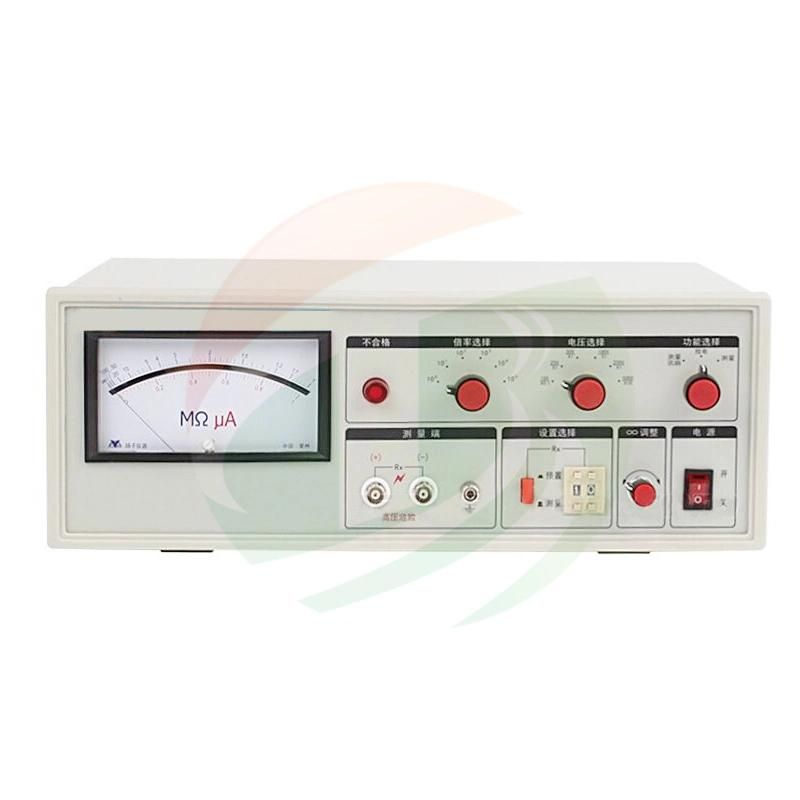

Lithium Ion Battery Cell Short Circuit Tester

XIAMEN TOB NEW ENERGY TECHNOLOGY CO., LTD.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Type：Finished Batteries Tester
  • Application：Lithium-ion Battery
  • Customized：Non-Customized
  • Transport Package：Wooden Box

Base Info

  • Model NO.：TOB-2681A
  • Trademark：TOB
  • Origin：China
  • Production Capacity：10000 Set,Month

Description

Model

Battery Short Circuit Tester        TOB-2681A

Source voltage

AC110V/220V 50/60HZ

Warranty

One year limited with lifetime support

Voltage test

DC 0-15V, Resolution 10mv

Resistance range

10^5Ω-10^13Ω

Resistance test accuracy

R<10^12Ω5% R≥10^12Ω10%

Display

Mirror header indicating

Testing range setting

Manual

Testing speed

≤0.5 second

Dimension

380*140*320mm

Weight

7kg
