• Transport Package：Standard Export Wooden Packaging
• Trademark：CYKY
• Origin：Zhengzhou Henan China
• HS Code：8402111000
• Production Capacity：200 Sets Per Month

Basic Info.

Transport Package Standard Export Wooden Packaging Trademark CYKY Origin Zhengzhou Henan China HS Code 8402111000 Production Capacity 200 Sets Per Month

Product Description

Coated film deposition thickness monitor, complete data anti-interference

Application of Film thickness monitor:
It is suitable for measuring the thickness of vacuum coating such as resistance evaporation, electron beam evaporation, magnetron sputtering and ion plating. Through the touch screen and digital tube display, you can get complete deposition data, using more advanced software and hardware equipment, further improving the anti-interference ability of the instrument.

Technical features of Film thickness controller:

• Full touch screen operation display, simple and easy to use;
• Two sets of relay output, reaching the set thickness to automatically close the baffle / evaporation source;
• Real time display of rate, thickness, coating curve and coating time;
• RS232/RS485 interface

Technical parameters of Film thickness controller:

Crystal frequency	6MHz (Optional 2.5M 3M 5M 9M crystal)
Display mode	5 "color touch screen + digital tube display rate and solid thickness
Operating mode	Touch screen
Thickness display range	0-99μ9999Å
Thickness display resolution	1Å(aluminium)
Rate display range	0-999.9Å
Rate display resolution	0.1Å/s
Number of coating layers	99
Probe input	4 way (choose one to work)
Tool factor	0.01-99.99
Material storage	257kinds+10 customization
Communication	RS232/RS485
Baffle / source control	2 sets of contacts, reaching the thickness shutoff / evaporation source
Coating display	Rate curve / value
Coating circuit times	99
Size	480×250×89mm(2U 19")

Special features of Film thickness controller:
(1) With manual stop coating function
(2) It can display the coating layer, material and the percentage of oscillation frequency using crystal
(3) Display the real thickness, material and layer after coating

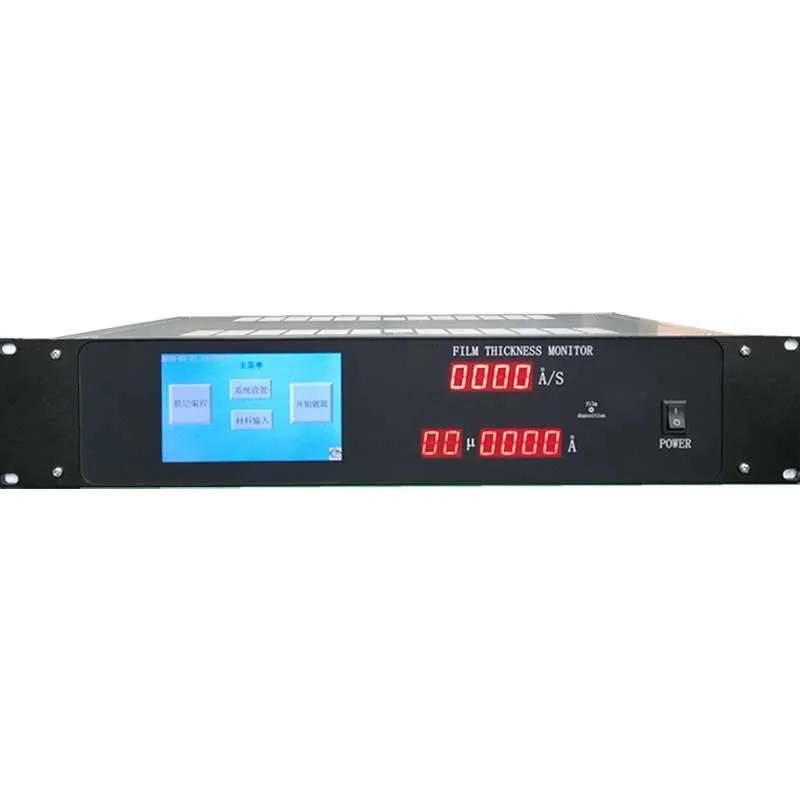

Product pictures of Film thickness monitor:




Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.





Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service
