• Model NO.：TOB-FX-10

Model

TOB-FX-10

Voltage supply

220V/50HZ, can be customized

Power

1.6kw

Air Pressure

0.4-0.8Mpa

Display screen

7.5 inch touch screen, 3-axis PLC programmer

Suitable for

18650 battery

Receiving channel

11 channel, 10 sorting and matching channel,

1 unqualified channel

Internal resistance setting

0mΩ-999.9 mΩ

Voltage setting

0-6V

Weight

<200KG

Code sweeping function

No, can be customized

Production efficiency

Without code sweeping, about 5000pcs/h

With code sweeping, about 3000pcs/h

Feeding

By hopper, 500pcs cells one time

External connection

Customizable automatic connection padding machine

Tester

 Standard tester: HOPETECH HK3560

High speed tester

Voltage accuracy 0.00005V

Internal resistance precision 0.01 mΩ

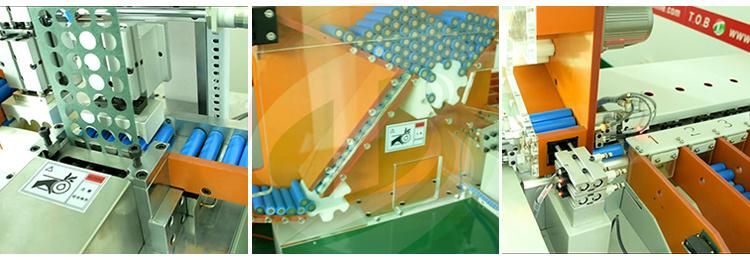

Motion device

Step shifting using closed-loop stepper motor, and the positioning is accurate.

The synchronous belt conveys the cell to prevent the cell surface damaged

Advantage

• Automatic collection the production quantity to show current production efficiency
• Test data can be stored in U disk
• Customizable scan code and database data docking
• Optional cell dynamic tester, Practical embodiment the quality and load performance of cell
• The equipment debugging is simple, easy to learn and easy to understand, with fault alarm

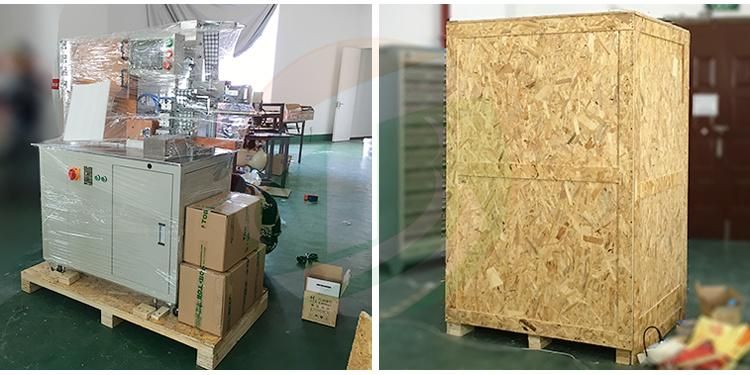

Package size

L1650*W1250*H1690mm

Weight

About 350kg
