En-344 Automatic En Whole Shoe Sole Flexing Test Machine (GW-005B)

GREAT WIN INSTRUMENT CO., LTD.
  • Max Diameter of Workpiece：1000mm
  • Mass Scope of Workpiece：<900kg
  • Type：Bending Testing Machine
  • Maxcapacity：Outsole Belt Flexing Testing Machine
  • Accuracy Grade：1
  • Load Way：Electronic Load

Base Info

  • Model NO.：GW-005B
  • Loading Method：Static Load
  • Display：Digital
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Electric Control
  • Packaging：Wooden Case
  • Export Markets：Global
  • Model No：Gw-005
  • Sample Number：1 PCS
  • Bending Angle：90 Deg
  • Testing Speed：0-150cpm Adjustable
  • Counter：LED Display
  • Dimension：100*33*50cm
  • Transport Package：Wooden Case
  • Specification：100*33*50cm
  • Trademark：Great Win
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：500 Pieces,Year

Description

Basic Info.

Model NO. GW-005B Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-005 Sample Number 1 PCS Bending Angle 90 Deg Testing Speed 0-150cpm Adjustable Counter LED Display Dimension 100*33*50cm Transport Package Wooden Case Specification 100*33*50cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

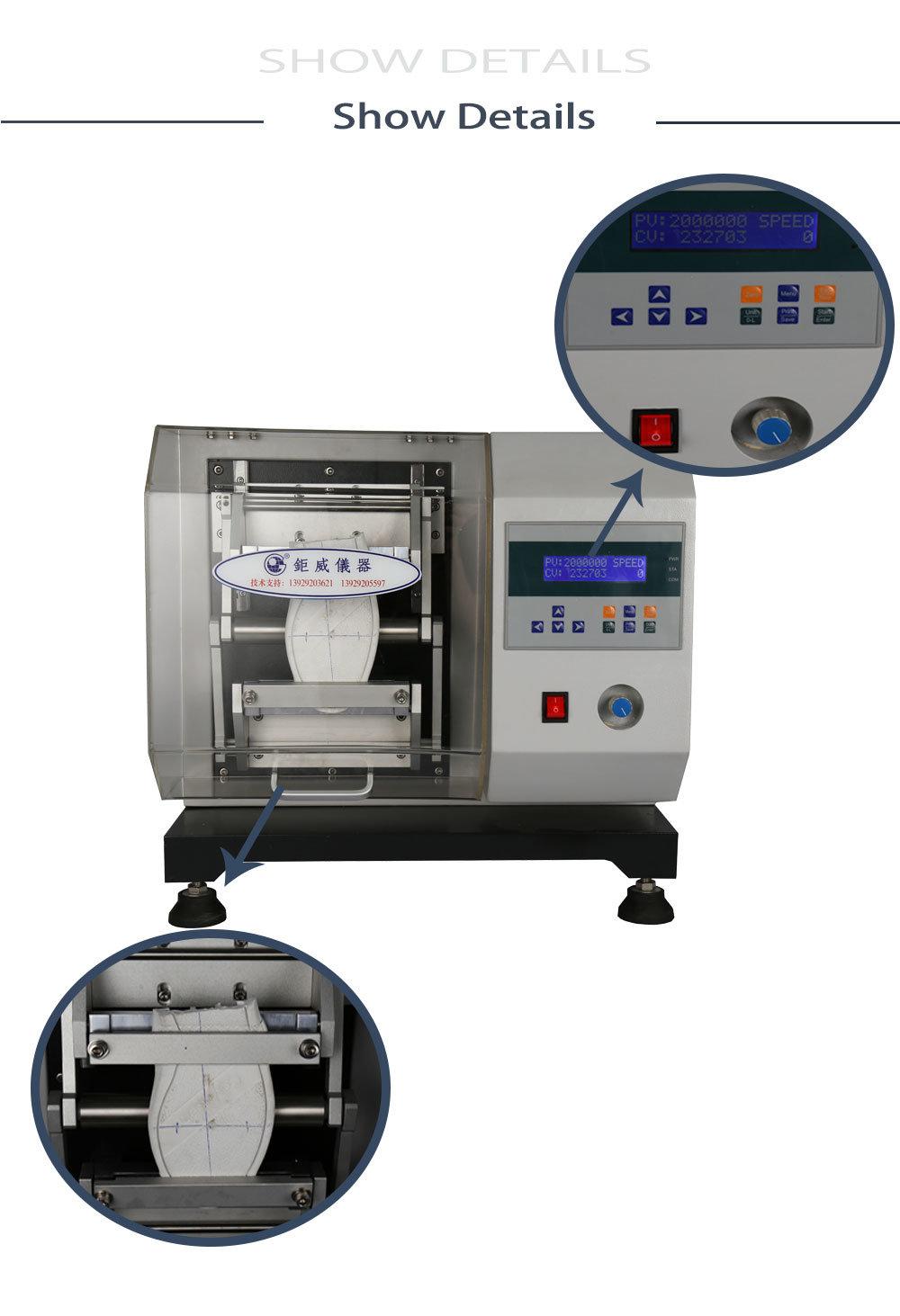

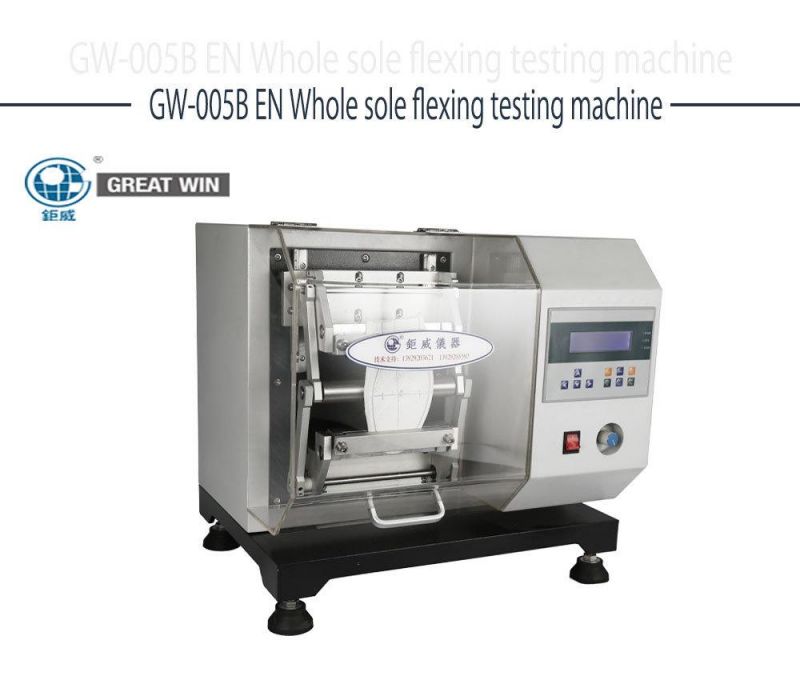

 EN Whole sole flexing testing machine/Equipment( GW-005B)


•Brief introduction:
This machine is used to determine the resistance of materials to cut growth during repeated flexing. It is especially applicable to outsoles of footwear including sole constructions.

•Technical Specifications:

ModelGW-005B EN Whole sole flexing testing machine
Bending Angle90 °
Circular shaft diameter¢30 mm
Bending speed125~150cpm adjustable
Grip width144mm
Also try
 		 1 sole
CounterLED 0-999999
Size
 		560 * 560 * 450mm

Weight: about40kg

Power supply
 		AC220V, 3A



•Standard for :
EN-344, SATRA TM161, ISO17707, GB/T20991


•Attached accessories:
1pc hole puncher     1pc hex wrench
