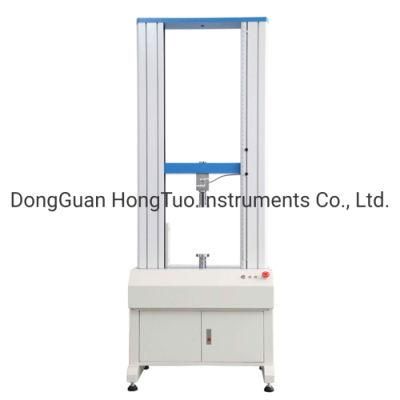

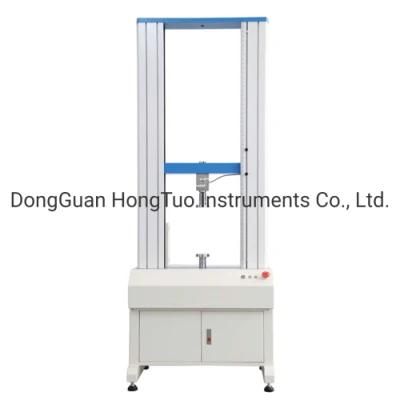

• Model NO.：WDW-50D
• After-sale Customer Service：Yes
• Stock：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• HS Code：9027809900
• Production Capacity：300 Sets,Month

BrandHongTuoModelWDW-D-002-005-01-02-05-1-2-5-10-20-30-50CapacityKN0.020.050.10.20.512510203050KG251020501002005001000200030005000lb            Unit switchingG,Kg,lb,N,KNDisplacement unit switchingInch  cm  mmTest machine level0.5 classEffective force range0.2%~100%FSForce accuracyWithin ±0.5%Force decomposition1/300 000Force Power magnificationFull automatic shift switchingDisplacement resolution0.005mmDisplacement accuracyWithin ±0.5%Deformation measurement range0.2%~100%FSDeformation indication accuracyWithin ±0.5%Large deformation measurement range(10~1000)mmLarge deformation resolution0.05mmLarge deformation indication error limitWithin ±0.5%Maximum test speed500mm/min;optional maximum 1000mm/minMinimum test speed0.01mm/minSpeed accuracyWithin ±0.5%Beam travel

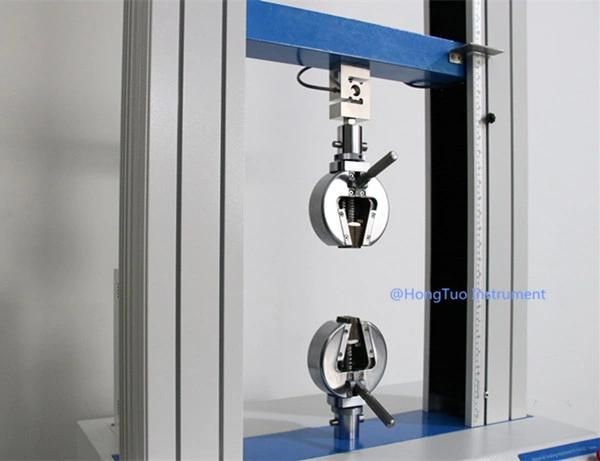

Measuring heightstandardNo grip testing stroke:330mm;With grip testing stroke:800mmoptional//Effective widthstandard420mmoptional650mmFixture configurationOne set of tensile grip;can choose other gripsReturning methodManual or automatic selection, automatically return after the test ends or manually return to the initial positionStop method1.Maximum break value automatically stop     2.Upper and lower limit safety setting stopSafety devices1.Mechanical limit switch protection     2.Emergency stop switch emergency brakeOverload  protectionOver 10% of maximum load, automatic machine protectionAccessories1 power cord; 1 test software program CD; 1 data cable; 1 manual; 1 certificateOptional accessoriesAnti-splash device (protective door); computer; printer; small deformation metal extensometer, large deformation displacement tracker, T-type workbench;Power supply220V.AC/ 50HZ; 110V.AC/60HZMain host size/ weightLength*Width*Height:750mm*500mm*1650mm / around 165KGPacking size / weightLength*Width*Height:850mm*600mm*1800mm / around 203KG

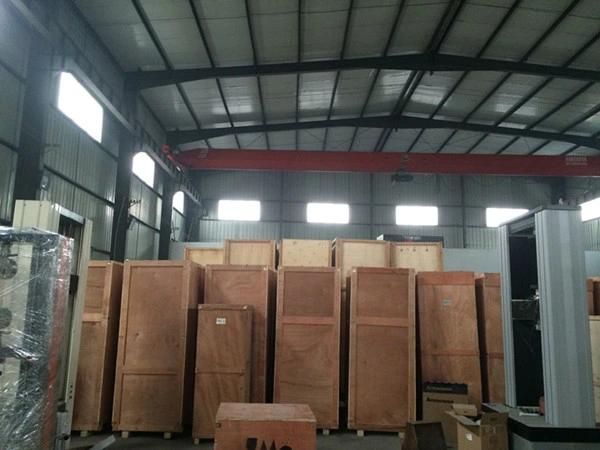

Packaging & Shipping




Company Information

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
