• Model NO.：GDTF-240,240
• Weight：100-500Kg
• Power Source：220,380V
• Output voltage waveform distortion rate：< 1.0%
• Quality factor of the equipment：Q >50
• Quality factor of GIS in full load test：Q > 20 ( Related to load)
• Frequency adjusting range：30-300Hz
• protection：Over-voltage, over-current, zero-start
• warranty：1 year
• Transport Package：Standard Export Wooden Box
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan, China
• HS Code：9030899090
• Production Capacity：5000sets,Year

Basic Info.

Model NO. GDTF-240/240 Weight 100-500Kg Power Source 220/380V Output voltage waveform distortion rate < 1.0% Quality factor of the equipment Q >50 Quality factor of GIS in full load test Q > 20 ( Related to load) Frequency adjusting range 30-300Hz protection Over-voltage, over-current, zero-start warranty 1 year Transport Package Standard Export Wooden Box Specification ISO, SGS Trademark HV Hipot Origin Wuhan, China HS Code 9030899090 Production Capacity 5000sets/Year

Product Description

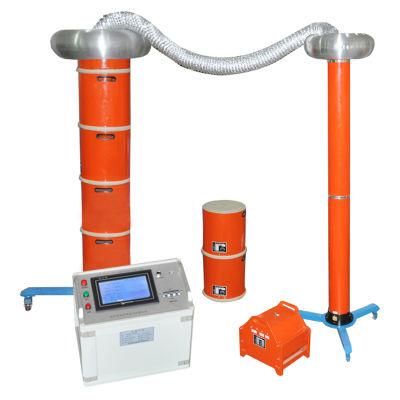

GDTF-240/240 Variable Frequency AC Resonant Test System for 145KV GIS


Product Description

GDTF-240/240 is applied for hipot test to 145KV GIS with 6 big intervals and 6 small intervals( the big interval is 1000pF, the small interval is 500pF), the capacity is less than 0.009uF, the testing frequency is 30-300Hz, the testing voltage is 220KV and the testing time is 1min.



Advantages in the power system application :

1. Rapidly reduce the required power supply capacity. The power source of series resonance uses the resonant reactor and test object capacitance to generate high voltage and high current. In the whole system, the power supply only need to supply the part of active loss. Therefore, required test power is the 1 / Q of test capacity.

2. Weight and volume of the device are greatly reduced.

3. The output voltage waveform is improved. Resonant power source is resonant filter circuit, which improve the distortion of output voltage waveform and obtain good sine wave. It greatly prevent the test object free from breakdown of harmonic peak.

4. To avoid large short-circuit current burn the fault point. In the series resonant state, when the test objectinsulation weakness is breakdown, circuit detune immediately, and the loop current rapidly drop to 1 / Q of normal testing current. While tested by parallel resonant or test transformer, the breakdown current rise dozens of times immediately. So series resonant can find the insulation weakness effectively but not exist large short-circuit current breakdown the fault point.

5. Any recovery overvoltage is not appeared. When the test object breakdown, due to resonance loss the resonant conditions, high voltage also disappear immediately, arc extinguish at once, and the time ofrecover voltage is very long, it will disconnect power supply before reaching the flashover voltage. The voltage recovery process is a kind of energy accumulation of intermittent oscillation, the process is long and any recovery overvoltage will not appeared.

Specifications

GDTF - means manufacturer's code.

240kVA means the maximum rated capacity of the equipment, the unit is kVA

240kV means the output voltage of the equipment, the unit is kV.

1. The rated voltage:
240kV-meet 145KV GIS with 6 big intervals and 6 small intervals AC hipot test.
Working frequency: 30~300Hz, testing voltage≤220kV, testing time 1min
2. Output voltage waveform distortion rate: < 1.0%
3. Allowing continuous working time: rated condition one time 60s.
4. Quality factor of the equipment: Q >50
5. Quality factor of GIS in full load test: Q > 20 ( Related to load)
6. Input power supply: Single phase 220V or three phase 380V;
7. Frequency adjusting range: 30-300Hz
8. System measuring precision: 1.5%

9. Over-voltage, over-current, zero-start protection



Parameters for Individual Parts

1. Variable frequency power supply  GDTF -15kW/220/380V  (1 set)

• Rated output capacity: 15kW
• Working power supply: 220/380±10%V(single/3-phase), power frequency
• Output voltage: 0-400V, single phase
• Rated input current: 37.5A
• Rated output current: 37.5A
• Voltage resolution: 0.01kV
• Voltage measuring accuracy: 1.5%
• Frequency adjusting range: 30-300Hz
• Frequency adjusting resolution: ≤0.1Hz
• Frequency stability: 0.1%
• Working time: constant working of 5mins under rated capacity.
• Temperature rise: ≤ 65K after constant working of 5mins under rated capacity.
• Noise: ≤50dB
• Weight: approx. 18kg.

2. HV Reactor  GDDK-40kVA/40kV  (6 sets)

• Rated capacity: 40kVA
• Rated voltage: 40kV
• Rated current: 1A
• Inductance: 100H (per set)
• Quality factor: Q ≥30 (f=45Hz)
• Type: Dry type
• Weight: approx. 45kg

3. Exciting Transformer  GDJL-15kVA/15kV/0.4kV (1 set)

• Rated capacity: 15kVA
• Input voltage: 0-400V, single phase
• Output voltage: 15kV
• Type: Dry type transformer
• Weight: approx. 58kg

4. Capacitive Divider  GDFR-120kV/1000pF   (2 sets)

• Rated voltage: 120kV
• Capacitance: 1000pF
• Dielectric loss: tgσ ≤0.5%
• Divider ratio: 3000:1
• Measuring accuracy: 1.5%
• Weight: approx. 26kg
