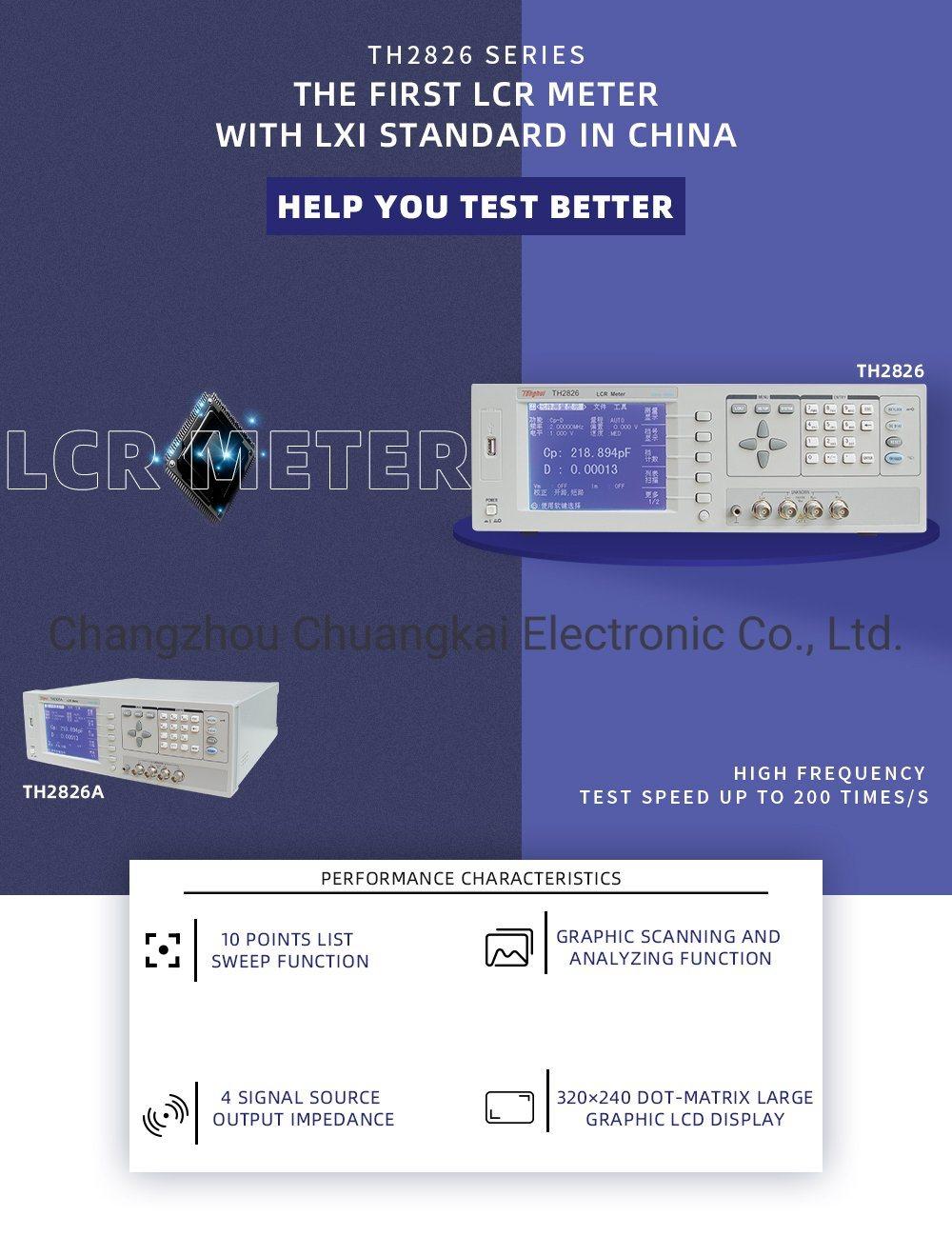

Th2826A 2MHz Digital Lcr Bridge Meter Resistance Tester ESR Tester

Changzhou Chuangkai Electronic Co., Ltd.
  • Function：Measurement of Lcr
  • Display：320X240 DOT-Matrix LCD Display

Base Info

  • Model NO.：TH2826A

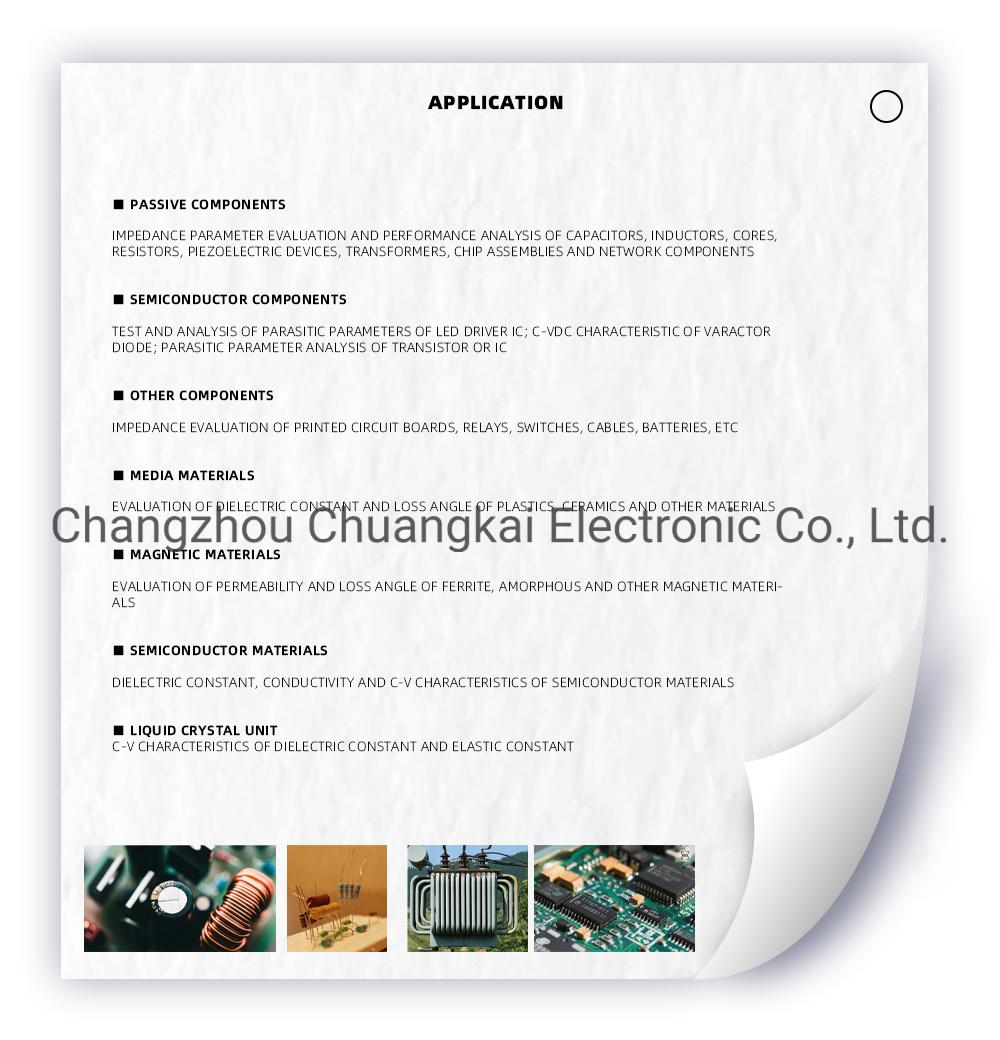

  • Usage：Electric Component Tester, Gas Sensor Tester, Catalytic Element Tester, Lightning Protection Device Tester, Lcr Meter
  • Type：Lcr Meter
  • Environment：Room Temperature
  • Warranty：With Warranty
  • Power Source：DC 100V-300V
  • Weight：0-10Kg
  • Installation：Direct Connected
  • Customized：Customized
  • Equivalent Mode：Serial, Parallel

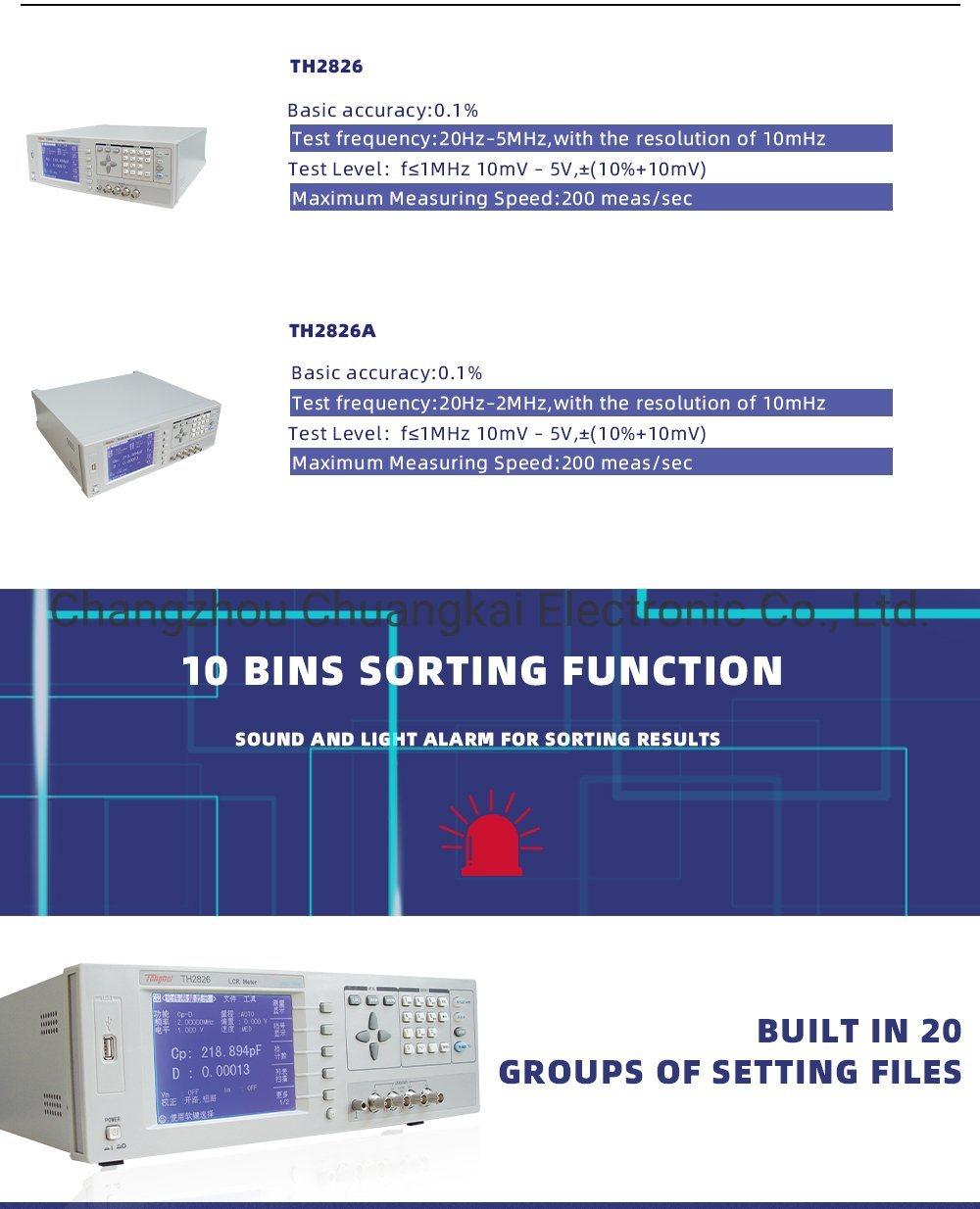

  • Comparator Function：10 Bins and Bin Counters
  • Ranging Mode：Auto and Hold
  • Calibration Function：Open,Shot ,Load
  • Product Name：Th2826A 2MHz Digital Lcr Bridge Meter Resistance T
  • Frequency：20Hz-2MHz with Resolution of 10MHz
  • Trigger Mode：Internal, Manual, External, Bus
  • Basic Accuracy：0.1%

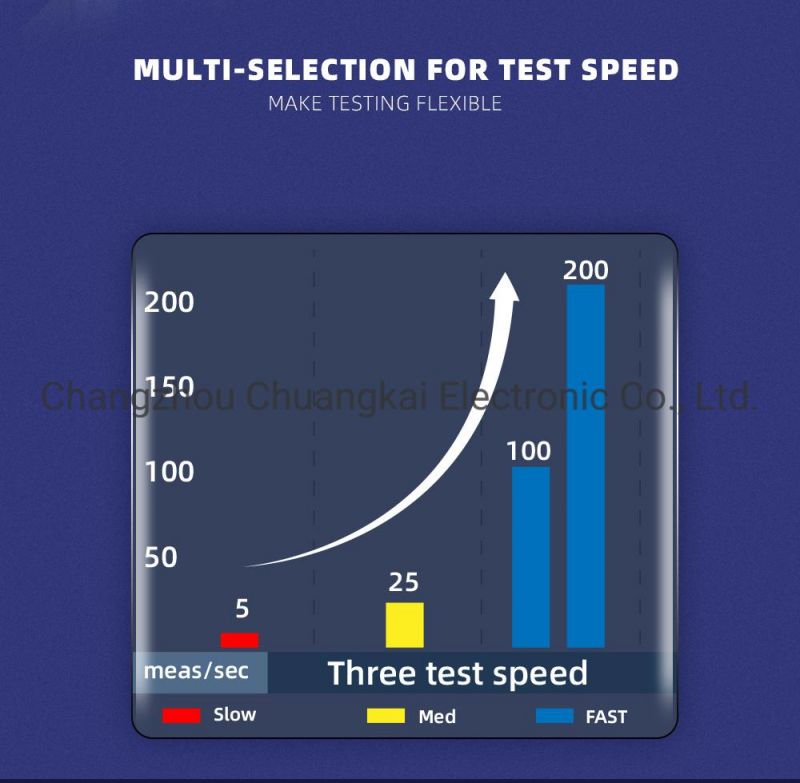

  • Measurement Speed：Fast: 200(F>30kHz),100(F>1kHz)Med: 25, Slow: 5
  • Power Supply：Voltage: 99V AC-121VAC,198V-242VAC
  • Transport Package：Carton
  • Specification：55x54x33cm
  • Trademark：CKT
  • Origin：China
  • HS Code：9030339000
  • Production Capacity：2000 Sets Per Month
  • Package size per unit product：55.00cm * 54.00cm * 33.00cm
  • Gross weight per unit product：10.000kg
  • Lead Time：10 days (1 - 1 set) To be negotiated ( > 1 set)

Description

Overview Product Description

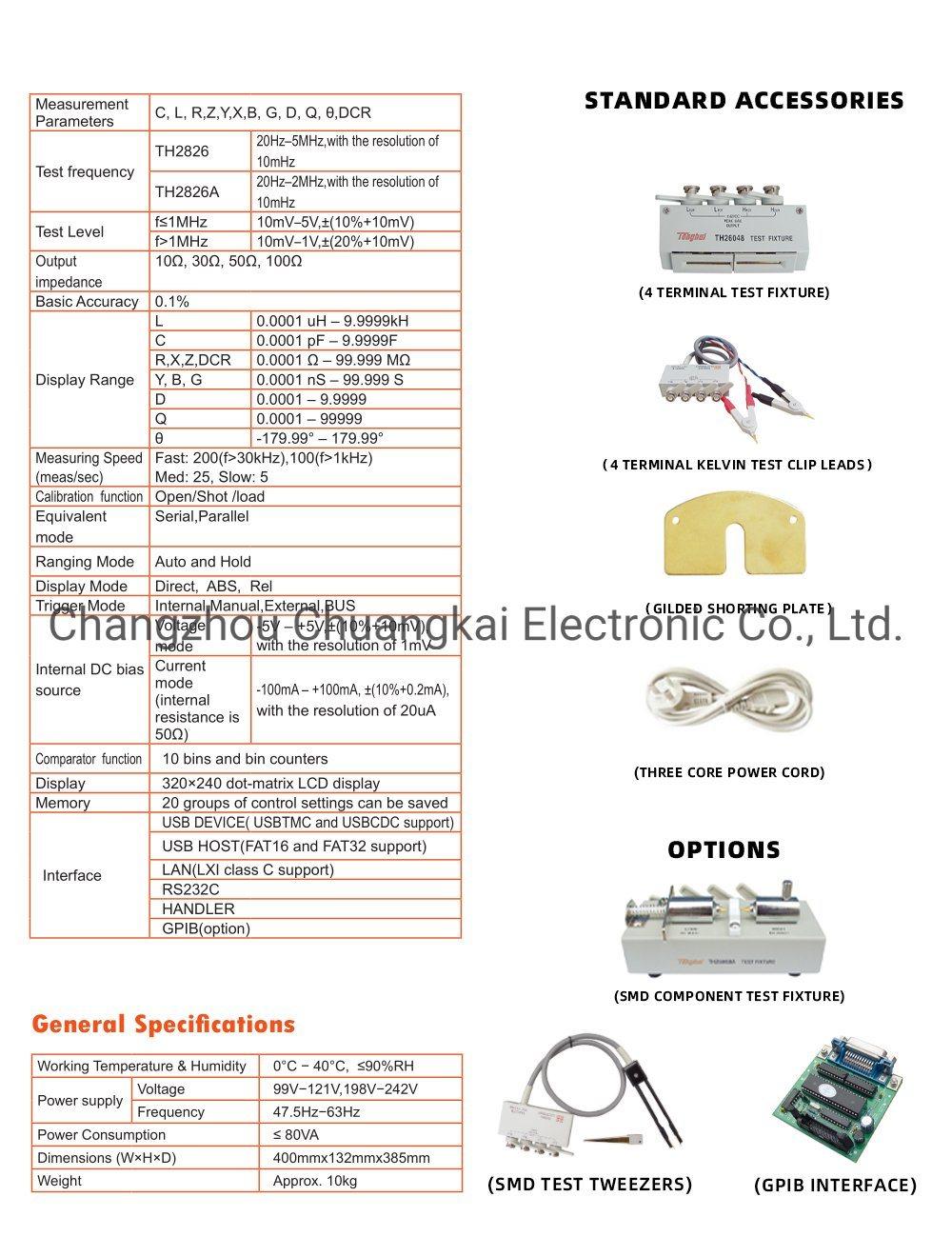

TH2826ATest frequency20Hz-2MHz with resolution of 10mHzMeasurement ParametersC, L, R,Z,Y,X,B, G, D, Q, θ, DCRTest Levelf≤1MHz10mV-5V,±(10%+10mV)f>1MHz10mV-1V,±(20%+10mV)Output impedance10Ω, 30Ω, 50Ω, 100ΩBasic Accuracy0.1%Display RangeL0.0001 uH - 9.9999kHC0.0001 pF - 9.9999FR,X,Z,DCR0.0001 Ω - 99.999 MΩY, B, G0.0001 nS - 99.999 SD0.0001 - 9.9999Q0.0001 - 99999θ-179.99° - 179.99°Measuring Speed(meas/sec)Fast: 200(f>30kHz),100(f>1kHz)Med: 25, Slow: 5Calibration  functionOpen/Shot /loadEquivalent ModeSerial, ParallelRanging ModeAuto and HoldDisplay ModeDirect,  ABS,  RelTrigger ModeInternal, Manual, External, BUSInternal DC bias sourceVoltagemode-5V - +5V,±(10%+10mV), with the resolution of 1mVCurrentmode(internal resistance is50Ω)-100mA - +100mA, ±(10%+0.2mA), with the resolution of 20uAComparator  functionbins and bin countersDisplay320×240 dot-matrix LCD displayMemorygroups of control settings can be savedInterfaceUSB DEVICE( USBTMC and USBCDC support)

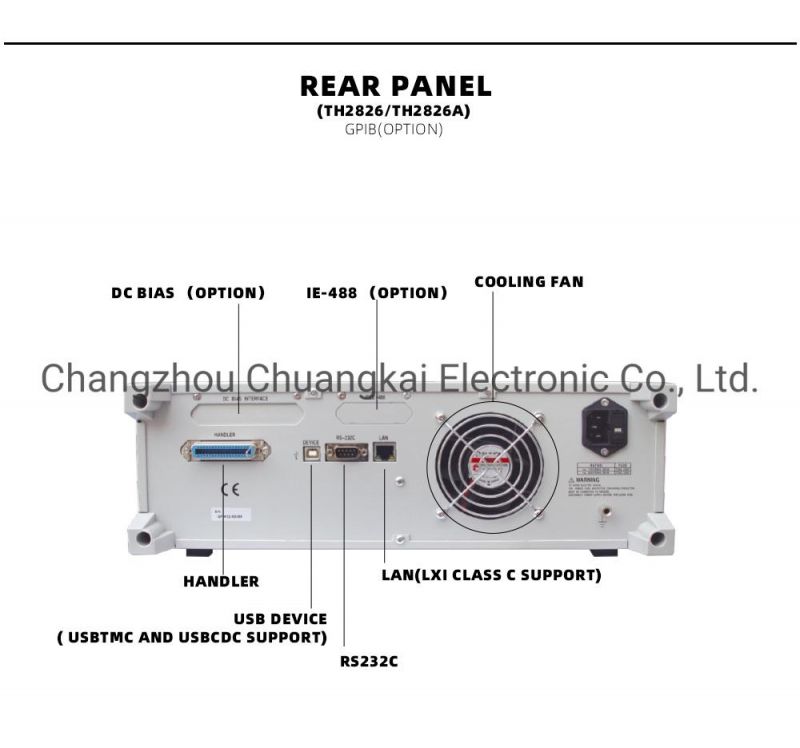

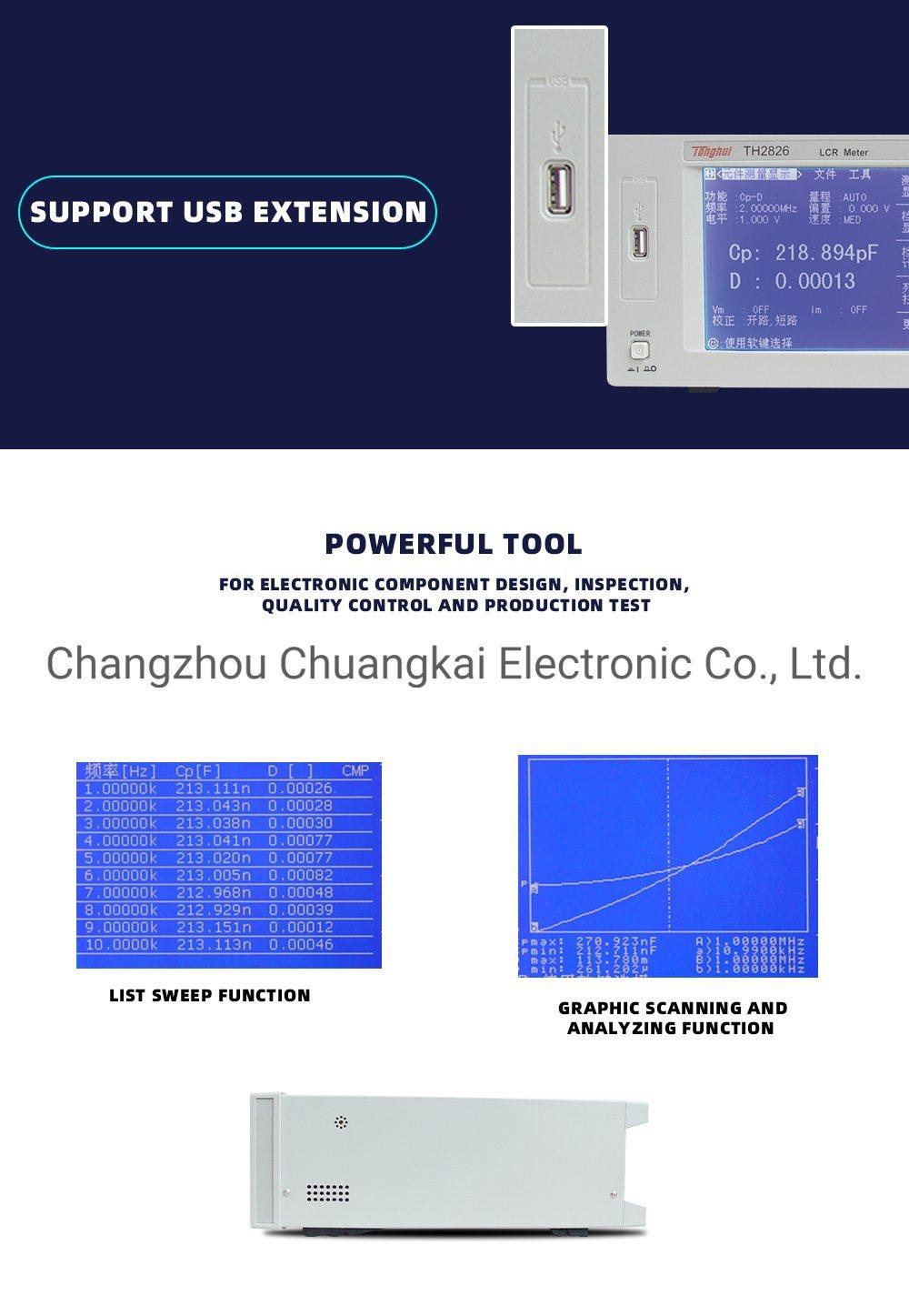

USB HOST(FAT16 and FAT32 support)
LAN(LXI class C support)
RS232C
HANDLER
GPIB(option)Working Temperature & Humidity0°C − 40°C,  ≤90%RHPower supplyVoltage99V−121V,198V−242VFrequency47.5Hz−63HzPower Consumption≤ 80VADimensions (W×H×D)400mmx132mmx385mmWeightApprox. 10kg Detailed Photos

Th2826A 2MHz Digital Lcr Bridge Meter Resistance Tester ESR Tester
Th2826A 2MHz Digital Lcr Bridge Meter Resistance Tester ESR Tester
Th2826A 2MHz Digital Lcr Bridge Meter Resistance Tester ESR Tester
Th2826A 2MHz Digital Lcr Bridge Meter Resistance Tester ESR Tester
Th2826A 2MHz Digital Lcr Bridge Meter Resistance Tester ESR Tester
Th2826A 2MHz Digital Lcr Bridge Meter Resistance Tester ESR Tester
Th2826A 2MHz Digital Lcr Bridge Meter Resistance Tester ESR Tester
Th2826A 2MHz Digital Lcr Bridge Meter Resistance Tester ESR Tester

Th2826A 2MHz Digital Lcr Bridge Meter Resistance Tester ESR Tester

Th2826A 2MHz Digital Lcr Bridge Meter Resistance Tester ESR TesterPackaging & Shipping

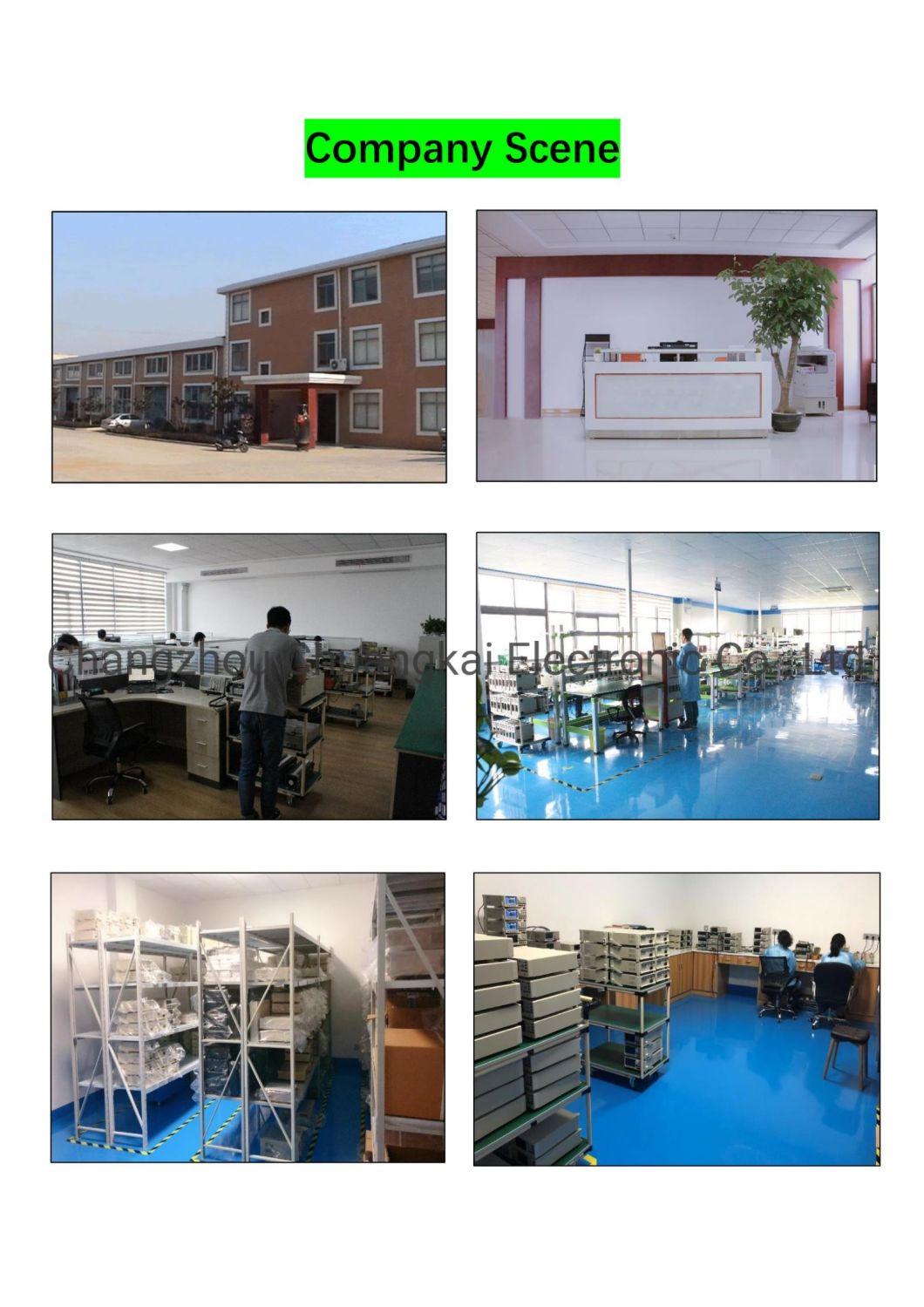

Company Profile

https://ckt2017.en.made-in-china.com/contact-info.html

Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.

FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.

Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.

Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.

Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.

Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.

For more questions, please feel free to send inquiries to us.
