• Model NO.：HR-150A
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Analogue Display
• Control：Manual Control
• Weight：85kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Start Test Power：98.07n(10kgf)
• Total Test Power：588.4n (60kgf), 980.7n (100kgf), 1471n (150kgf)
• Squeeze Head：Diamond Squeeze Heada=120o, R=0.2mm
• Steel Ball Squeeze Head Diameter：Is 1.5875mm
• The Max. Height of Sample：170mm
• out Size：510X212X730mm
• Net Weight：85kg
• Transport Package：Wooden Case
• Specification：510x212x730mm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. HR-150A Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Analogue Display Control Manual Control Weight 85kg Power Source AC380V Oil Cylinder Position Under Start Test Power 98.07n(10kgf) Total Test Power 588.4n (60kgf), 980.7n (100kgf), 1471n (150kgf) Squeeze Head Diamond Squeeze Heada=120o, R=0.2mm Steel Ball Squeeze Head Diameter Is 1.5875mm The Max. Height of Sample 170mm out Size 510X212X730mm Net Weight 85kg Transport Package Wooden Case Specification 510x212x730mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

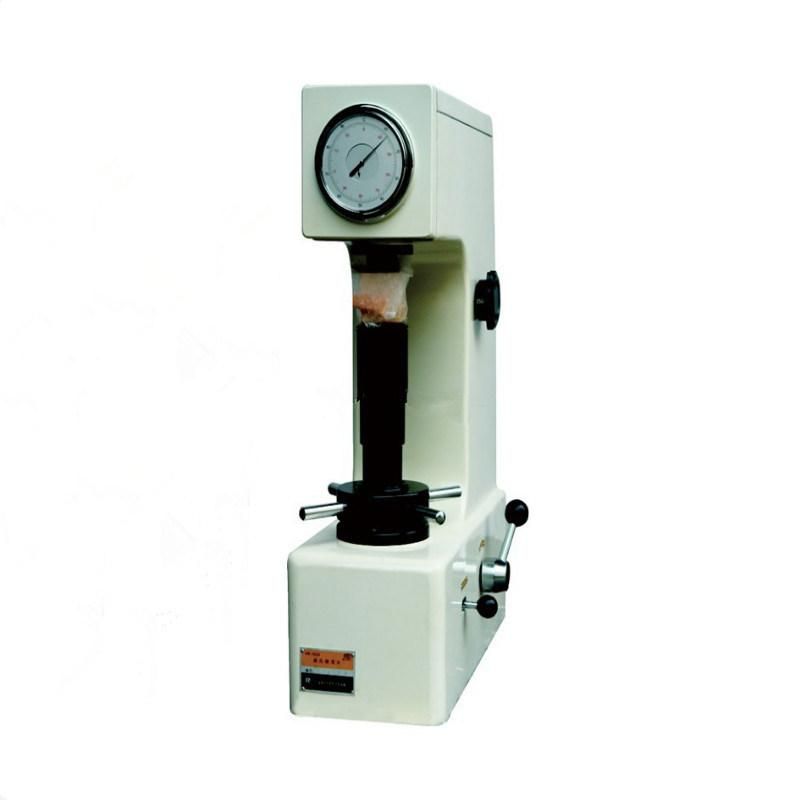

HR-150A Rockwell Hardness Tester

Application: This apparatus be easy operated, is one widely used Rockwell hardness testapparatus, can do Rockwell hardness test for ferrous metal and nonferrous metal.


Start test power	98.07N(10kgf)
Total test power	588.4N (60Kgf), 980.7N (100kgf), 1471N (150kgf)
Squeeze head	diamond squeeze heada=120o, R=0.2mm
Steel ball squeeze head diameter	is 1.5875mm
Display	Analogue display
The max. Height of sample	170mm
Out size	510X212X730mm
Net weight	85kg
