• Model NO.：XHJB634
• Trademark：XZH TEST
• Origin：China Xi′an
• HS Code：854320100
• Production Capacity：100 Pieces ,Year
• Package size per unit product：36.00cm * 28.00cm * 20.00cm
• Gross weight per unit product：50.000kg

Basic Info.

Model NO. XHJB634 Trademark XZH TEST Origin China Xi′an HS Code 854320100 Production Capacity 100 Pieces /Year

Packaging & Delivery

Package size per unit product 36.00cm * 28.00cm * 20.00cm Gross weight per unit product 50.000kg

Product Description

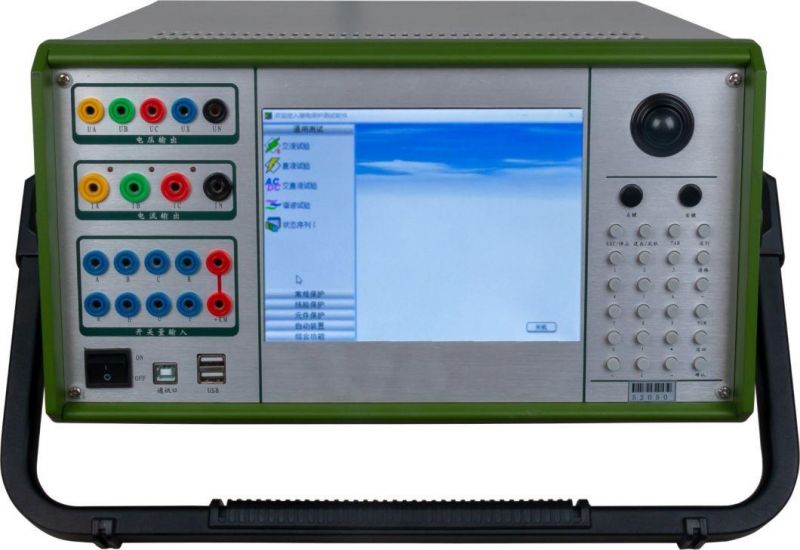

XHJB634 Relay Tester



Product Introduction

XHJB634 microcomputer relay protection calibrator is a new type of miniaturized microcomputer relay protection tester fully realized by modern advanced microelectronic technology.

Specification

AC current output

Phase current output (effective value)     0~40A,   Output Precision  0.2 degree

3 phase parallel current output (effective value)                0~120A

A Long-time Phase current                               10A

Maximum output power of Phase current                     450VA

Maximum output power of 3 parallel current                   900VA

Maximum Permitted work time of 3 parallel current             10S

Frequency range ( fundamental)                             20~1000Hz

Harmonic time                                             2~20

DC current output

Current output                                 0~±10A / phase,  0~±30A / 3 parallel

Output Precision                                          0.5 degree

AC voltage output

Phase voltage output (effective value)     0~120V   Output Precision   0.2 degree

Line voltage output (effective value)                         0~240V

Phase voltage / Line phase output power                    80VA / 100VA

Frequency range (fundamental)                            20~1000Hz

Harmonic time                                      1~20

DC voltage output

Phase voltage output range              0~±160V     Output Precision  0.5 degree

Line voltage output range                                  0~±320V

Phase voltage / Line phase output power                    70VA / 140VA

10 path digital input and 8 path digital output

Time measuring range            0.1ms ~ 9999s ,accuracy of measurement <0.1ms

Volume & weight                            400×360×160mm³ ,15kg
