• Model NO.：HMSLQ
• Standard：ISO
• Material：Alloy
• Power：220V
• Customized：Customized
• Model Type：Hmslq
• Nickname：Primary Current Injector
• Certificate：CE, SGS
• Calibration Report：Support Third Party Calibration Report
• Acceptance：Factory Release Acceptance or Remote-Video
• Can Support Temperature Rising Test：Yes
• Specfication Can Be Customized：Yes
• Transport Package：Wooden Box with Foam Inside
• Specification：1600(L) * 1260(W) * 1700mm (H)
• Trademark：hmdq
• Origin：Hubei, China(Mainland)
• HS Code：9030899090
• Production Capacity：200sets,Year

Basic Info.

Model NO. HMSLQ Standard ISO Material Alloy Power 220V Customized Customized Model Type Hmslq Nickname Primary Current Injector Certificate CE, SGS Calibration Report Support Third Party Calibration Report Acceptance Factory Release Acceptance or Remote-Video Can Support Temperature Rising Test Yes Specfication Can Be Customized Yes Transport Package Wooden Box with Foam Inside Specification 1600(L) * 1260(W) * 1700mm (H) Trademark hmdq Origin Hubei, China(Mainland) HS Code 9030899090 Production Capacity 200sets/Year

Product Description

3000A HMSLQ  Primary current injection tester for breaker testing equipments price

I. Overview
Primary current injection test set is a necessary equipment for all walks of life need large current place in electrical commissioning, used in power plants, substations, electrical manufacturing factory and scientific research laboratory, and other units, which belongs to the short-time or intermittent work system, HMSLQ series high current generator produced by our company has the characteristics of stable performance, convenient maintenance etc.

II. Product structure
The structure of the primary current test set is divided into three parts:Console and low voltage high current generator, electric induction voltage regulator.From the low voltage high current generator output wiring lead test products, through the low voltage high current generator on the current transformer and console on the ammeter, voltmeter, indicator, button to measure, monitor and operate

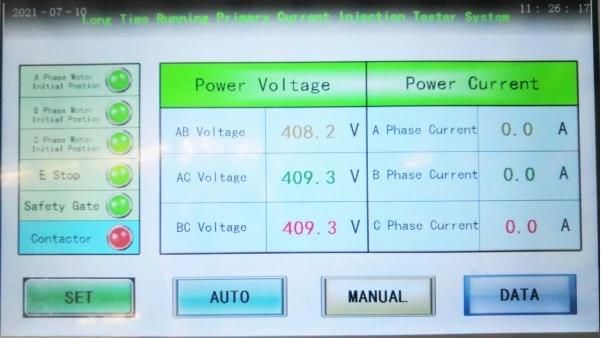

III. Home Page




IV.Main Components

1.  Intelligent electric automatic console   1set
2.  Electric inductive voltage regulator    1 sets ( 3 sets build-in)
3.  Primary current generator           1set( 3 sets build-in)

V.Main features

1.Electric console
1)The control screen accepts the IPC .
2) The sample signal panel is passive signal converter with multiple and Isolation Shield Protection. It can completely eliminate the destructive impact of high voltage breakdown square voltage and current on the control power supply.
3)Controller parameters can set to do the same batch when the power is off without needing resetting , permanent save!
4)Test result can save 50 records for recording and printing .

2. Electric inductive voltage regulator

1)The inductive voltage regulator adopts a carbon-free brush to isolate the induced output voltage

2)No corona no spark

 3) It has heat conduction heat dissipation sheet which can be for long-time running working.

3,Primary current generator
1)it accepts full-insulation structure ,T3 copper lead wire, cold-rolled silicon steel plate.
 2) The transformer use the double winding,low voltage input winding and high voltage output winding.
3) it installs the electrostatic shielding between the low voltage and high voltage, the low voltage and iron core.
4) Magnetic coupling between high voltage winding  and low voltage  winding, no electrical connection.

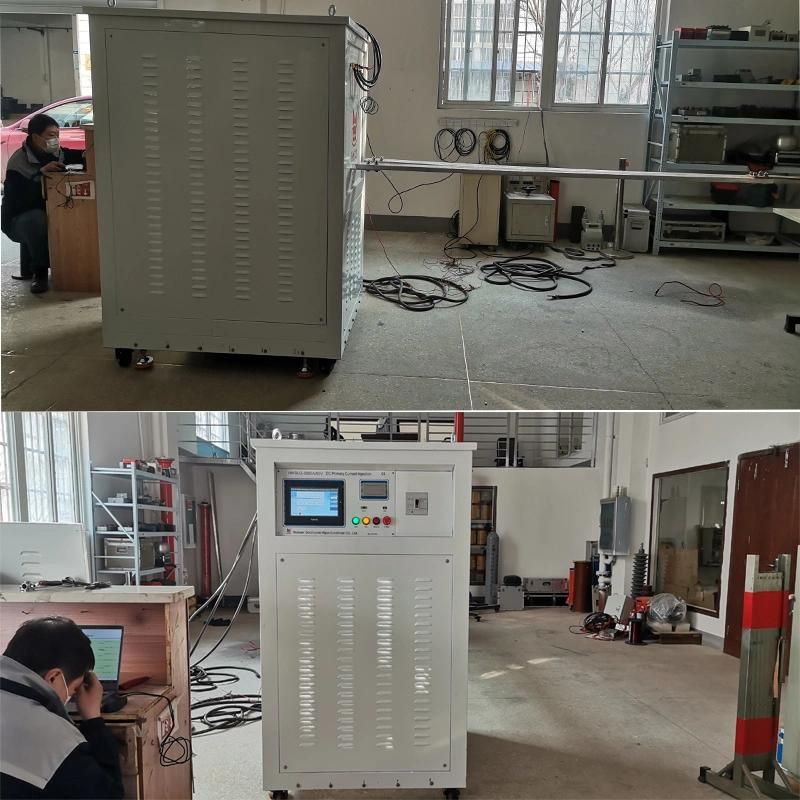

VI. Details photos.

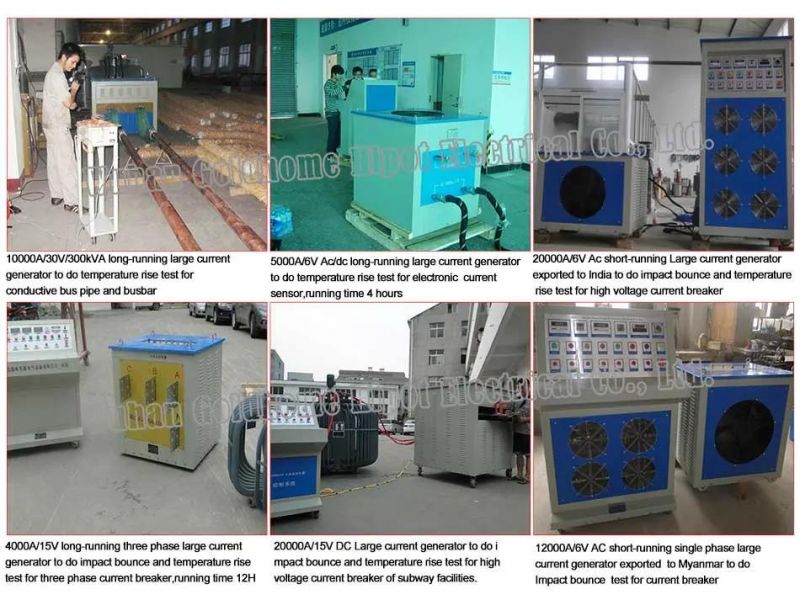

VII. Applicated case
