• Model NO.：ZH-SH-120
• Corrosion Test：Cass, Aass, Nss Optional
• Spray Type：Continuous , Periodic Spraying
• Power：Electronic
• Warranty：12 Months
• Transport Package：Wooden Case for Export
• Specification：Customization available
• Trademark：Sailham
• Origin：Guangdong, China
• HS Code：8479899990
• Production Capacity：5000sets,Year

ModelZH-SH-60ZH-SH-90ZH-SH-120ZH-SH-160ZH-SH-200Internal Dimension WxHxD (mm)600x450x400900x600x5001200x800x5001600x800x5002000x1000x500External Dimension WxHxD (mm)1100x600x12001400x950x12001900x1300x14002300x1300x14002700x1500x1500Lab TemperatureSaline test (NSS ACSS)   35±1 °C  ;Corrosion Test (CASS)50±1 °C Pressure Bucket TemperatureSaline test method (NSS ACSS) 47±1 °C / Corrosion Test (CASS)63±1 °CLab Capacity(L)110 2705008001500Saline Capacity(L)15 25404040Saline Concentration5% concentration of NaCl, or every Liter 5%  NaCl add 0.26g CuCl2H2OExter./Inter.MaterialP.V.C & P.PCompressed Air Pressure(Kgf)1.0~6.0 Spray Volume1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)Spray Form Continuous Spraying or Programmable SprayingPowerAC220V , lines15A Weight(Kg)6580120160200SystemSalt Spray VehicleAir+acid(base)liquidHeatingSUS#304 & #316stainless steel heater+taflonControllerHydrometer,salinomerer,fog collector,glassbarSafety DevicesOverheating prevention circult-breaker,dehydration and
overheating prevention mechanism,breakdown indicator lightPower Source(K.W.)AC 1Ψ 220V 60/50Hz1.11.53.55.57

Features
High performance and quiet operation (65 dBa)
Space-saving footprint, designed for flush installation to wall
Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") diameter cable port on left, with flexible silicone plug(special requirement)
Three levels of overheat protection, plus overcool protection
Easy lift-off service panels, electrical access on left
Detachable eight-foot power cord with plug
Direct water supply connection for continuous operation (supply tank optional)
ETL listed electrical panel conforming to UL 508A

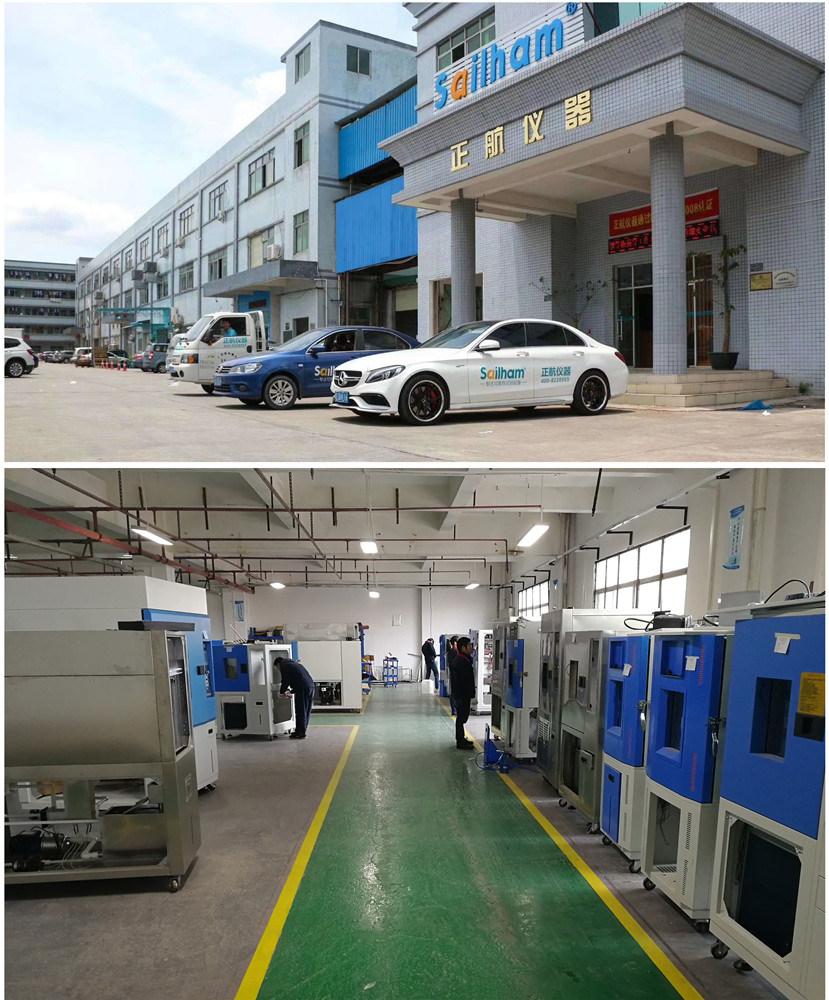

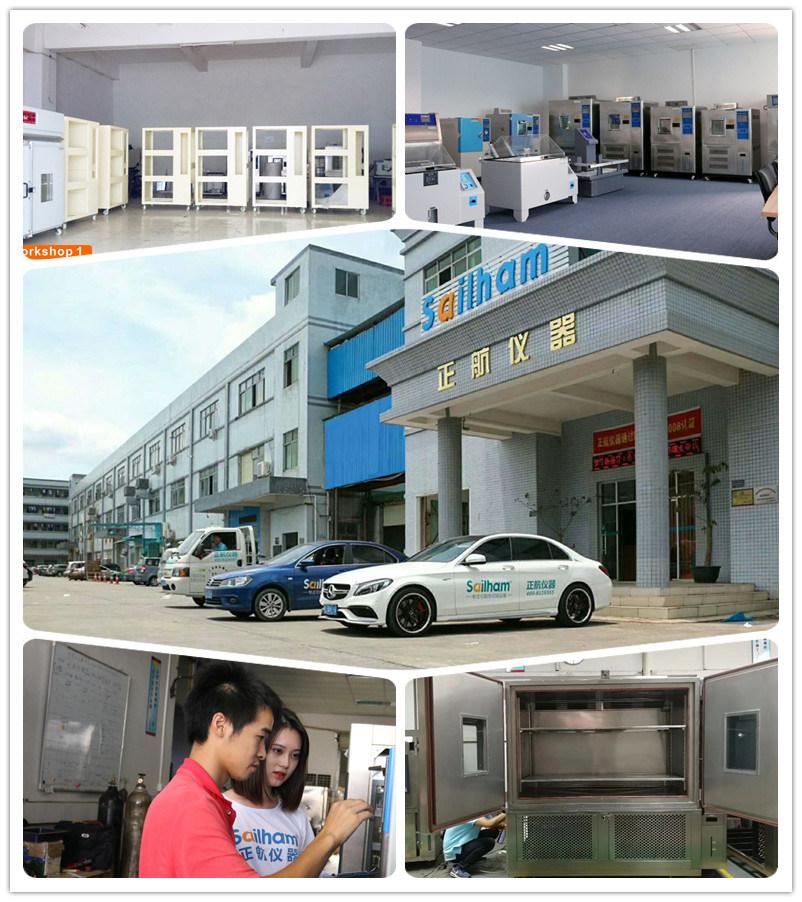

Our Factory

Honorary Certifications







Exhibitions and customers visit our factory





FAQ

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.



Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard High and Low Temperature Alternating Damp Heat Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.



Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory



Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.



Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.



Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
