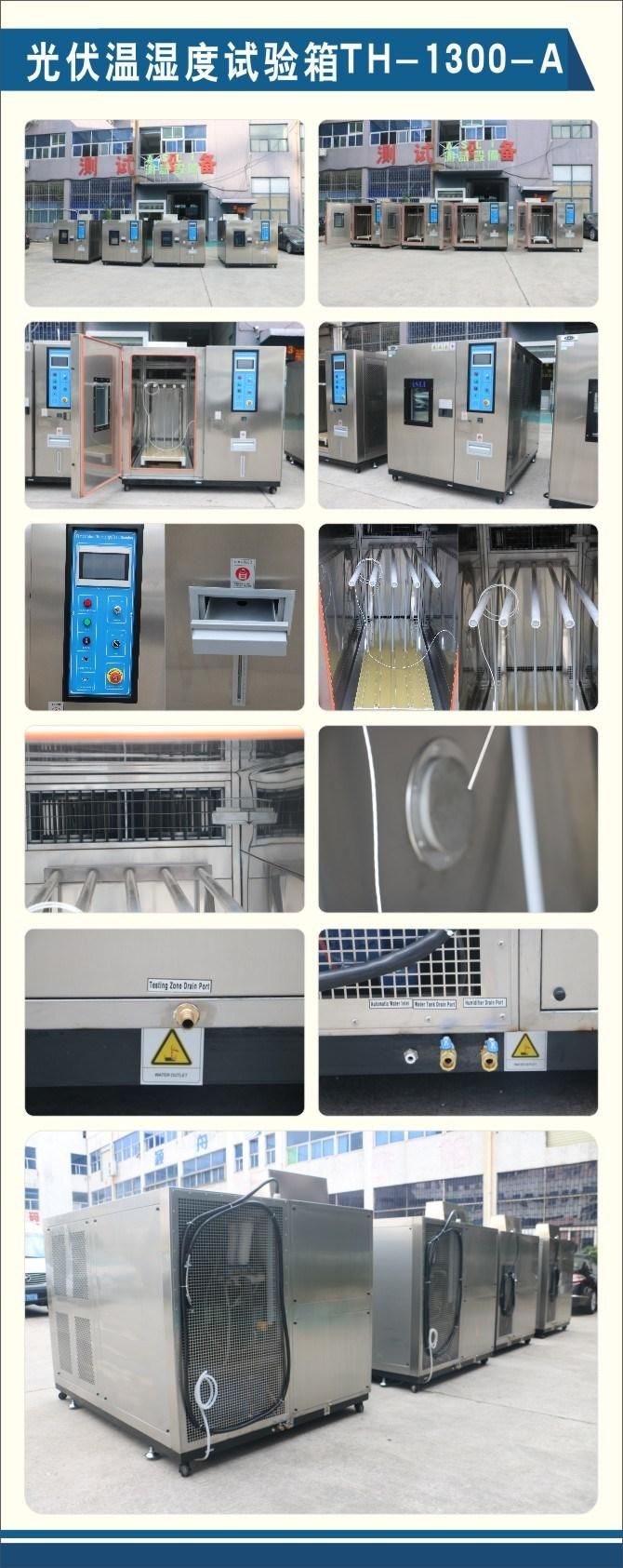

IEC 61215 (MQT 11 12 13) Climatic Solar Panels and Photovoltaic Modules Test Chambers

Ai Si Li (China) Test Equipment Co., Limited
  • Internal Dimension (W*H*D)：1000*1000*1000mm
  • External Dimension(W*H*D)：1600*1800*1300mm
  • Temperature Range：-40c to 150c
  • Humidity Range：20-98% R.H. or Lab Humidity
  • Test Standard：JIS, ISO, IEC 60529
  • Transport Package：Export Standard Plywood

Base Info

  • Model NO.：TH series
  • Specification：CE certificated
  • Trademark：ASLi
  • Origin：Guangdong, China
  • HS Code：9031809090
  • Production Capacity：50set,Month

Description

Temp. Cycle CompareHigh Temp. High HumidityLow TempTemp. Change RateCycle No.IEC6121585ºC/85±5%(20h)-40ºC(0.5~4h)High Temp. Rise& Fall(100ºC/h)
Low Temp. Rise& Fall(200ºC/h)10GB953585ºC/85±5%(20h)-40ºC(0.5~4h)High Temp. Rise& Fall(100ºC/h)
Low Temp. Rise& Fall(200ºC/h)10IEC6164685ºC/85±5%(20h)-40ºC(0.5~4h)High Temp. Rise& Fall(100ºC/h)
Low Temp. Rise& Fall(200ºC/h)10GB1891185ºC/85±5%(20h)-40ºC(0.5~4h)High Temp. Rise& Fall(100ºC/h)
Low Temp. Rise& Fall(200ºC/h)10UL170385ºC/85±2.5%(20h)-40ºC(0.5~4h)High Temp. Rise& Fall(100ºC/h)
Low Temp. Rise& Fall(200ºC/h)10IEC6210885ºC/85±2.5%(20h)-40ºC(0.5~4h)High Temp. Rise& Fall(100ºC/h)
Low Temp. Rise& Fall(200ºC/h)20
40IEC 61215 (MQT 11 12 13) Climatic Solar Panels and Photovoltaic Modules Test Chambers

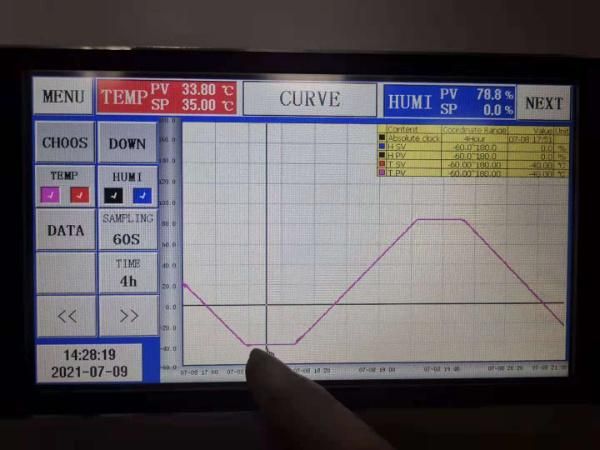

Thermal cycle test;
Test points:low temperature :-40ºC,high temperature:85ºC
Temperature falling/rising speed rate:100ºC/Hour=1.67ºC/min
6 hours per cycle, testing last 50~200 cycles
Total testing time last 300 to 1200 hours (12.5 to 50 days )
 IEC 61215 (MQT 11 12 13) Climatic Solar Panels and Photovoltaic Modules Test ChambersTemp. Cycle CompareLow TempHigh TempTemp Change Rate ºC/hDwell TimeCycle No.IEC61215-40±2ºC85±2ºCMax. 100ºC/hMin.10min50, 200GB9535-40±2ºC85±2ºCMax.100ºC/hMin.10min50, 200IEC61646-40±2ºC85±2ºCMax.100ºC/hMin.10min50, 200GB18911-40±2ºC85±2ºCMax.100ºC/hMin.10min50, 200UL1703-40±2ºC90±2ºCMax.120ºC/h30~105min200IEC62108-40±2ºC65ºC,85ºC,110ºC10cycle/day10min500,1000,2000IEC62108-40ºC65ºC,85ºC,110ºC18cycle/day10min500,1000,2000IEEE1513-40ºC90ºC,110ºC0.9~7.5ºC/minMin.10min250,500IEEE1513-40ºC90ºC,110ºCMax.100ºC/hMin.10min100,200IEEE1513-40ºC60ºC,90ºCMax.100ºC/hMin.10min50,200
After-sale service:
Feedback within 2 hours, and offer solution in 48 hours and help to solve the problems.

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.Walk in stability test chamber  is our star products , and we had obtained the CE certification for this machine.
 IEC 61215 (MQT 11 12 13) Climatic Solar Panels and Photovoltaic Modules Test Chambers
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
