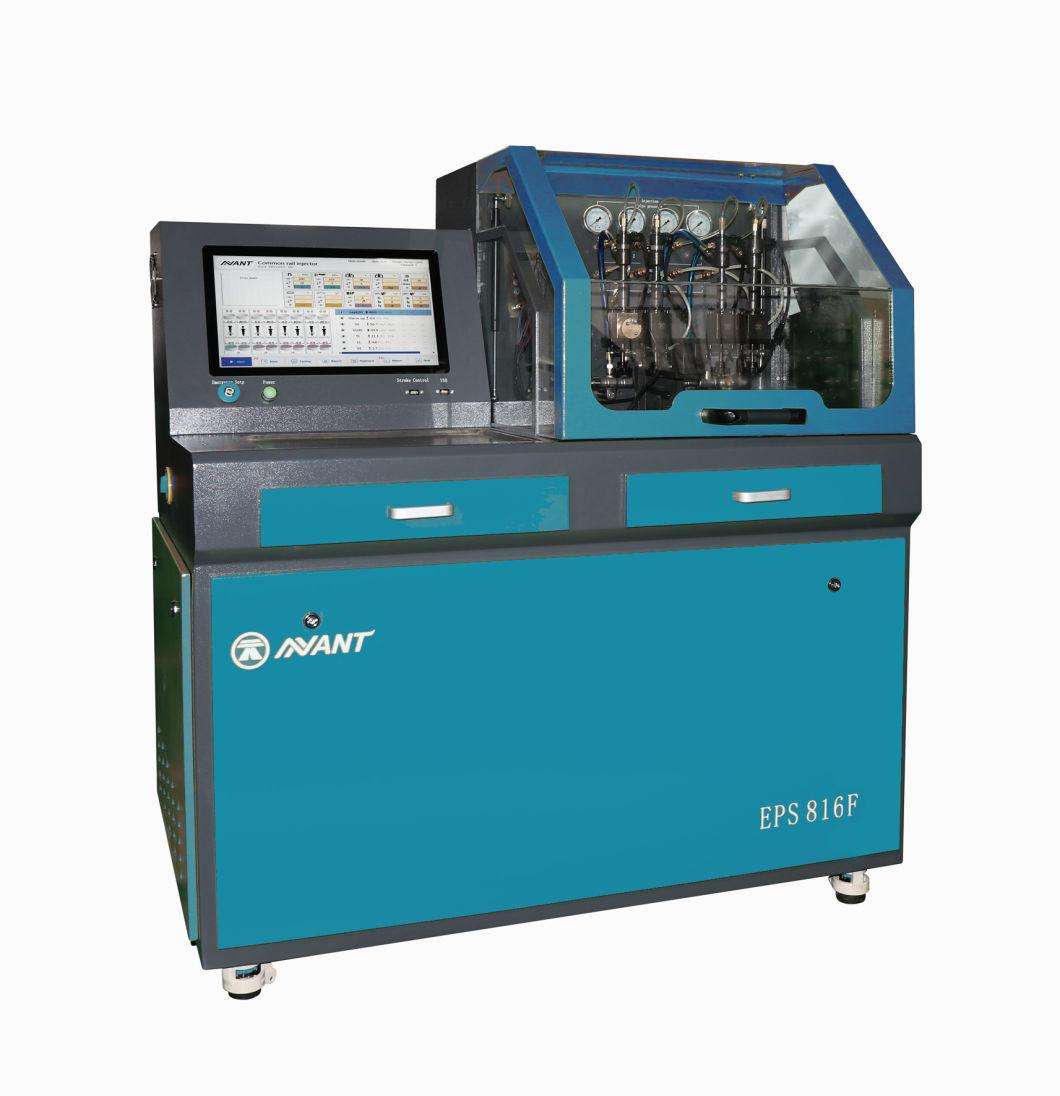

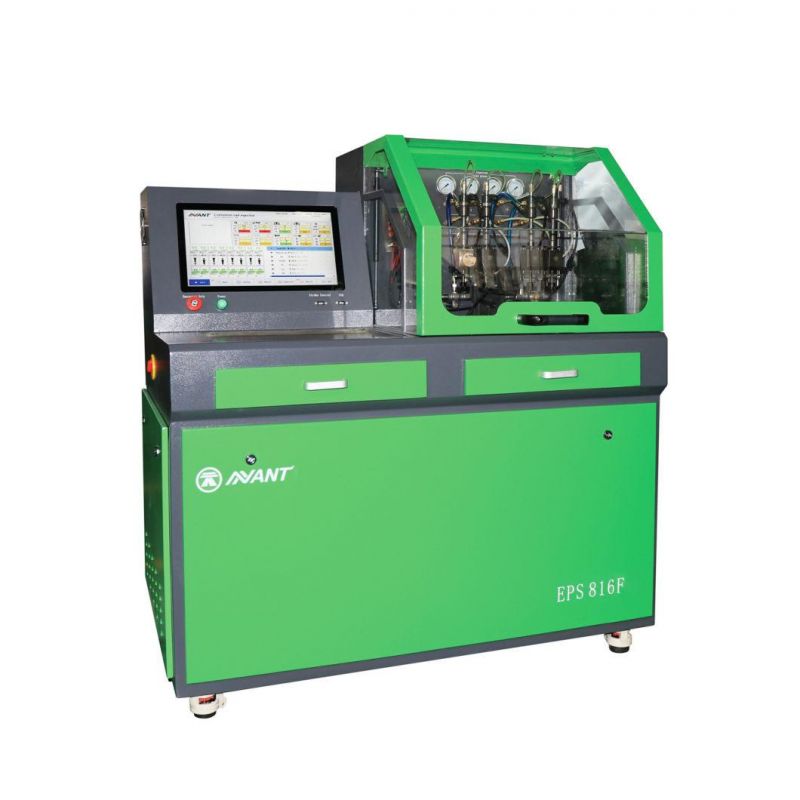

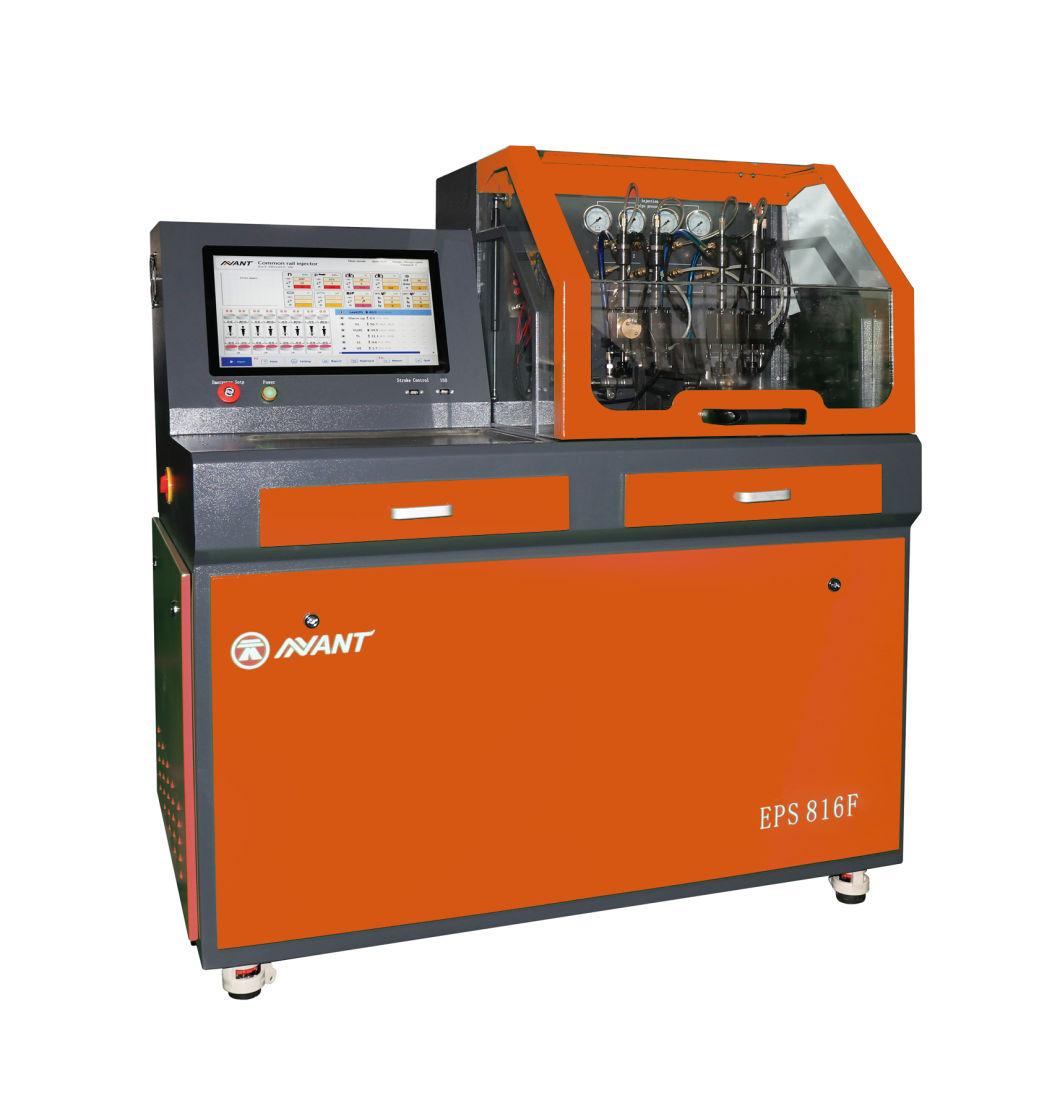

• Model NO.：EPS816F
• Transport Package：Plywood Case (Standard Export Package)
• Specification：Size: 130cmx87cmxl 50cm
• Trademark：NANT
• Origin：China
• HS Code：9031200090
• Production Capacity：100 Set,Sets Per Month

Parameter:

1.Size:130cmx87cmxl 50cm (L*W*H)

2.Stainless steel fuel tank with industrial air conditioner to control temperature 40 ± 2 °C circularly

3.Original Germany high precision flow sensor

4.Equip original Bosch DRV, pressure sensor (0-2600bar)

5.Include DRVZ fuel injection cooling treatment device

6.Include Oil circuit emptying treatment device

7.You can set the injection current curve by yourselves

8.The system includes original fuel injector current curve and data

9.Main motor power 5.5KW, three phases 380V 60HZ.Optional three phases 220V 60HZ, two phases 220V/60HZ in convenient for the different need of power supply in different countries


System advantage:


1. Industrial computer system: Full automatic operation, high speed operation and stable performance

2.Original Bosch test bench database. Test accuracy similar with the world-leading test bench

3.Powerful database: include more than 1,000 kinds of Bosch, Delphi, Denso, Siemens injector plan, and test plan could be updated free of charge

4.The operator can choose to test step by step or continuous test

5.The operator can set injection time and injection pressure during testing

6.The operator can choose testing results automatically judged by computer system or judge it by yourself

7.Injector database management: edit, save, revise and delete

8.Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface, which is proper for global using all around the world

9.Database remote one click upgrade



Optional function:

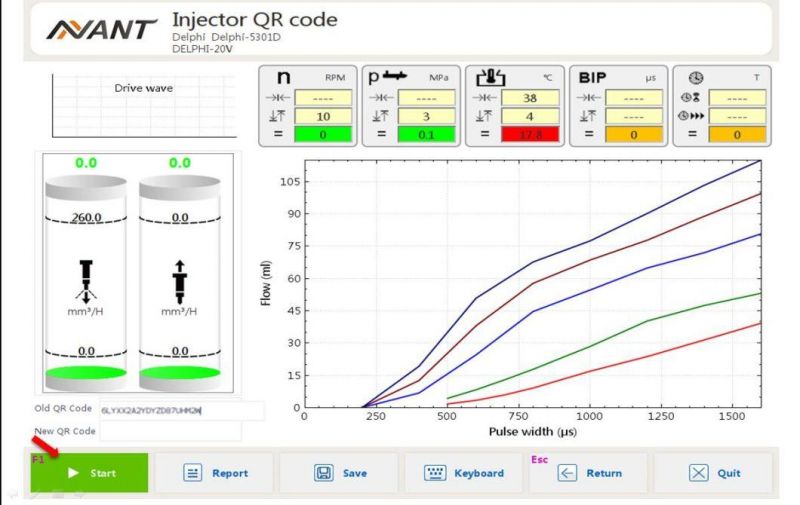

1. Generate IMA code for Denso Delphi injector
2. Fuel injection response time test

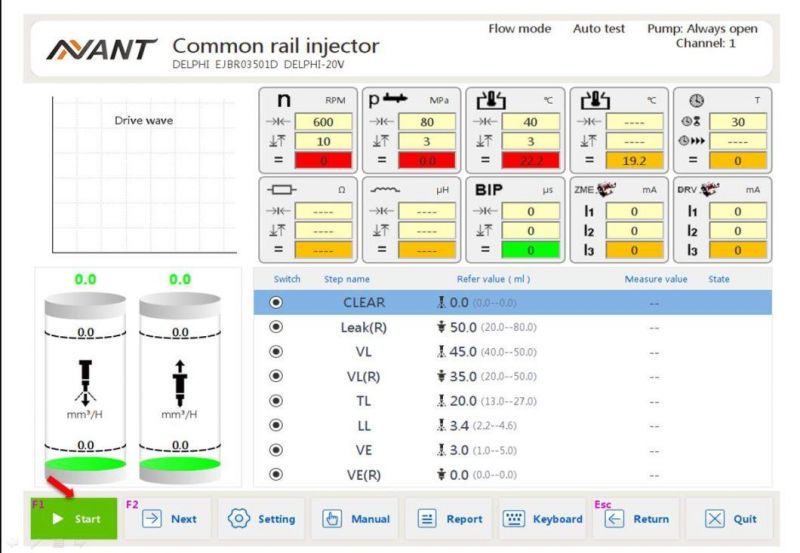

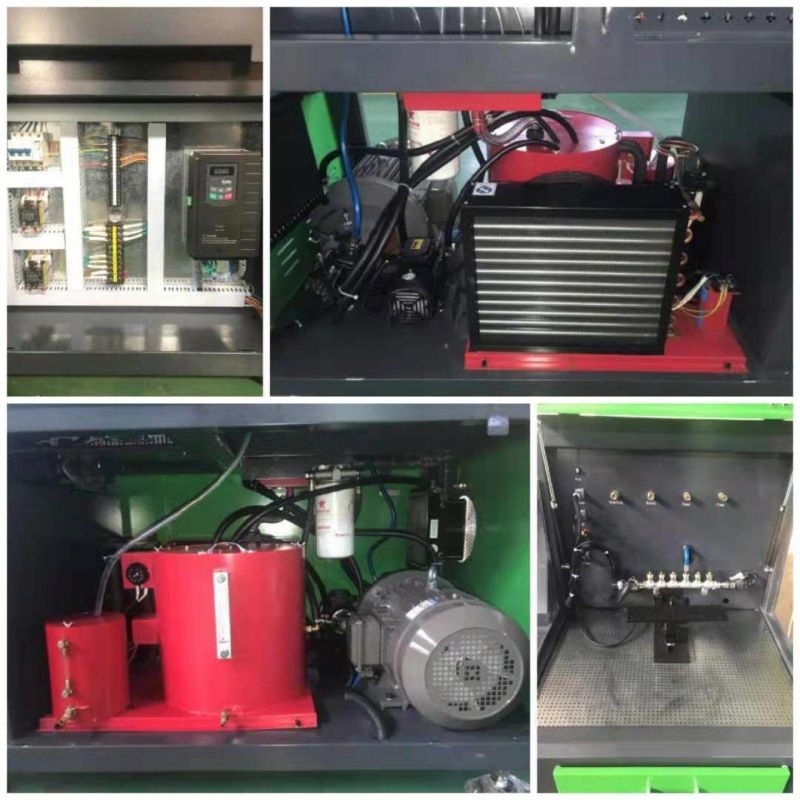

DETAILS of Instruction (partly):

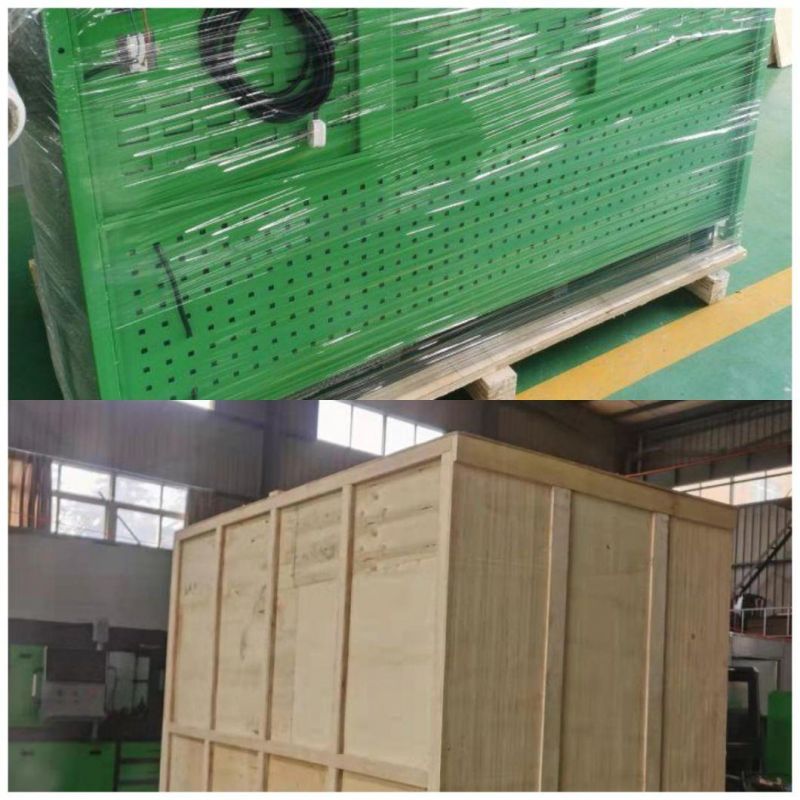

Packing and shipping:

Some Customers Visit to Us:

International Communication Moments:


FACTORY Information:

Nanyang NanTai Experimental Equipment Co.,Ltd is a joint-stock enterprise that produces common rail test bench, traditional diesel fuel injection pump test bench, Nozzle Tester, and sells spares parts for repairing variety of electronic diesel injection systems to serve the automobile aftermarket all over the world.
The company pursues high standard manufacturing and qualified products. All the products have passed the quality system certification of ISO9001:2008 & CE certificate and entered European market. Depending on the stable and lasting capabilities, our products are well known to international market such as Russia, Mongolia, Bulgaria ,Albania, Argentina, South Africa, Germany, Romania, Ukraine, Haiti, Iraq, Britain, Brazil, Malaysia and etc
FAQ1. Who are we?
We are based in Henan, China, start from 2001,sell to South Asia(7.69%),Southern Europe(7.69%),Northern Europe(7.69%),Central America(7.69%),Western Europe(7.69%),Eastern Asia(7.69%),Mid East(7.69%),Oceania(7.69%),Africa(7.69%),Southeast Asia(7.69%),Eastern Europe(7.69%),South America(7.69%),North America(7.69%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you get from us?
High quality products Test Bench,diesel,common rail injector,diesel tester, and professional after-sales service from RD dept. forever.

4. Why should choose us?
Nanyang Nantai Test Equipment Co., Ltd., founded in 1998, is a professional engaged in the high pressure common rail diesel fuel injection pump test bench, the R & D and production of joint-stock enterprises, injector test equipment...

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Russian
