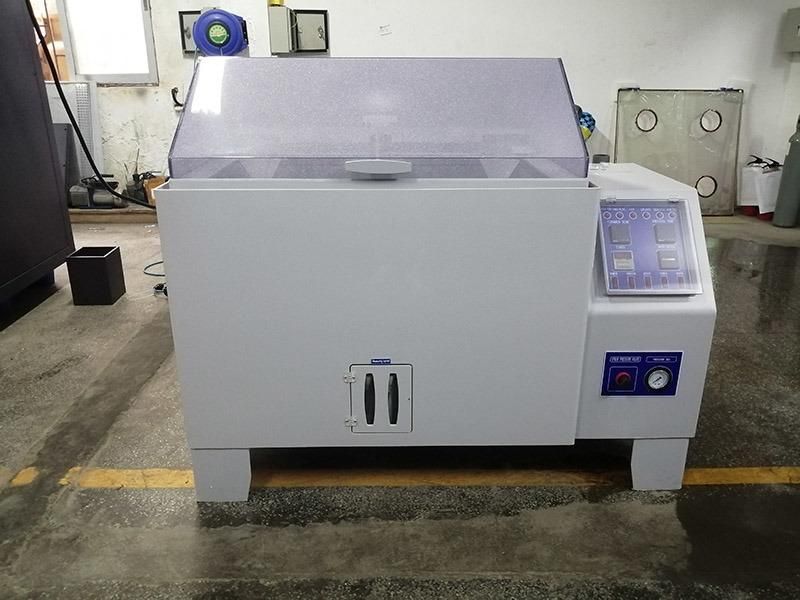

Industrial Salt Spray Corrosion Resistance Climate Test Chamber Machine

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Salt Spray Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：YSST-600
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC220V; AC380V
  • Oil Cylinder Position：N,a
  • Inner Chamebr Size W*H*D：120*50*100cm
  • External Chamber Size W*H*D：170*95*115cm
  • Brine pH：6.5-7.2
  • pH Value of Copper Acetate：3.0-3.2
  • Material：P.V.C&P.P
  • Spray System：Air+Acid(Base)Liquid
  • Heating：Stainless Steel Heater
  • Controller：Digital Electronic Controller
  • Spray Volume：0.5-3.0( M,80cm,Hr)
  • Temperature：Rt~50 Degrees, +,-0.5degrees
  • Transport Package：Strong Wooden Case
  • Specification：CE, ISO, TUV, SGS Certificate
  • Trademark：Yuanyao
  • Origin：Guangdong, China
  • HS Code：9024800000
  • Production Capacity：100 Sets,Month

Description

ModelYSST-108YSST-270Inner chamber size W×H×D(cm)60×45×4090×60×50External chamber size W×H×D(cm)107×58×103138×80×115Temperature rangeInside chamber TemperatureRT~50ºC,±0.5ºCAir saturated bucketRT~63ºC,±0.5ºCTemperatureRT~50ºC,±0.5ºCSaturated barrel air pressure (kg/m)0.8~2.0Falling fog amount (m/80/hr)0.5~3.0PHBrine PH6.5~7.2PH value of Copper acetate3.0~3.2MaterialExternal chamberPVCInner chamberPVCSystemSpray systemAir acid (base) liquidHeating systemSUS#304 Stainless steel high-speed heaterControl systemPush-button digital display controller+timer+SSR+PIDOther componentsHydrometer,salinity meter,mist collector,glass stripSafety devicesOverheat protection circuit breaker,dehydration and overheat prevention mechanism,overload indicatorPower supplyAC 1ψ 220V 50/60HzCustomization serviceNon-standard or special requirements are all welcome

Industrial Salt Spray Corrosion Resistance Climate Test Chamber Machine
Industrial Salt Spray Corrosion Resistance Climate Test Chamber Machine










Besides Industrial Salt Spray Corrosion Resistance Climate Test Machine, our business range also covers:

Temperature humidity chamber, Thermal shock chamber, Walk-in stability chamber, Fast change rate temperature chamber, Ozone aging test chamber, Industrial hot air oven, Dustfree hot oven, Rain spray test chamber, Dust test chamber, Automatic glue dispensing machine, Climate and vibration combined chamber, Temperature humidity control cabinet, Burn-in aging test oven, Steam aging test chamber, Ventilation aging test chamber, Vibration tester, Tensile tester, Drop tester, etc.
Industrial Salt Spray Corrosion Resistance Climate Test Chamber Machine


Company profile

Industrial Salt Spray Corrosion Resistance Climate Test Chamber Machine
Industrial Salt Spray Corrosion Resistance Climate Test Chamber Machine
Industrial Salt Spray Corrosion Resistance Climate Test Chamber Machine
Industrial Salt Spray Corrosion Resistance Climate Test Chamber Machine
Industrial Salt Spray Corrosion Resistance Climate Test Chamber Machine
Industrial Salt Spray Corrosion Resistance Climate Test Chamber Machine
Industrial Salt Spray Corrosion Resistance Climate Test Chamber Machine


If you are interested in our products, please feel free to contact us.
